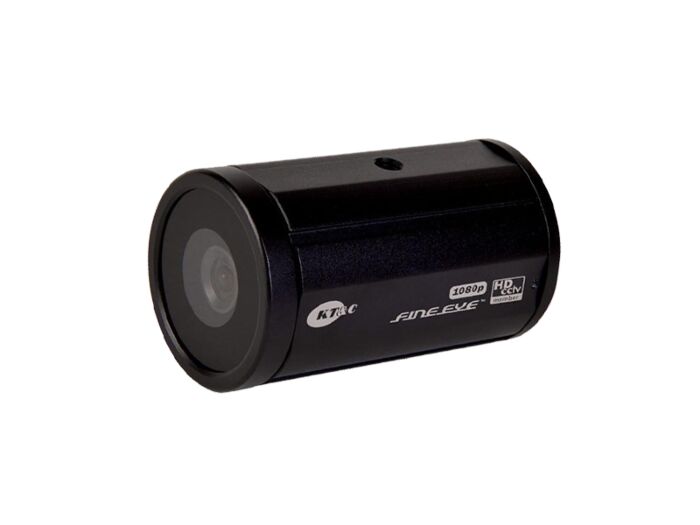

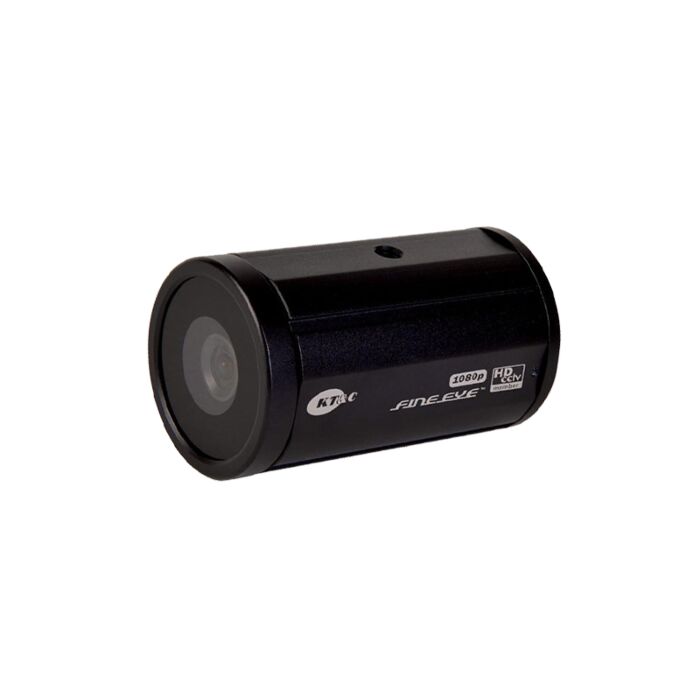

KT&C KPC-HDB450M HD Miniature Bullet Camera, 1/3” Panasonic CMOS, 2.1MP, Fixed Board Lens, Φ45 × 75mm (Discontinued)
*Product is Discontinued, Call For Replacement Options
Compact HD mini bullet camera with 2.1MP 1/3” Panasonic CMOS, 1080p output, 3D DNR, WDR/BLC, digital day/night, and fixed board lens. Ideal for industrial, security, and surveillance applications.
The KT&C KPC-HDB450M HD Miniature Bullet Camera is a compact yet powerful surveillance solution, delivering 1080p high-definition video with clarity and precision. Built with a 1/3” Panasonic CMOS sensor producing 2.1 megapixels, this camera supports multiple lens options (2.45mm, 3.6mm, and 6mm) with a fixed board lens design. Its 3D DNR, WDR, BLC, and digital day/night features provide excellent image quality even in challenging lighting conditions.
With a rugged, compact design measuring Φ45 × 75mm and weighing just 145g, the KPC-HDB450M is suitable for industrial, security, and surveillance applications, offering flexible installation options. Its intuitive OSD, digital zoom, privacy masking, and robust build make it ideal for monitoring critical areas in manufacturing, industrial facilities, and commercial spaces. Reliable performance is ensured across a wide operating temperature range from -10°C to 50°C.
Features:
- 2.1MP 1/3” Panasonic CMOS sensor
- Fixed board lens: 2.45mm / 3.6mm / 6mm
- HD output: 1080p@30fps, 720p@50/60fps
- 3D DNR, WDR, BLC for enhanced image quality
- Digital day/night functionality
- Built-in OSD with privacy masking (30 zones)
- Compact size: Φ45 × 75mm, weight: 145g
- Digital zoom 1x–20x, slow shutter support x2–x4
- Power: DC12V (±10%), Max. 160mA
Applications:
- Industrial inspections
- Security and surveillance
- Machine vision monitoring
- Factory floor observation
- Commercial and warehouse surveillance
| Image Sensor | 2.1 Megapixel, 1/2.8” SONY Exmor CMOS |
| Video Output Mode (HD-SDI) | 1080p@30fps, 1080p@25fps, 720p@60fps, 720p@50fps |
| Video Output Mode (TV Out) | NTSC / PAL selectable |
| Effective Pixels (H x V) | 1944 x 1092 |
| Unit Cell Size (H x V) | 2.75um x 2.75um |
| Lens | 2.45mm, 3.6mm, 6mm |
| Lens Type | Fixed Board Lens |
| S/N Ratio | More than 50dB |
| Min. Illumination | 0.1 Lux |
| Shutter Speed | Auto / Manual |
| Min. Exposure Time | 1/30,000sec |
| Day & Night | Digital Day & Night |
| IR LED | N/A |
| IP Rating | N/A |
| On-Screen Display (OSD) | Built-in |
| BLC | On/Off |
| DNR | 3D DNR |
| White Balance | Auto, Push-lock, Manual |
| Privacy Masking | 30 Zones |
| WDR | On/Off |
| Digital Zoom | 1x ~ 20x |
| Digital Slow Shutter | Off, x2, x3, x4 |
| Operating Temperature | 14°F ~ 122°F (-10°C ~ 50°C) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Humidity Operating | Less than 80% RH |
| Humidity Storage | Less than 95% RH |
| Power Consumption | DC12V (±10%), Max. 160mA |
| Dimension | Ø45 x 75mm |
| Weight | 145g |
