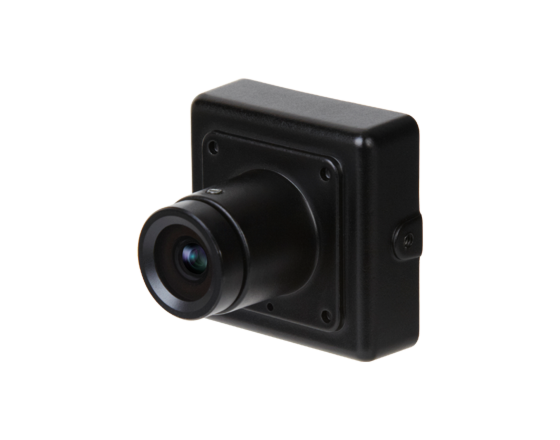

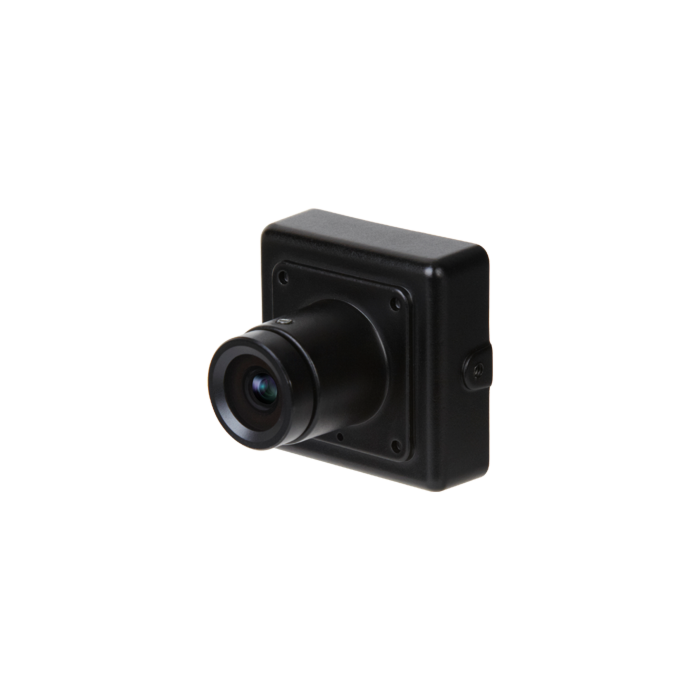

KT&C KTC-HMS7130-HMB 2.1MP 1080p Miniature Square Camera with 1/2.8” CMOS Sensor, 6-in-1 Output, 30×30mm

The KTC-HMS7130-HMB (KTCHMS7130HMB) is a compact, NDAA compliant 30×30mm mini square camera module engineered for embedded surveillance, OEM integration, and space-constrained security systems. Built around a 1/2.8″ progressive scan CMOS sensor, it delivers sharp Full HD 1080p video at 30fps (25fps) with excellent low-light performance and stable image processing.

This model supports 6-in-1 video output—HD-SDI / EX-SDI, AHD (AVI), TVI, CVI, and CVBS—ensuring broad compatibility with legacy and modern DVR platforms. A fixed 3.6mm F2.0 lens provides a wide 112.3° diagonal field of view, making it well suited for indoor monitoring, kiosks, access control systems, and discreet camera deployments.

Advanced image enhancement features such as Electronic Day & Night, Digital WDR, 3D DNR, and Defog ensure consistent image clarity in challenging lighting environments. OSD configuration is supported via UTC control or cable joystick, enabling fast system setup without additional hardware. An optional 4.3mm pinhole lens version is available for covert or specialty applications.

Features:

• NDAA Compliant mini square camera module
• 1/2.8″ Progressive Scan CMOS sensor
• Full HD 1080p @30/25fps video output
• 6-in-1 video output: HD-SDI / EX-SDI / AHD (AVI) / TVI / CVI / CVBS
• Fixed 3.6mm F2.0 lens with wide 112.3° FOV
• Electronic Day & Night (Auto / Color / B&W)
• Digital WDR, 3D DNR, Defog image enhancement
• UTC & joystick OSD control for easy configuration
• Ultra-compact 30×30mm form factor for embedded designs

Applications:

• Embedded OEM surveillance systems
• Access control and door monitoring cameras
• Kiosks, ATMs, and vending machines
• Discrete and covert camera installations
• Legacy DVR upgrades requiring multi-format output
• Space-constrained security enclosures
