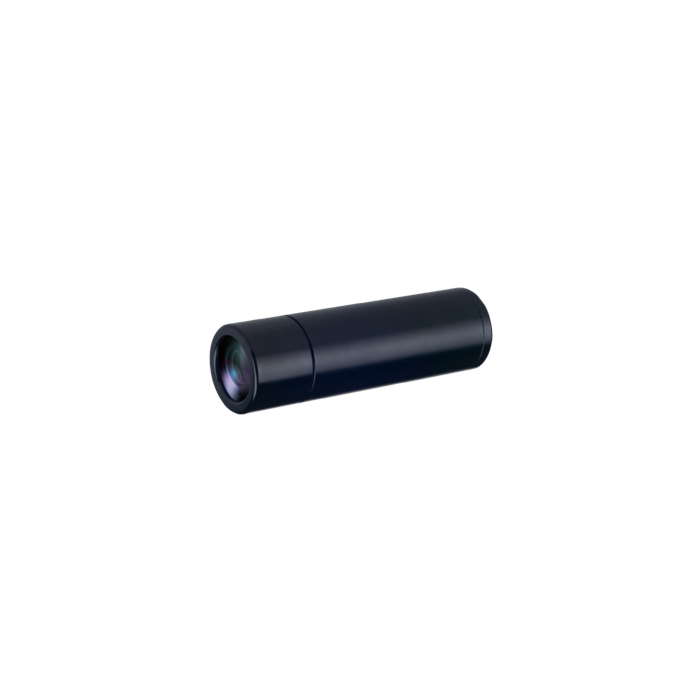

KT&C KTC-MB2302xWX HD-Analog Camera, 1/2.8” Sony STARVIS CMOS, 3.6mm Lens, 1080p, Φ23 × 77.75mm
The KTC-MB2302xWX is a compact, high-performance surveillance camera designed for professional security applications. NDAA-compliant, it ensures secure procurement and integration for U.S. government and enterprise projects. Equipped with a 1/2.8" Progressive Scan SONY STARVIS CMOS sensor, the camera delivers crisp 1080p Full HD video at 30/25fps across multiple analog outputs (TVI, CVI, AHD, CVBS) for versatile deployment.
Advanced imaging features include Electronic Day & Night, Wide Dynamic Range (WDR) up to 135.6dB, 3D Digital Noise Reduction (DNR), and Defog, providing clear images in challenging lighting conditions. A fixed 3.6mm lens offers a 112.3˚ diagonal field of view, while UTC support allows convenient OSD control via coaxial cable. Housed in a rugged IP67-rated enclosure, the camera is ideal for indoor and outdoor installations, performing reliably from -10°C to +50°C.
Features:
- NDAA-compliant for secure installations
- High-definition 1080p resolution
- Multi-format output for TVI, CVI, AHD, and CVBS
- Excellent low-light performance with STARVIS sensor
- Advanced image processing: WDR, 3D-DNR, Defog
- IP67-rated for weatherproof deployment
| Image Sensor | 1/2.8" Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1945(H) x 1097(V) |
| Max. Video Resolution | TVI, AHD, CVI: 1080p@30(25)fps / 720p@60(50)fps CVBS: 720p@30(25)fps |
| Lens | Fixed 3.6mm, F2.0 |
| Field of View | 112.3˚(D) x 93.7˚(H) x 49.3˚(V) |
| Minimum Illumination | 0.2 Lux (F2.0, AGC 33dB, DSS x2) |
| IR LEDs / Range | N/A |
| White Balance | AUTO / AUTO EXT / PUSH LOCK / MANUAL |
| WDR | OFF / BLC / HLC / WDR 135.6dB (4 zones selectable) |
| D-WDR | OFF / LOW / MIDDLE / HIGH |
| Electronic Shutter | Digital Slow Shutter (OFF~32x) AUTO / FLICKER / MANUAL (1/30(25) ~ 1/30,000) |
| AGC | OFF ~ 45dB |
| Day & Night | AUTO / COLOR / B&W (Electronic) |
| DNR | 3D-DNR (OFF / LOW / MIDDLE / HIGH) |
| Motion Detection | OFF / ON (4 Zones) |
| Privacy Masking | 16 Zones |
| Image Rotation | OFF / H-FLIP / V-FLIP / HV-FLIP |
| Defog | OFF / ON (AUTO / MANUAL) |
| Sharpness | 0 ~ 10 |
| OSD Control | Cable Joystick, UTC |
| Language | EN / RU / ES / DE / FR / PT / JP / KR |
| Video Output | AVI, TVI, CVI, CVBS |
| Ingress Protection | IP67 |
| Operating Temp. | -10°C ~ +50°C |
| Storage Temp. | -20°C ~ +60°C |
| Dimensions | Φ23 x 77.75mm (Waterproof type) |
| Weight | Approx. 74g |
| Power Source | 12VDC (±10%) |
| Power Consumption | Max. 110mA @12VDC |
