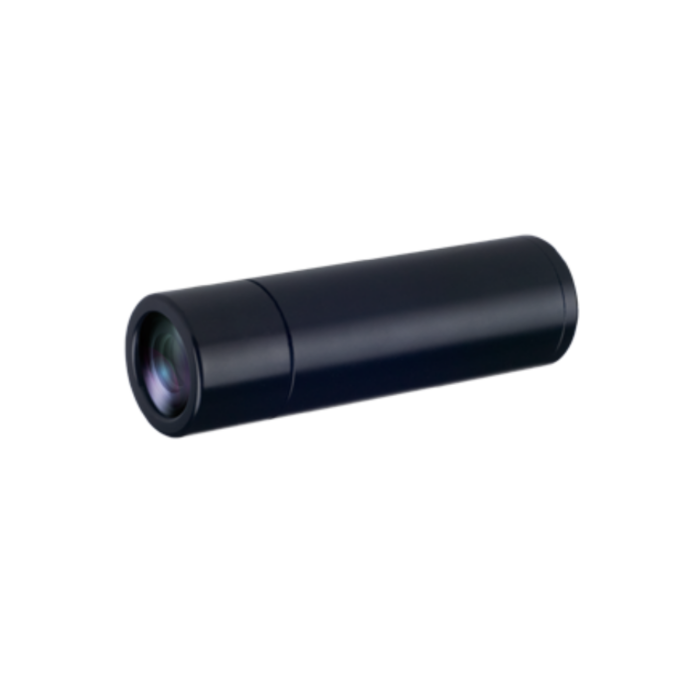

KT&C KTC-HMB7823-HWX HD/EX-SDI Bullet Camera, 1/2.8” SONY EXMOR R CMOS, 3.6mm Fixed Lens, Digital Day/Night, Φ23 × 77.5mm
SKU
KTC-HMB7823-HWX
Quick Overview
The KT&C KTC-HMB7823-HWX is a Φ23 × 77.5mm HD/EX-SDI bullet camera featuring a 1/2.8” SONY EXMOR R progressive CMOS sensor with 1080p video at 30/25 fps. NDAA compliant and equipped with a 3.6mm fixed lens, electronic day/night, 3D DNR, adjustable defog, and IP67 waterproof housing, it delivers high-quality imaging for security, surveillance, and industrial applications.
The NDAA compliant KT&C KTC-HMB7823-HWX is a compact Φ23 × 77.5mm HD/EX-SDI bullet camera with a 1/2.8” SONY EXMOR R progressive CMOS sensor delivering 1080p HD video at 30/25 fps. The camera features a 3.6mm fixed lens, electronic day/night, 3D DNR, adjustable defog, and IP67-rated waterproof housing, providing high-quality imaging for indoor and outdoor surveillance, security, and industrial monitoring.
Features:
- 2.1 Megapixel, 1/3″ SONY Exmor Color CMOS
- 1080p(1920x1080)@30(25)fps
- HD-SDI(100m@RG59)/EX-SDI1.0(300m@RG59)/CVBS
- Fixed lens 3.6mm
- Electronic Day&Night
- 3D DNR, Defog
- 23Φ Bullet camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1945(H) x 1097(V) |
| Max. Video Resolution | HD-SDI/EX-SDI1.0: 1080p@30fps(25fps) / 720p@60fps(50fps) / 720p@30fps(25fps) TV out: CVBS NTSC/PAL |
| Lens | Fixed Lens 3.6mm, F2.0, 112.3°(D) x 93.7°(H) x 49.3°(V) |
| Min. Illumination | 0.1Lux (F2.0, AGC 20dB, DSS x2) |
| IR LEDs | N/A |
| IR Range | N/A |
| White Balance | AUTO / PUSH LOCK / MANUAL |
| WDR (Wide Dynamic Range) | OFF / BLC / HLC |
| D-WDR (Digital WDR) | N/A |
| Electronic Shutter Speed | Digital Slow Shutter (OFF ~ x32) AUTO / FLICKER / MANUAL (1/30(25) ~ 1/30,000) |
| AGC (Auto Gain Control) | OFF ~ 42dB |
| Day & Night | AUTO / COLOR / B&W (Electronic D&N) |
| DNR (Digital Noise Reduction) | 3D-DNR (OFF / Low / Middle / High) |
| Motion Detection | OFF / ON (4 Zones) |
| Privacy Mask | 16 Zones |
| Image Rotation | OFF / H-FLIP / V-FLIP / HV-FLIP |
| Defog | OFF / ON (AUTO / MANUAL) |
| Sharpness | Adjustable (0 ~ 10) |
| OSD Control | Joystick, RS-485 Control |
| Language | English, Chinese, Chinese (S), Japanese |
| Video Output Mode | HD-SDI / EX-SDI1.0 / CVBS |
| IP Grade | IP67 (Waterproof Cap Housing Only) |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Dimensions (mm) | Ø23 x 75.85 (Waterproof Cap Housing Only) |
| Weight | Approx. 90g |
| Power Source | 12VDC (±10%) |
| Power Consumption | Max. 190mA @ 12VDC |
