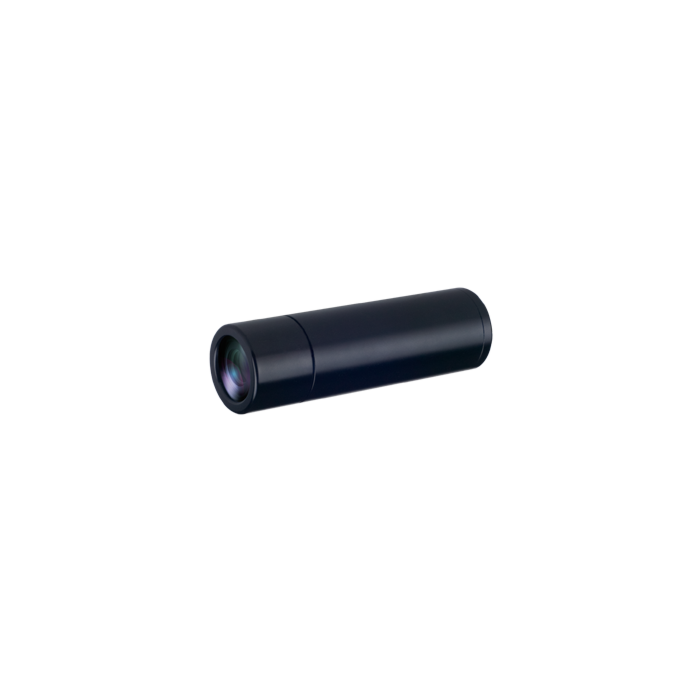

KT&C KPC-HDB232MWX HD/EX-SDI Camera, 1/2.8” Progressive CMOS, 3.6mm Lens, Digital Day/Night, Φ23 × 77.45mm
The KT&C KPC-HDB232MWX is a compact Φ23 × 77.45mm HD/EX-SDI camera with a 1/2.8” progressive scan CMOS sensor delivering 1080p video at 30/25 fps and 720p at 60/50 fps. Equipped with a 3.6mm fixed lens, electronic day/night, D-WDR, and 3D DNR, it provides clear, high-quality imaging in various lighting conditions. The IP67-rated waterproof housing ensures reliable performance in indoor and outdoor environments, making it ideal for security, surveillance, and industrial applications.
Features:
- 1/2.8" Progressive Scan CMOS
- 1080p(1920x1080)@60(50)fps
- HD-SDI/EX-SDI(V1.0)Output
- Fixed lens 3.6mm
- Electronic Day&Night
- WDR, 3D DNR
Image Sensor | 1/2.8" Progressive Scan CMOS |
Effective Pixels | 1945(H) x 1097(V) |
Max. Video Resolution | 1080p@30fps(25fps)/720p@60fps(50fps)/720p@30fps(25fps) |
Lens | Fixed Lens |
Min.Illumination | 1.5Lux(F2.0)@30(25)fps, 3.0Lux(F2.0)@60(50)fps |
IR LEDs | N/A |
IR Range | N/A |
White Balance | AUTO/AUTO EXT/PUSH LOCK/MANUAL |
WDR (Dynamic Range) | N/A |
D-WDR (Digital WDR) | OFF/LOW/MIDDLE/HIGH |
Electronic Shutter Speed | Digital Slow Shutter(OFF~ x32) |
AGC(Auto Gain Control) | 0~20 |
Day & Night | AUTO/COLOR/B&W (Electronic D&N) |
DNR(Digital Noise Reduction) | 3D-DNR |
Motion Detection | N/A |
Privacy Mask | 16 Zones |
Image Rotation | OFF/H-FLIP/V-FLIP/HV-FLIP |
Defog | OFF/ON(AUTO/MANUAL) |
Sharpness | Yes |
OSD control | RS485/Optional: A/D Key |
Language | ENGLISH,CHINESE |
Video Output Mode | HD-SDI, CVBS NTSC/PAL |
IP Grade (Ingress Protection) | IP67(Waterproof Type) |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -20~+60℃ |
Dimension(mm) | Φ23x77.45mm (Waterproof type) |
Weight | Approx. 90g |
Power Source | 12VDC(±10％) |
Power Consumption | Max.180mA@12VDC |
Optional | KPC-HDB232MB: 3.6mm Board Lens |
