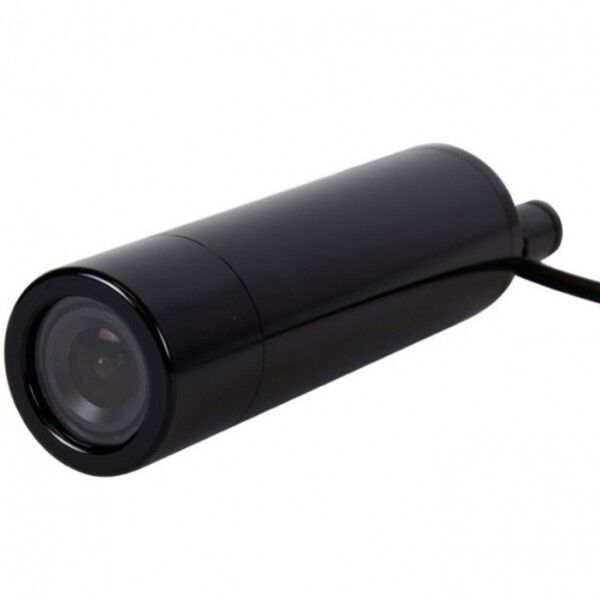

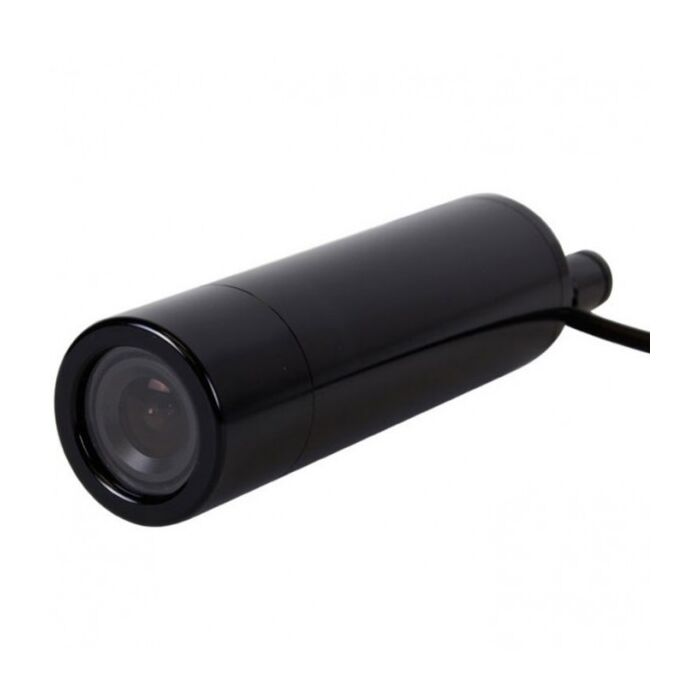

KT&C KPC-HDB230MWX HD Miniature Bullet Camera, 1/3” 2.1MP SONY Exmor CMOS, 3.7mm Lens, Digital Day/Night, Φ23 × 77.5mm
The KPC-HDB230MWX (KPCHDB230MWX) NDAA compliant HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression.
Features:
- 1/2.9" Progressive Scan CMOS
- 1080p(1920x1080)@30(25)fps
- HD-SDI Output
- Fixed lens 3.6mm
- Electronic Day&Night
- WDR, 3D DNR
- Image Sensor
1/2.9" Progressive Scan CMOS
- Effective Pixels
2.19MP 1984(H) x 1105(V)
- Max. Video Resolution
1080p@30(25)fps/720@60(50)fps
- Lens
Fixed Lens
3.6mm, F 2.0, Angle of View: 107.53˚
- Min.Illumination
0.9Lux(F2.5, DSS Off)/0.1Lux(DSS Max.)
- IR LEDs
N/A
- IR Range
N/A
- White Balance
AUTO/AUTO EXT/PUSH LOCK/MANUAL
- WDR(Wide Dynamic Range)
N/A
- D-WDR(Digital WDR)
OFF/LOW/MIDDLE/HIGH
- Electronic Shutter Speed
Digital Slow Shutter(OFF~32x)
AUTO/FLICKER/MANUAL/(1/30(25)~1/30,000)
- AGC(Auto Gain Control)
0~20
- Day&Night
AUTO/COLOR/B&W (Electronic D&N)
- DNR(Digital Noise Reduction)
3D-DNR
- Motion Detection
N/A
- Privacy Masking Zone
16 Zones
- Image Rotation
OFF/H-FLIP/V-FLIP/HV-FLIP
- Defog
OFF/ON(AUTO/MANUAL)
- Sharpness
Yes
- OSD Control
Rear Joystick
- Language
ENGLISH,CHNIESE
- Video Output Mode
HD-SDI, CVBS NTSC/PAL
- IP Grade(Ingress Protection)
IP67(Waterproof Type)
- Operating Temperature
-10~+50℃
- Storage Temperature
-20~+60℃
- Dimension(mm)
Φ23x75.85mm (Waterproof type)
- Weight
Approx.90g
- Power Source
12VDC(±10%)
- Power Consumption
Max. 110mA@12VDC
- Optional1
KPC-HDB230MB: 3.6mm Board Lens
KPC-HDB230MP4: 4.3mm Supercone Pinhole
Without waterproof housing Basis
