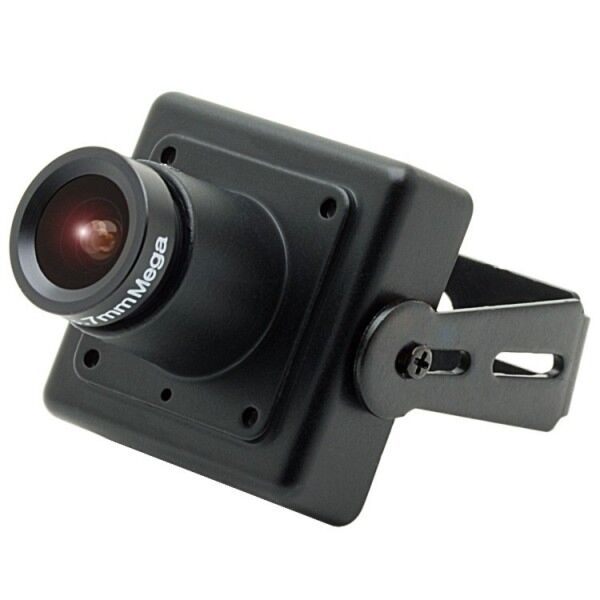

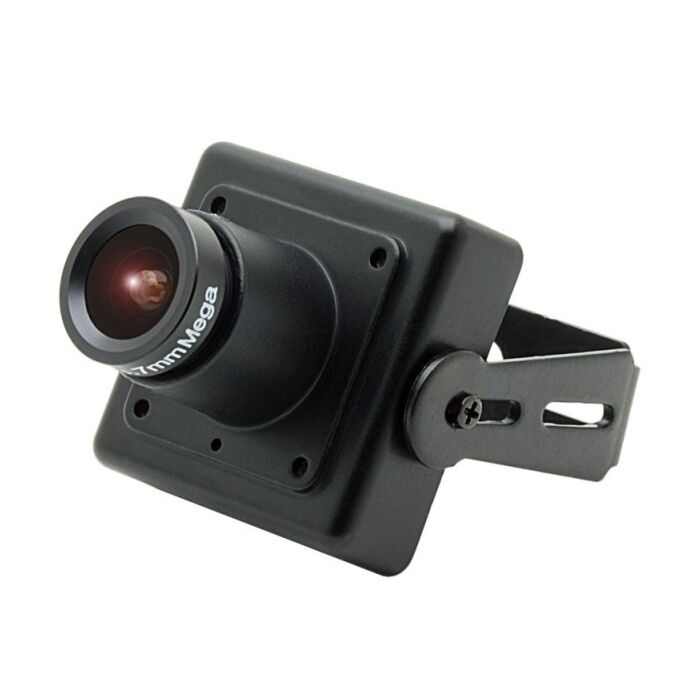

KT&C KPC-HD30MB HD Miniature Square Camera, 1/3” 2.1MP CMOS, HD-SDI, Digital Day/Night, 30mm × 30mm × 28.2mm
SKU
KPC-HD30MB
Quick Overview
The KT&C KPC-HD30MB is an ultra-compact 30mm × 30mm × 28.2mm HD miniature square camera with a 1/3” 2.1MP CMOS sensor and HD-SDI output. Features include NDAA compliance, digital day/night, 3D DNR, WDR/ACE, HSBLC/BLC, multiple lens options, and full OSD controls. Ideal for discreet security, surveillance, industrial monitoring, and professional installations.
KT&C's KPC-HD30MB (KPCHD30MB) is an ultra compact size 1.2” square 2.1 megapixel HD-SDI camera weighs only 1-1/4 ounce, making it a perfect fit for just about anywhere.
Features:
- NDAA compliant
- HD-SDI/HDCCTV Megapixel real time 1920x1080 or 1280x720 HD video over coax for superlative image detail
- Supports video outputs of 1080p30/25; 720p60/50 (field select)
- Sens-Up of up to 32X DSS boosts low light performance (use of DSS values greater than 4X should only be used after careful consideration of application conditions)
- Double Shutter” Wide Dynamic Range plus Adaptive Contrast Enhancement (ACE/DWDR) functions handle bright and unbalanced lighting conditions
- HSBLC & BLC to handle backlight and highlight specific conditions
- 3D DNR improves picture clarity while enabling DVRs to improve disk storage utilization
- Included bracket allows flexible mounting and aiming
- 3.7mm megapixel lens captures the desired field of view
- Multi-language OSD setup menu with multiple functions (image flip, privacy mask, digital zoom, defog, camera title, motion detect, etc.)
- SD/analog TV Out for setup, aim and focus using a standard hand held test monitor
- Power Source only 120mA from 12VDC
Applications:
- Security
- Surveillance/CCTV
- Industrial
| Image Sensor | 1/3” 2.1 Megapixel Color CMOS sensor |
| Total Pixels | 1944 x 1092 |
| Effective Pixels | 5.28 mm x 2.97 mm (16:9 aspect ratio; 6.06 mm diagonal) |
| Sensitivity | 0.1lux/F=1.8; 0.2lux/F=2.5. Use of DSS can improve practical light sensitivity by 4X or more; ; use of DSS values greater than 4X should only be used after careful consideration of application conditions |
| S/N Ratio | More than 52dB |
| Video Format Main Output | HD-SDI |
| Resolution Main Output | Field select 1080p or 720p |
| Video Mode Main Output | Field select 1080p 30/25; 720p 60/50 |
| Main Output Connector | BNC-F |
| Video Format Service Video Output | NTSC/PAL selectable |
| Service Video Output Connector | BNC-F |
| Electronic Shutter | Auto/Manual selectable 1/30(20); 1/60(50); 1/120(100); 1/250; 1/700; 1/1.1K; 1/1.6K; 1/2.5K; 1/5K; 1/7K; 1/10K; 1/30K |
| Lens Choices (megapixel board type) | f=3.7mm/F2.5 (3M) / f=8mm/F1.8 (1.3M) Super-cone Pinhole f=4.3mm/F2.0 (1.3M) |
| Day/Night Control | Digital D&N (Auto/Color/B&W) |
| Wide Dynamic Range / Back Light Compensation | Off/BLC/WDR [WDR adjustable for level; BLC adjustable for area] (WDR option employs “Double Shutter” Wide Dynamic Range Compensation) |
| Digital Wide Dynamic Range | Adaptive Contrast Enhancement (ACE) |
| Auto Gain Control | Yes (12~60 dB) |
| Auto White Balance | Auto/Auto Ext/Push Lock/Manual |
| DNR | 2D DNR |
| OSD Menu | Yes (controlled from 3-axis joystick control) |
| OSD Language | English, Russian, Spanish, German, French, Portuguese |
