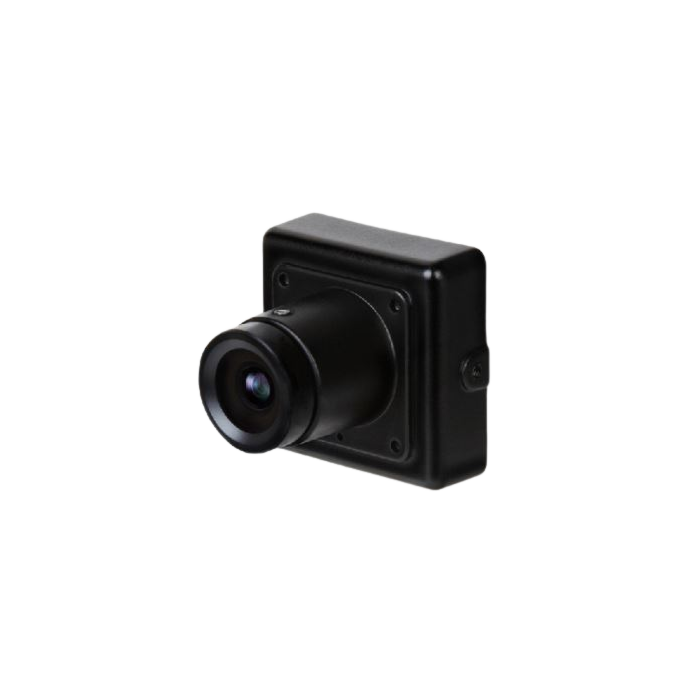

KT&C KPC-C700NU 850TVL Miniature Square Analog Camera – Sony STARVIS CMOS, CVBS, WDR, 30 × 30mm
SKU
KPC-C700NU Series
Quick Overview
Compact 30 × 30mm miniature square analog camera with 1/3.2" Sony STARVIS CMOS sensor, 850TVL resolution, CVBS output, WDR, 2DNR, and multiple lens options.
Available Models:
- NDAA compliant
- KPC-C700NUB: 2.97mm Board Lens, 3.6mm Board Lens, 6mm Board Lens, 8mm Board Lens, 12mm Board Lens
- KPC-C700NUP1: 3.7mm Conical Pinhole Lens
- KPC-C700NUP3: 3.7mm Flat Pinhole Lens
- KPC-C700NUP4: 4.3mm Super Cone Pinhole Lens
The NDAA compliant KT&C KPC-C700NU is a high-performance miniature square analog camera delivering 850TVL resolution with excellent low-light performance. Built around a 1/3.2” Sony STARVIS Exmor RS CMOS sensor
| Image Sensor | 1/3.2" Exmor RS Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1.27MP 1297(H) x 977(V) |
| Max. Video Resolution | Horizontal 850TV Line |
| Lens Type | Board Mount Lens |
| Lens Focal Length | 3.6mm |
