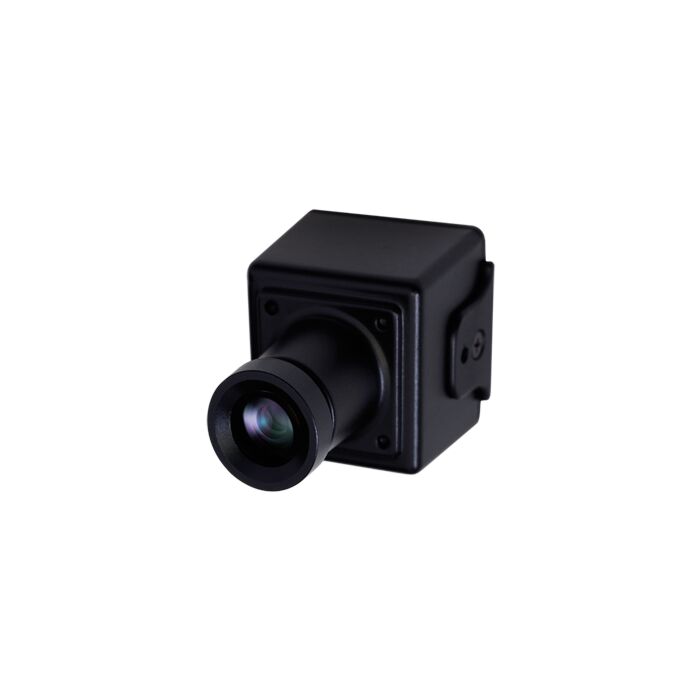

KT&C KPC-C20NU 850TVL Miniature Square Module Camera with 1/3.2” Sony STARVIS CMOS Sensor, 22.4 × 23mm
The KT&C KPC-C20NU is a miniature NDAA compliant square module camera featuring a 1/3.2” Sony STARVIS CMOS sensor and 850TVL resolution. With a compact 22.4×23mm design, low-light sensitivity of 0.2 lux, and multiple lens options (board and pinhole), this camera is ideal for covert surveillance, embedded vision, and industrial imaging applications.
Available Models:
- KPC-C20NUB - 2.97mm board lens 3.6mm board lens 4.3mm board lens 6mm board lens 8mm board lens 12mm board lens 16mm board lens
- KPC-C20NUP1 - 3.7mm conical pinhole
- KPC-C20NUP3 - 3.7mm flat pinhole
- KPC-C20NUP4 - 4.3mm supercone pinhole
The NDAA compliant KT&C KPC-C20NU miniature square module camera delivers high-resolution 850TVL video performance in a compact 22.4×23mm housing. Powered by a 1/3.2” Sony STARVIS CMOS progressive scan sensor, the camera captures sharp, clear images with a sensitivity of 0.2 lux at F2.0, ensuring reliable performance even in low-light conditions. Multiple lens configurations are available, including board lenses (2.97mm to 16mm) and pinhole options (conical, flat, and supercone)
| Image Sensor | 1/3.2" Exmor RS Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1.27MP 1297(H) x 977(V) |
| Max. Video Resolution | Horizontal 850TV Line |
| Lens Type | Horizontal 850TV Line |
| Lens Focal Length | 3.6mm |
