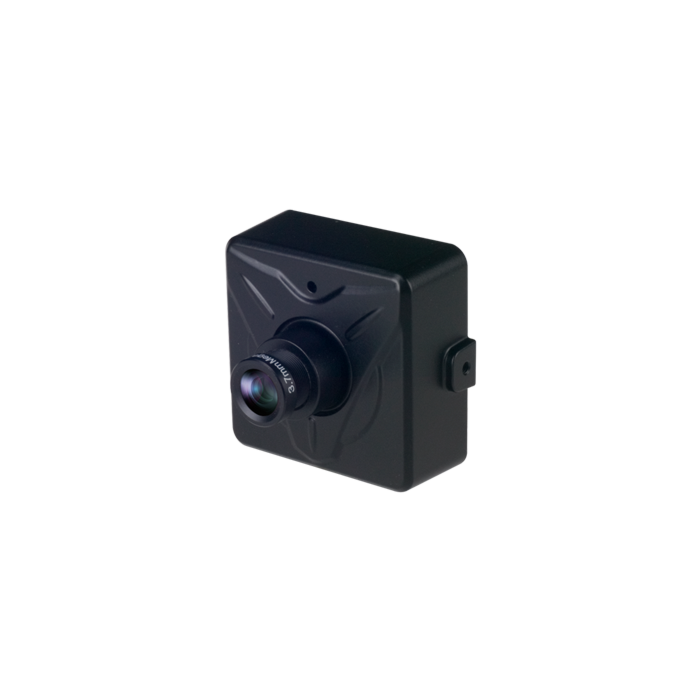

KT&C KNC-HMSS347-iB IP Camera

Image Sensor

1/2.8" Progressive Scan SONY STARVIS CMOS

Effective Pixels

1945(H) x 1097(V)

Max. Video Resolution

TVI, AVI, CVI : 1080p@30(25)fps/720p@60fps(50fps)
720p@30fps(25fps)
TV out: CVBS NTSC/PAL

Lens

Fixed Lens 3.6mm

Min.Illumination

NIL

S/N Ratio

NIL

IR LEDs

N/A

IR Range

N/A

White Balance

Automatic,Outdoor,Cloudy sky,Light bulb, Flames,Manual

WDR (Dynamic Range)

DOL-HDR

Electronic Shutter Speed

1/25(30)~1/100,000

AGC(Auto Gain Control)

0~66dB

Day & Night

AUTO/COLOR/B&W (Electronic D&N)

DNR(Digital Noise Reduction)

3D-DNR(OFF/LOW/MIDDLE/HIGH)

Motion Detection

OFF/ON(4 Zones)

Privacy Mask

8 Zones

Image Rotation

OFF/Flip/Mirror

Lens Distortion Correction (LDC)

Off/On

Image Stabilization(DIS)

NIL

Defog

Off/On(Level:1~3)

Alarm

Alarm Events: E-Mail,FTP,Video Boost,Image(AE),Notification Server

Ethernet

10/100 Base-T LAN

Video Compression Format

H.264 (High,Main,Base) Profile, MJPEG

Video Resolution

[384x216 ~ 1920x1080] 16:9

Max. Frame Rate

H.264: 30(25)fps at all resolutions
MJPEG: 30(25)fps at all resolutions

Streaming Capability

Multiple Streaming(Up to 3 Profiles)

Streaming Method

Unicast, Multicast

Bitrate Control

H.264: CBR or VBR

Audio

1ch Audio(Internal MIC) In
G.711 Codec
2 way Audio

IP

IPv4,IPv6

Protocol

TCP/IP,UDP,IPv4/v6,HTTP,HTTPS,FTP,UPnP, RTP,RTSP,RTCP,DHCP ARP,Zeroconf,Bonjour

Web Browser

Chrome, Microsoft Edge, Firefox

External Storage

NIL

SW Integration API

API,Onvif (Profile S/T Compliant)

Ingress Protection Grade (IP)

N/A

Dimension(mm)

Φ47.5x47.5mm

Weight

Approx. 140g (with PoE Cable)

Power Source

12VDC(±10％)

Power Consumption

Max.300mA(12VDC)/Max.5W(PoE)

Optional

KNC-HMSS347-iP4: Supercone Pinhole 4.3mm Lens
KNC-HMSS347-iB: Fixed 3.6mm Lens
