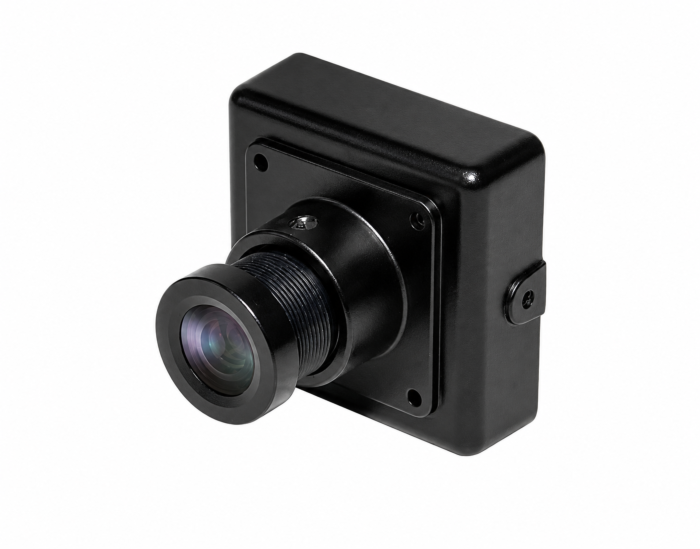

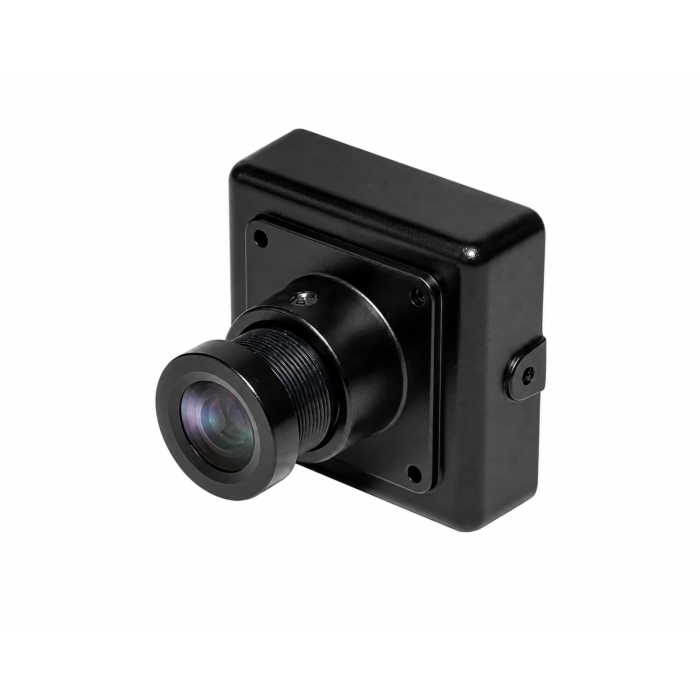

KT&C KNC-HMS6330-iB 2MP IP Camera with 1/2.8" SONY STARVIS CMOS, 1080p 30fps, 3.6mm Lens, 30 x 30 mm
The NDAA compliant KT&C KNC-HMS6330-iB is a miniature 2MP IP camera engineered for discreet yet powerful surveillance applications. Featuring a 1/2.8" SONY STARVIS CMOS sensor, it captures 1080p full HD video at 30fps with superior clarity even in low-light conditions down to 0.01 Lux (DSS On). Its 3.6mm fixed lens provides a wide field of view, while advanced imaging functions such as Wide Dynamic Range (116 dB), 3D Digital Noise Reduction (3D DNR), Backlight Compensation (BLC), and Digital Slow Shutter (up to 32x) ensure optimized performance in variable environments.
Supporting multiple streaming profiles (H.264/MJPEG) with up to three simultaneous outputs, the KNC-HMS6330-iB offers flexibility for security professionals deploying IP-based systems. With PoE (IEEE 802.3af) and 12VDC power options, a lightweight design (30 × 30 mm, 79.6 g), and ONVIF compliance, this camera is well-suited for integration in USA commercial, educational, and industrial security installations where compact, high-resolution monitoring is required.
Features:
- 1/2.8″ SONY STARVIS CMOS sensor
- 1080p Full HD up to 30 fps
- H.264 (High/Main/Base) and MJPEG compression
- Double shutter WDR up to 116 dB
- Low-light performance down to 0.01 Lux (DSS On)
- Fixed 3.6 mm lens
- Electronic Day/Night with 2D/3D DNR
- Triple-stream IP output (up to 3 profiles)
- ONVIF compliant, IPv4 networking
- 12 VDC or PoE (IEEE 802.3af) power support
- Compact Ø30 × 30 mm form factor
Applications:
- IP video surveillance
- Discreet and miniature camera installations
- Access control and entry monitoring
- Retail and commercial security
- Industrial and embedded IP camera systems
- Low-light indoor monitoring
| Image Sensor | 1/2.8" Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1945(H) × 1097(V) |
| Lens | Fixed Lens 3.6mm |
| Minimum Illumination | 0.05 Lux (F2.5, DSS Off) / 0.01 Lux (DSS On) |
| S/N Ratio | ≤ 50dB |
| White Balance | Auto, 3000K, 5000K, 8000K |
| WDR | Double Shutter WDR, Max. 116dB |
| Electronic Shutter | Digital Slow Shutter (Off ~ 32x), 1/25(30) ~ 1/30,000 sec |
| AGC | 0 ~ 69dB |
| Day & Night | Auto / Color / B&W (Electronic D&N) |
| DNR | 2D / 3D DNR |
| Motion Detection | 60 × 34 Motion Blocks |
| Privacy Mask | 16 Zones |
| Ethernet | 10/100 Base-T LAN |
| Video Compression | H.264 (High / Main / Base Profile), MJPEG |
| Video Resolution | 1920×1080, 1280×720, 800×600, 704×480, 704×400, 640×480, 640×360, 320×240 |
| Max Frame Rate | 1st Stream: 1080p 30(25)fps (H.264) 2nd Stream: 640×360 30(25)fps (H.264) 3rd Stream: 1080p 30(25)fps (MJPEG) |
| Streaming | Multiple Streaming (Up to 3 Profiles), Unicast |
| Bitrate Control | CBR / VBR / CVBR |
| IP Version | IPv4 |
| Protocols | HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP |
| Web Browser | Internet Explorer, Edge, Safari, Firefox, Chrome |
| API | ONVIF |
| Dimensions | Ø30 × 30 mm |
| Weight | Approx. 79.6 g (with PoE cable) |
| Power Source | 12VDC ±10% / PoE (IEEE 802.3af) |
| Power Consumption | Max. 190mA (12VDC) / Max. 3.0W (PoE) |
| Optional Lens | Supercone Pinhole 4.3mm |
