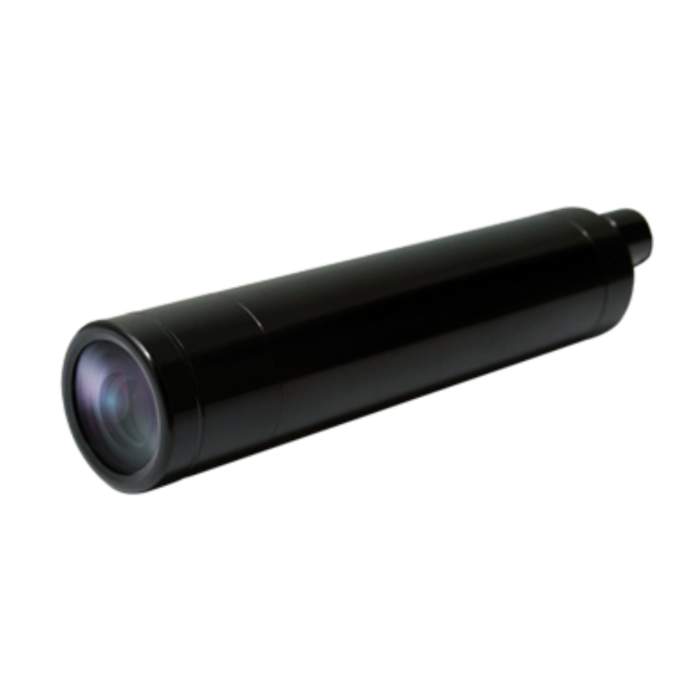

KT&C KNC-HMB6319-iWX IP Bullet Camera, 1/2.8” SONY STARVIS CMOS, 5.14MP QHD, Fixed 3.6mm Lens, IP67, Φ19 × 81.8mm
SKU
KNC-HMB6319-iWX
Quick Overview
NDAA compliant QHD IP bullet camera with 1/2.8” SONY STARVIS CMOS sensor, fixed 3.6mm lens, electronic day/night, 2D/3D DNR, H.264/MJPEG, IP67 waterproof, and compact Φ19 × 81.8mm form factor. Ideal for high-resolution surveillance in indoor/outdoor environments.
The NDAA compliant KT&C KNC-HMB6319-iWX is a high-performance QHD IP bullet camera designed for advanced surveillance. Featuring a 1/2.8” Progressive Scan SONY STARVIS CMOS sensor, it delivers 1080p video at 30(25) fps with a wide 112.3˚(D)x93.7˚(H)x49.3˚(V) field of view through a fixed 3.6mm lens.
Electronic Day & Night and 2D/3D DNR ensure clear, low-noise images in varied lighting conditions.
Features:
- 1/2.8" Progressive Scan CMOS
- 1080p 30(25)fps
- H.264 Main/Base Profiles
- Fixed lens 3.6mm
- Electronic Day&Night
- 3D DNR, DSS, BLC, WDR
- Ethernet 10/100 Base-T LAN
- DC12V/PoE(IEEE802.3af)
- Fast boot up based(within 2seconds) on RTOS
- Waterproof: IP67
- 19Φ Bullet camera
| Image Sensor | 1/2.8" Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1945(H) x 1097(V) |
| Scanning | Progressive scan |
| Min.Illumination | 0.05Lux(F2.5, DSS Off) / 0.01Lux(DSS On) |
| S/N ratio | ≤50dB |
| White Balance | Auto, 3000K, 5000K, 8000K |
| Double Shutter WDR | Double Shutter WDR |
| Electronic Shutter Speed | 1/25(30)~1/30,000 |
| Auto Gain Control(AGC) | Off~69dB |
| Day&Night | AUTO/COLOR/B&W (Electronic D&N) |
| Digital Slow Shutter(DSS) | OFF~ x32 |
| Noise Reduction | 2D, 3D DNR |
| Motion Detection | 60x34 Motion Block, up to 4 Zones |
| Privacy Masking Zone | 16 Zones |
| Ethernet | 10/100 Base-T Ehternet |
| Video Compression Format | H.264 (Baseline, Main), MJPEG |
| Video Resolution | 1920x1080, 1280x720,, 800x600, 704x480,704x400, 640x480, 640x360, 320x240 |
| Max. Frame Rate | First: 1080p 30(25)fps (H.264)Second : 640x360 30(25)fps (H.264)Third : 1080p 30(25)fps (MJPEG) |
| Protocol | HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP,TCP/IP, UDP, DHCP, RARP, NTP |
| SW Integration API | Onvif, KT&C API |
| Ingress Protection Grade | IP67 |
| Color/Material | Black / AL |
| Dimension(mm) | Φ19x81.8mm |
| Weight | Approx.85.5g (with PoE Cable) |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Power Consumption | 12VDC(Max.190mA), PoE (Max.3.0W) |
| Supply Voltage | 12VDC(±10％) , PoE(IEEE802.3af) |
