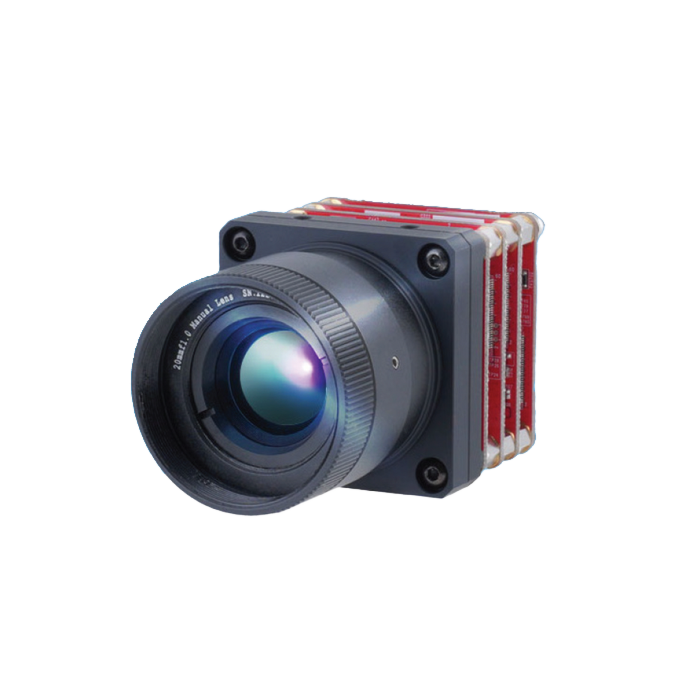

KT&C KLU64-L Thermal IR Camera – 640x480, LWIR Microbolometer, CVBS/BT656/LVDS Outputs, High Temp Accuracy

The KT&C KLU64-L is a compact, LWIR thermal block camera engineered for OEM, embedded, and industrial thermal imaging systems. It features a 640x480 uncooled LWIR microbolometer sensor with a 17μm pixel pitch, delivering pixel-level thermal detail across the 8–14 μm spectral range.

Supporting selectable 9Hz or 30Hz frame rates and multiple output formats—CVBS, BT656, and LVDS—the KLU64-L integrates easily into both analog and digital platforms. Advanced image controls, fast startup, and wide operating temperature support reliable performance in demanding environments.

Features:

• 640 × 480 LWIR uncooled microbolometer
• 17μm pixel pitch, 8–14 μm spectral range
• Selectable 9Hz or 30Hz frame rate
• Video outputs: CVBS, BT656, LVDS
• Pixel-level thermal data (307,200 points)
• AGC, NUC, mirror, flip, and image filtering
• 10 selectable thermal color palettes
• RS-485 OSD control (analog)
• <5 second startup time
• -30°C to +60°C operating temperature
• Supports manual or motorized athermal lenses

Applications:

• OEM and embedded thermal imaging systems
• Industrial condition monitoring and inspection
• Perimeter security and night surveillance
• Building diagnostics and energy audits
• Automotive and component thermal testing
• Defense, border, and critical infrastructure
• Oil, gas, and utility inspections
• Research and laboratory thermal analysis
