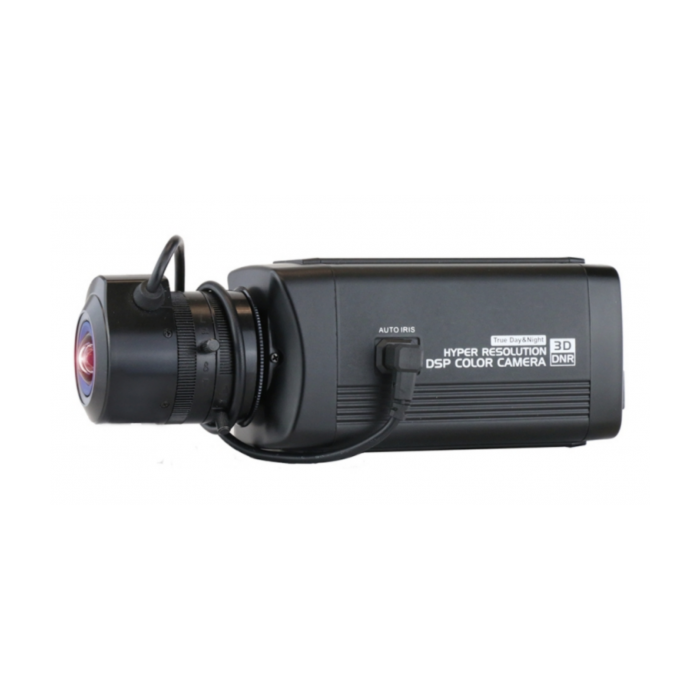

KT&C KEZ-c2RICS (KEZc2RICS) 1080p HD Over Regular Coax or UTP True Day/Night Box Camera
The KT&C KEZ-C2RICS is an NDAA-compliant HD box camera delivering high-definition video over coaxial or UTP cabling. Designed for professional security, industrial, and OEM installations, it provides crystal-clear 1080p Full HD or 720p HD resolution with flexible digital zoom for live viewing and playback.
Engineered for extended cable runs, the KEZ-C2RICS operates over virtually any wire type: up to 1000 ft on RG59, 1500 ft on RG6, and 500 ft on Cat5e UTP with optional passive baluns. The main HD-TVI output ensures maximum image quality, while a rear CVBS analog service output allows easy field testing, aiming, and service.
Equipped with a 1/2.8" Sony progressive scan CMOS sensor with 0.07 lux sensitivity, the camera supports both manual and DC iris lenses, offering true Day/Night operation with optional Digital Slow Shutter enhancement. Its robust OSD menu allows simple configuration locally or via Coaxitron® UTC control. Additional features include DWDR, BLC, HLC, 3D-DNR, privacy masking, lens shading compensation, and defogging, making it ideal for challenging lighting conditions.
The KEZ-C2RICS offers dual voltage operation (12VDC/24VAC), a choice of black or silver housing, and standard ¼-20 mounting points for flexible installation in optional protective housings.
Features:
- NDAA-compliant HD-TVI box camera
- Superlative 1080p Full HD or 720p HD resolution
- Field-selectable 30/25 FPS output
- Operates over RG59, RG6 coax or Cat5e UTP (with passive balun)
- HD-TVI main output and CVBS service output for easy setup
- 1/2.8” Sony progressive scan CMOS sensor with 0.07 lux sensitivity
- Supports manual or DC iris lenses
- True Day/Night with Digital Slow Shutter (2–16X DSS, max recommended 2–4X)
- Simple 5-button OSD menu and Coaxitron® UTC control
- Digital Wide Dynamic Range (DWDR), Back Light Compensation (BLC), High Light Compensation (HLC)
| Imaging Device | 1/2.8" Sony 2.1MP Progressive Scan CMOS |
| Video Format | Main: 1080p/30/25, 720p/30/25 HD-TVI (OSD selectable) Secondary: CVBS service video (NTSC/PAL selectable) |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Maximum Video Output | 1920 (H) x 1080 (V) / 1080p @ 30/25 FPS |
| Sensitivity | 0.1 lux (color), 0.07 lux (B/W) F1.0 |
| Day/Night | Digital Day/Night with motorized IR cut filter |
| Lens Type | CS type, DC iris support |
| Video Output Connector | BNC 75Ω (HD-TVI & CVBS) |
| Sync Mode | Internal |
| OSD Menu | 5-button rear control; UTC Coaxitron® compatible; English, Spanish, Portuguese, German, Russian, Japanese, French |
| DWDR / BLC / HLC | Selectable OFF/WDR/BLC/HLC, adjustable Level 1–10 |
| Auto Gain Control | OFF, 2–42dB |
| Electronic Shutter | Auto, FLK, Manual 1/30 (25) to 1/30,000 |
| White Balance | Auto / Push Lock / Auto EXT / Manual |
| Digital Slow Shutter (DSS) | Off / Auto 2X–16X* (*Max recommended 2–4X) |
| 3D-DNR | Off / Low / Mid / High |
| Digital Zoom | 1X–8X |
| Defog | Off / Low / Mid / High |
| Mirror / Rotate | Off / H-flip / V-flip / HV-flip |
| Motion Detection | Off / On programmable zones |
| Privacy Mask | Up to 8 programmable zones |
| Lens Shading Compensation | Off / Low / Mid / High |
| DPC | Defective Pixel Correction On/Off |
| Power Source | 12VDC / 24VAC |
| Power Consumption | 12VDC: 240mA / 24VAC: 3.4W max |
| Operating Temp | 14°F–122°F / -10°C–50°C |
| Storage Temp | -4°F–140°F / -20°C–60°C |
| Humidity | <80% non-condensing |
| Dimensions | 2.28" x 2.28" x 4.77" / 58 x 58 x 121.4 mm (includes rear BNC) |
| Weight | 0.485 lb / 220g |
| Certifications | CE / FCC / NDAA Compliant |
| Warranty | 3 years |
