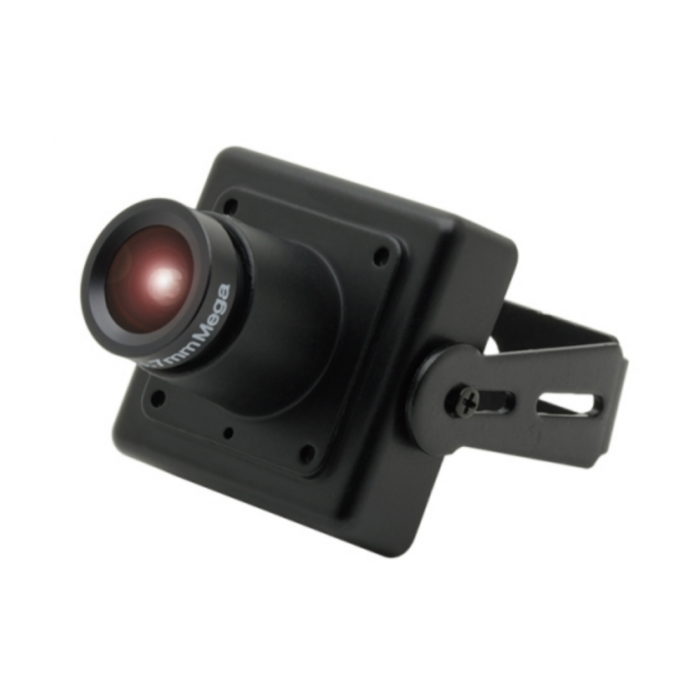

KT&C KEZ-C2MIB4 HD-TVI Metal Case Camera, 1930×1088 1/2.7” Progressive Scan CMOS 30 × 30 × 18.8mm

Quick Overview
KT&C KEZ-C2MIB4 HD-TVI Metal Case Camera with 1/2.7” Progressive Scan CMOS, 1930×1088 resolution, 1080p30, 3.7mm board lens, digital day/night, UTC OSD menu, dimensions 30×30×18.8mm.

The KT&C KEZ-C2MIB4 (KEZC2MIB4) is an NDAA-compliant, high-performance HD-TVI metal case camera engineered for indoor surveillance. Utilizing a 1/2.7” progressive scan CMOS sensor, it delivers sharp 1080p resolution at 30fps for clear and reliable video capture. Its compact form factor, metal housing, and versatile ceiling or wall mount options make it ideal for corporate, government, or industrial environments where NDAA compliance is required.

Equipped with a 3.7mm fixed lens (4.3mm pinhole optional), this camera supports privacy masking, backlight compensation, auto gain control, and day/night functionality, ensuring optimal image quality in diverse indoor conditions. Power-efficient and robust, it operates reliably in temperatures from -15°C to 50°C and humidity below 80%, making it a dependable choice for secure indoor monitoring.

Features:

  • NDAA Compliant – safe for U.S. government and enterprise use
  • 1080p HD-TVI output at 30fps
  • 1/2.7” Progressive Scan CMOS sensor
  • Fixed 3.7mm board lens (4.3mm pinhole optional)
  • Indoor metal housing for durability and security
  • Supports ceiling and wall mounting
  • Advanced image enhancements: BLC, DNR, AWB, AGC, Flickerless
  • Privacy masking with adjustable zones
  • Day/Night functionality

Applications:

  • Government buildings and offices
  • Industrial and commercial indoor surveillance
  • Secure indoor facilities requiring NDAA-compliant devices
Camera SignalHD-TVI
Resolution1080p (1930×1088) at 30fps
Lens TypeFixed
Lens Size3.7mm (4.3mm pinhole optional)
InfraredNon-Infrared
DurabilityIndoor metal housing
Mount TypeCeiling, Wall
Voltage12V DC ±10%, Max 100mA
Electronic ShutterAuto, 1/25 ~ 1/10000
Image Device1/2.7” Progressive Scan CMOS
Effective Pixels1930(H) x 1088(V)
Operating Humidity<80%
Operating Temperature5°F~122°F (-15°C~50°C)
Dimensions (W x H x D)1.18” x 1.18” x 1.15” (30 x 30 x 29.3 mm)
Privacy ZoneTwo zones, adjustable size and position
Video OutputHD-TVI: 1080p 30fps (25fps)
Digital Noise ReductionAuto
Backlight CompensationBLC (1~16 selectable)
Automatic White BalanceAuto Indoor / Auto Outdoor / User / Push / Manual
Auto Gain Control1~5 (Max 30dB)
FlickerlessOff, 50Hz, 60Hz
Day/NightYes
MirrorYes
CoaxitronYes
