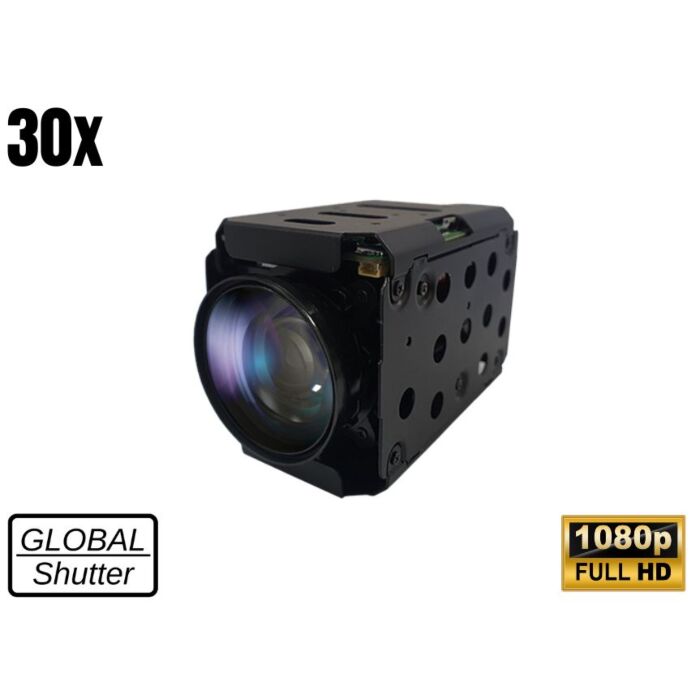

ATC-HZ8930T-LPN (ATCHZ8930TLPN) Global Shutter 30x Optical 1080P60 frames per second
The KT&C ATC-HZ8930T-LPN HD 30x Optical Zoom Global Shutter up to 1080P60 fps Block Camera by Aegis Electronic Group Inc. is a high-performance camera designed for CCTV surveillance and inspection applications. With a robust 1/3.1” 3.20M Global Shutter CMOS Image Sensor, this camera excels in capturing high-definition images with exceptional clarity. The 30x optical zoom lens combined with a 12x digital zoom provides a powerful 360x zoom capability, making it ideal for detailed inspections and long-range surveillance.
One of the key features of the KT&C ATC-HZ8930T-LPN is its Wide Dynamic Range (WDR) function, which ensures clear images even in challenging lighting conditions. The camera’s progressive scan technology further enhances image quality, making it suitable for environments where precision is paramount. Additionally, its low-light performance is enhanced by a Noise Reduction function, making it effective in dimly lit areas.
This NDAA compliant versatile block camera is perfect for a variety of applications including industrial automation, security monitoring, speed dome cameras, and data visualization. Whether you need a camera for detailed inspections in manufacturing or for high-quality video surveillance, the KT&C ATC-HZ8930T-LPN is an excellent choice for ensuring superior performance and reliability in demanding environments.
Features:
- 1/3.1” 3.20M Global Shutter CMOS Image Sensor
- 30x Optical Zoom with 360x Total Zoom (Optical + Digital)
- Wide Dynamic Range (WDR) for enhanced image clarity
- Noise Reduction technology for low-light environments
- Infrared Cut-Filter for day/night functionality
- Motion Detection and Privacy Zone Masking features
Applications:
- Industrial automation and inspection
- High-definition video surveillance
- Security camera systems (CCTV)
- Speed dome camera applications
- Data visualization and monitoring
| Video System | ||
| Image Sensor | 1/3.1” 3.20MP Global Shutter CMOS Image Sensor | |
| Effective Pixels | 2064 (H) × 1552 (V) | |
| Scan System | Progressive Scan | |
| Video Output | LVDS / Parallel / CVBS | |
| Output Format | 1080p60/50/30/25 720p60/50/30/25 1080i60/50 | |
| Minimum Illumination | TBD (Low-light enhanced with 2D/3D Noise Reduction) | |
| Lens & Zoom | ||
| Optical Zoom | 30× Optical Zoom | |
| Digital Zoom | 12× Digital Zoom | |
| Maximum Zoom Ratio | 360× (Optical + Digital) | |
| Focus Control | Auto / Manual | |
| IR Correction | Supported | |
| Image Processing & DSP | ||
| Wide Dynamic Range | WDR / D-WDR | |
| Noise Reduction | 2DNR / 3DNR | |
| Backlight Compensation | BLC / HLC | |
| Image Functions | Defog, Gamma, Sharpness, Lens Shading, Digital Image Stabilization, Image Freeze, E-FLIP | |
| Analytics & Control | ||
| Motion Detection | Supported | |
| Privacy Masking | Supported | |
| Communication | UART / Coaxial Communication | |
| Control Protocol | VISCA, PELCO-D/P (Auto Detection) | |
| OSD | Supported | |
| Power & Environmental | ||
| Power Supply | TBD (Integrator Dependent) | |
| Power Consumption | TBD (Motor On) | |
| Operating Temperature | TBD | |
| Storage Temperature | TBD | |
