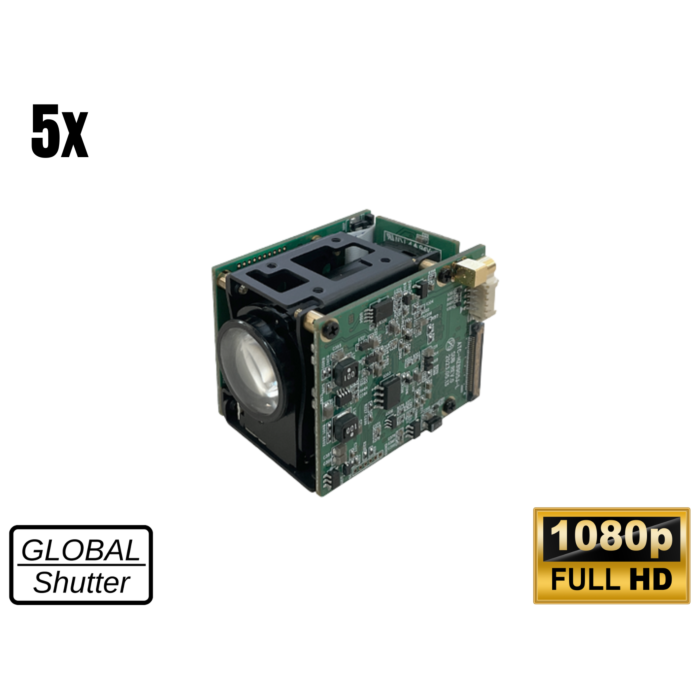

KT&C ATC-HZ8905J-L Global Shutter Camera – 2MP, 5x Zoom, HD-SDI/EX-SDI/CVBS/LVDS Outputs, 1/3.1” CMOS, WDR

The KT&C ATC-HZ8905J-L is an NDAA compliant 2MP global shutter camera engineered for professional and regulated environments. Built around a 1/3.1” Progressive CMOS sensor, it delivers sharp, distortion-free 1080p video at up to 60fps. The integrated autofocus lens provides 5x optical and 16x digital zoom, while true WDR, 2D/3D DNR, defog, and digital image stabilization ensure consistent image quality in dynamic or low-visibility conditions.

Designed for secure deployments, the ATC-HZ8905J-L supports HD-SDI, EX-SDI, and LVDS video outputs and remote control via UART RS232-TTL using VISCA or PELCO-D/P protocols. Its compact, low-power design makes it ideal for NDAA-compliant security systems, industrial inspection platforms, ITS, gimbal integrations, and specialty imaging applications where compliance, reliability, and image accuracy are critical.

Features:

• NDAA Compliant Design
• 2MP Global Shutter
• 1/3.1” Progressive CMOS Sensor
• 5x Optical Zoom / 16x Digital Zoom
• 1080p60 / 720p60 HD Output
• True WDR
• 2D / 3D Digital Noise Reduction
• Defog & Digital Image Stabilization
• Auto, Manual & Preset Focus
• Motion Detection & Privacy Masking
• Multi-Language OSD Support
• UART RS232-TTL Control (VISCA, PELCO-D/P)

Applications:

• NDAA Security
• Industrial Inspection
• Traffic ITS
• Gimbal Systems
• Underwater Imaging
• Infrastructure Monitoring
