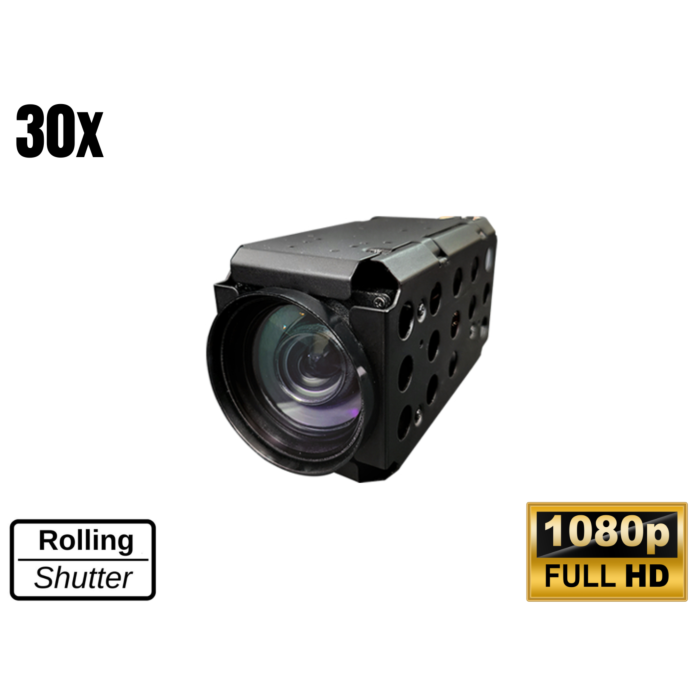

KT&C ATC-HZ8230T-LTN 2.13MP SONY STARVIS Progressive Scan 1080P60 HD Surveillance Camera
SKU
ATC-HZ8230T-LTN
Quick Overview
1/2.8" Starvis Sensor, 1080p60, LVDS, 9-pin, 30x Optical zoom, RS 232 TTL, AD Key, VISCA, DC12V
The KT&C ATC-HZ8230T-LTN is a high-performance surveillance camera featuring a 1/2.8” 2.13MP SONY STARVIS CMOS image sensor. It delivers superior image clarity with effective pixels of 1945(H) x 1097(V) and supports multiple output formats, including LVDS, HD-SDI, CVBS, and EX-SDI, with resolutions up to 1080P60.
This NDAA compliant camera boasts a 30x optical zoom, with a focal length of 4.3mm to 129mm and a horizontal field of view from 66.9° (wide) to 2.5° (telephoto). With excellent low-light capabilities of 0.02 Lux in daylight and 0.01 Lux at night (IR-cut filter on), it achieves an S/N ratio over 55 dB. Additional features include advanced privacy masking, digital slow shutter, and flexible RS-232 communication control.
Features:
- 1/2.8” 2.13MP SONY STARVIS CMOS Sensor – High sensitivity imaging with excellent low-light performance
- 1080p60 HD Video Output – Smooth, high-definition video capture
- 30x Optical Zoom + 12x Digital Zoom – Long-range monitoring with precision control
- Wide Dynamic Range (WDR) – Maintains detail in high-contrast lighting
- F1.6 Aperture – Enhanced night and low-light visibility
- Advanced Noise Reduction (2D/3D NR) – Cleaner images in challenging conditions
- Multi-Format Video Output – HD-SDI, EX-SDI, LVDS, CVBS, AVI, and TVI support
- IR Cut Filter (ICR) – Automatic day/night operation
- Digital Image Stabilization – Reduces motion and vibration blur
- 256 Zoom/Focus Presets – Fast recall for repeat surveillance positions
Applications:
- Fixed & PTZ Surveillance Systems
- Critical Infrastructure Security
- Industrial Monitoring
- Perimeter & Long-Range Security
- Traffic & ITS Monitoring
- Broadcast & Live Video Systems
| Image Sensor | 1/2.8” 2.13M SONY Progressive Scan STARVIS CMOS |
| Effective Pixels | 1945(H)x1097(V), Unit Cell Size(2.9㎛ X 2.9㎛) |
| Output Format | LVDS/HD-SDI/CVBS:1080p60/50/30/25, 720p60/50/30/25, 1080i60/50 EX-SDI:1080p30/25, 720p60/50/30/25 AVI:1080p30/25 TVI:1080p30/25, 720p30/25 |
| Sensor Operating System | Sensor Master |
| Sync System | Internal |
| CVBS scale | 16:9 / 4:3 (CVBS 960H) |
| LVDS scale | Single / Dual |
| Video Output | LVDS / CVBS HD-SDI / EX-SDI(1.0) / EX-SDI(2.0) / EX-SDI(2.1) / EX-SDI(3.0) HD-TVI |
| Min. Illumination | (Sens-up Off, AGC 60dB) |
| Day | 0.02 Lux @ F1.6 |
| Night (IR-cut filter on) | 0.01 Lux @ F1.6 (IR-cut filter on) |
| S/N ratio | More than 55 dB |
| Optical Lens | |
| Zoom Magnification | X30 |
| Focal Length | 4.3 to 129 mm |
| Horizontal-Angle | 66.9°(W) ~ 2.5°(T) |
| Vertical Angle | 39.7°(W) ~ 1.4°(T) |
| F-value | F1.6(W ) ~ F5.0(T) |
| Zoom | |
| Maximum Zoom Ratio | x1 ~ x360 |
| Optical Zoom Ratio | x1 ~ x30 |
| Digital Zoom Ratio | x1 ~ x12 |
| Digital Pan/Tilt | - |
| Speed (Focus Tracking On) (Focus Tracking Off) | 2.8 ~ 95 sec (default :3.6sec) 2.8 sec |
| Focus | |
| Control Mode | Auto / Manual / Interval / One Shot(=Zoom Trigger, One Push) |
| Focal Range | Infinity~ 1m(T)~0.01m(W) |
| IR Correction | Standard/IR Light/user -20~+20 |
| Day & Night | |
| D&N mode | Auto / Day (Color) / Night (BW) / External-H / External-L |
| White Balance | Auto / ATW / Indoor / Outdoor / Push / Manual |
| Exposure | |
| AE mode | Auto / Shutter Priority / Iris Priority/Manual |
| Brightness (Exp. Comp) | 1~20 |
| AGC Limit | OFF~80dB |
| Manual Shutter | 1/1,1/2,1/4(3),1/8(6),1/15(12),1/30(25),1/60(50) ~ 1/30000 |
| Manual AGC | OFF~80dB |
| Manual Iris | F1.6 ~ F19, Close |
| Sens-Up | Off ~ 32fields |
| ETC | Slow AE response |
| DSP Functions | |
| Digital Slow Shutter | Max. 32 fields |
| Image Freeze | Off / On |
| Image Reverse (E-FLIP) | Off / Horizontal(mirror) / Vertical / H+V(180° flip) |
| Privacy Masking | Sperical Privacy - 8-zone - Interlock / Non-Interlock Mask - 14 mask color selectable, semi-transparency - Pan(0°~360°), Tilt(+90°~-90°) |
| Motion Detect | 4- Zone - Alarm output : OSD / Serial Communication |
| D-WDR | Off/ Low/Middle/High |
| WDR | Off/On, Adjustable(LEVEL: LOW/MIDDLE/HIGH) |
| BLC | Off / On, Area selectable |
| HLC | Off / On, Area selectable |
| AGC | Max.80dB, 0dB~80dB |
| Sharpness | Adjustable(0~15) |
| 3DNR | On/Off (1~5) |
| 2DNR | Auto/Manual |
| Defog | Off/Low/Middle/High |
| Gamma | 0.45/0.50/0.55/0.60 |
| Lens Shading | On / Off |
| Defect Detection | Support |
| Digital Image Stabilizer | On(Level:0~100) /Off |
| Picture Effect | NEGATIVE/Positive, Black&White(Monochrome Image) |
| Position Preset (zoom/focus) | Non-volatile 256 position(zoom/focus) presets. |
| Memory Preset | 16-presets & custom preset |
| OSD Language | English, Japanese, China, Russian, Spanish, German, France, Portuguese |
| Coaxial Communication | TVI-UTC |
| Communication (UART) | |
| Camera ID | 0~255 |
| Remote Control | RS-232 TTL +5.0V (+3.3V Compatible) |
| Control Protocol | VISCA /Pelco-D/Pelco-P/HITACHI : automatically detection |
| Communication Speed | 2400/4800/9600(default)/19200/38400/57600/115200bps selectable |
| Power | |
| Supply Voltage | DC 12V (+9.0V ~ +15V) |
| Supplied Current (motor on) | 250mA(440mA) |
| Consumption (motor on) | 3.0W(5.3W) |
| Physical | |
| WxHxD[mm], Weight[g] | 50x58.8x90.5mm, Approx. 241g |
| Temperature & Humidity | |
| Operating Condition | Temperature (-10°C~50 °C / 14°F~122°F), Humidity (Less than 90%) |
| Storage Condition | Temperature (-20°C~60 °C / -4°F~140°F), Humidity (Less than 90%) |
