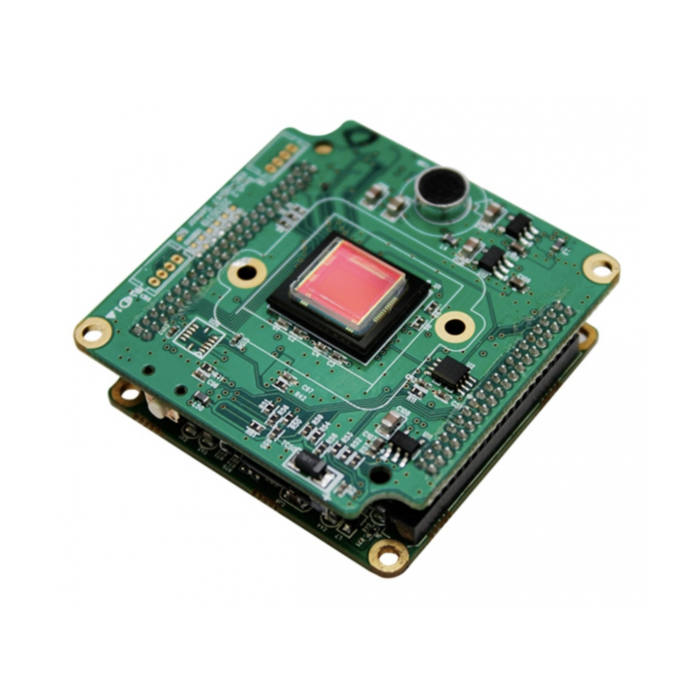

KT&C ACE-HDi47 (ACEHDi47) IP Module Camera
2000 x 1241, 2.43 Megapixel, 1 / 2.8″ SONY Exmor CMOS
SKU
ACE-HDi47
2.8mm, 6mm, 8mm options available
Features:
| Image Sensor | 2.43 Megapixel, 1 / 2.8″ SONY Exmor CMOS |
| Total Pixels | 2000 x 1241 |
| Day & Night | Digital Day & Night, True Day & Night (Optional) |
| Min. Illumination | 0.1 Lux / F2.0 |
| Shutter Speed | 1/30 ~ 1/8000 |
| Focal Length | Bored: 3.7mm (3 MP), 8 mm Lens (1.3MP) Pinhole: 4.3mm P4 Lens (1.3 MP) |
| Lens Type | Fixed Board or Pinhole Lens |
| Maximum Resolution | H.264: 1920 x 1080 (16:9) MJPEG: 1280 x 720 (16:9) |
| Frame Rate | H.264: 30 fps / MJPEG: 30 fps |
| Compression | H.264 / MJPEG |
| Streaming | Dual-Stream at different frame rate and bandwidth |
| Digital Slow Shutter | Off, 2x, 4x (Auto) |
| Image Settings |
Brightness, Contrast, Saturation, Sharpness, White balance, Exposure control, Image rotation, Text and image overlay, Privacy masking, BLC, D-WDR, 3D DNR |
| Streaming | One-way |
| Compression | G.711, G.726 |
| Input / Output | Internal Microphone |
| LAN | Ehternet 10/100 Base-T (RJ-45 Type) |
| Security | Multiple user access levels with password protection, HTTPS(SSL) |
| Protocol | IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnP |
| ONVIF Compliant | Yes |
| Interface | OS: Windows XP / Vista / 7 Browser: Internet Explorer |
| Video Motion Detection | Yes |
| Alarm Triggers | Intelligent video, manual triggers, network fail, reboot |
| Alarm Events | JPEG image upload via FTP & Email, notification via E-mail, recording AVI or JPEG using Micro-SD |
| Processors | CPU: ARM 1136J-S |
| Memory | RAM: 256MB, Flash: 256MB |
| Power | PoE class 3 (IEEE 802.3af) DC 12V 220mA |
| Interface | Service video connector Power (DC 12V) Input Status LED |
| Local Storage | MicroSD/SDHC up to 32GB |
| Operating Temperature | -10 ˚C ~ 50 ˚C (14 ˚F ~ 122 ˚F) |
| Conditions | Humidity 20 ~ 80% RH (No Condensing) |
| Dimension | 1.65 x 1.65 x 1.2 inch (42 x 42 x 30 mm) |
| Weight | 0.2 lbs (110 g), (Including PoE Active Splitter) |
