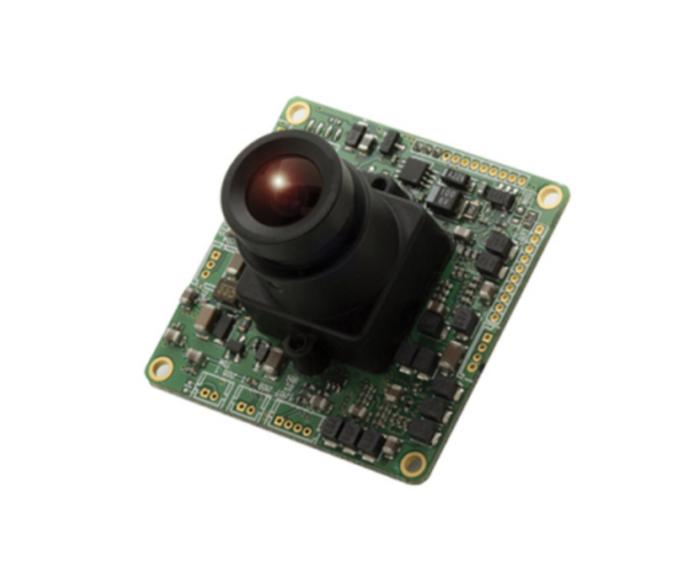

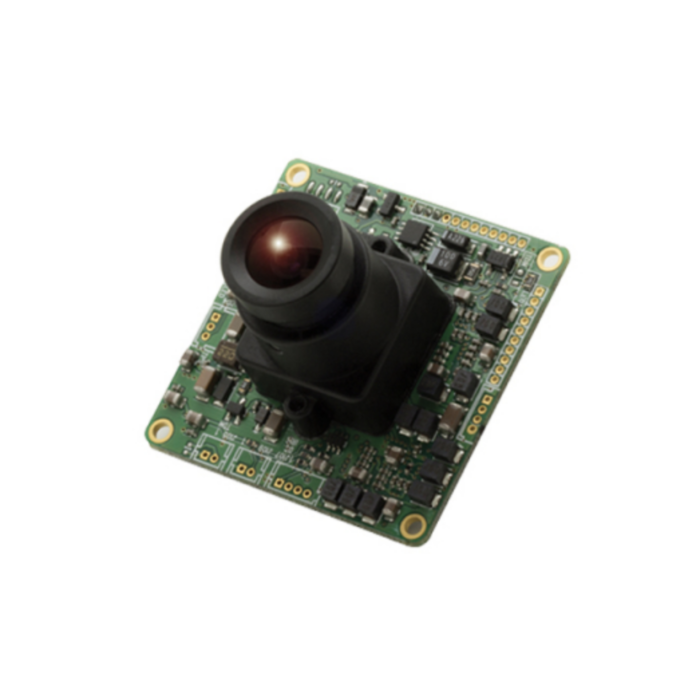

KT&C ACE-c2MIB4 Mini HD-TVI Board Camera, 1/2.7" CMOS, 1080p, 3.7mm Lens, 31.75mm x 31.75mm x 19.4mm
SKU
KT&C ACE-c2MIB4
Quick Overview
KT&C ACE-c2MIB4 Mini HD-TVI Board Camera, NDAA compliance, 1930 x 1088, 1/2.7” Progressive Scan CMOS, 3.7mm board lens, digital Day/Night, 12VDC, 31.8 x 31.8 x 19.0 mm housing.
The KT&C ACE-c2MIB4 (ACEc2MIB4) Mini HD-TVI Board Camera delivers discreet high-definition surveillance in a lightweight board-level design. Equipped with a 1/2.7” progressive scan CMOS sensor, it produces 1080p full HD video at 30fps with sharp detail and accurate color reproduction. The camera supports EZHD-TVI transmission technology
| Image Sensor | 1/2.7” PROGRESSIVE SCAN CMOS |
| Total Pixels | 1930 (H) x 1088 (V) |
| Unit Cell Size | 3.0um (H) x 3.0um (V) |
| Video Output Mode | HD-TVI : 1080P 30fps(25fps) |
| Transmission Distance | HD-TVI : Color 300m@RG59 |
