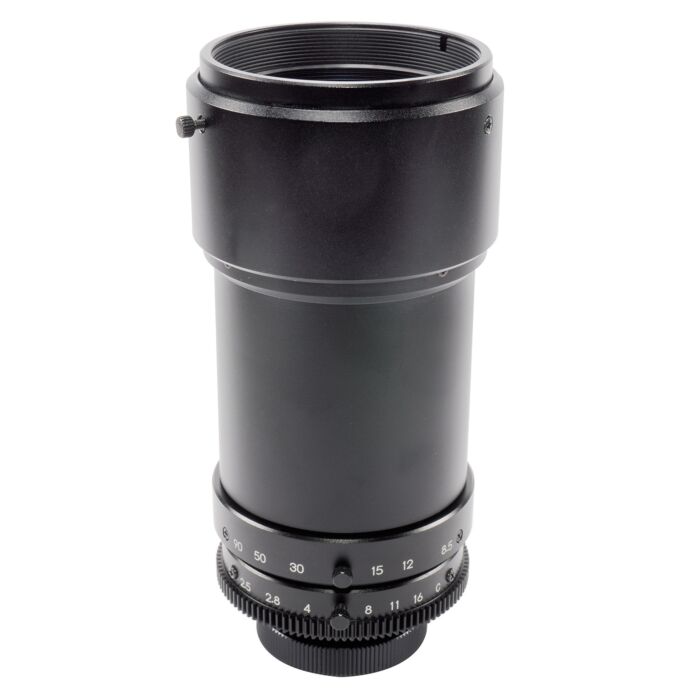

Kowa LMZ50M | 1/3" inf~0.7x Macro Zoom Lens (Discontinued)
*Product is Discontinued, Call For Replacement Options
Enhance your imaging precision with the Kowa LMZ50M Macro Zoom Lens from Aegis Electronic Group Inc. Perfect for machine vision and industrial applications. Contact us today!
Unlock Precision with the Kowa LMZ50M Macro Zoom Lens for Machine Vision and Industrial Applications
Aegis Electronic Group Inc. proudly presents the Kowa LMZ50M 1/3" inf~0.7x Macro Zoom Lens, an essential tool for precision-focused machine vision and industrial applications. With a focal length ranging from 8.5mm to 90mm and up to 10x magnification, this lens offers exceptional flexibility and performance. The Kowa LMZ50M features a C-mount, manual zoom, manual iris, and manual focus control, making it highly adaptable to various imaging needs.
This lens is designed to deliver high-resolution imagery, boasting a center resolution of 100 lp/mm and a corner resolution of 60 lp/mm. Its VIS wavelength range (380nm - 780nm) ensures optimal performance across the visible spectrum. With a robust construction that operates within a temperature range of -10°C to +50°C, the Kowa LMZ50M is built to withstand demanding industrial environments.
Ideal for applications such as quality control, inspection systems, and automated imaging processes, this macro zoom lens provides unparalleled clarity and precision. Enhance your imaging capabilities with the Kowa LMZ50M, and experience the superior quality that Aegis Electronic Group Inc. is known for. Contact us today to learn more about how this versatile lens can meet your specific needs.
Features:
- Focal length: 8.5-90mm
- Up to 10x magnification
- C-mount compatible
- Manual zoom, iris, and focus control
- High resolution: 100 lp/mm (center), 60 lp/mm (corner)
- VIS wavelength range (380nm - 780nm)
- Robust construction (-10°C to +50°C operating temperature)
- Compact size: Ø60 x 130mm
- Lightweight: 437g
Applications:
- Quality control systems
- Inspection systems
- Automated imaging processes
- Precision measurement
- Robotics vision systems
- Surface inspection
- Assembly line monitoring
| Focal Length (mm) | 8,5-90 mm |
| Sensor Size | 1/3" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2,5 |
| Lens Type | Manual Zoom, Vario Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,15 - ∞ |
| Focus Control | Manual |
| Zoom Control | Manual |
| Resolution (Center, Corner) | 100lp/mm,60lp/mm |
| TV Distortion (%) | W |
| Back Focus in Air (mm) | 24,49 |
| Filter Size (mm) | M48 x P0,75 |
| Size (mm) | Ø60 X 130 |
| Weight | 437 |
| Temperature Range | -10°C - +50°C |
| Series | Macro Zoom |
| Application | Machine Vision |
