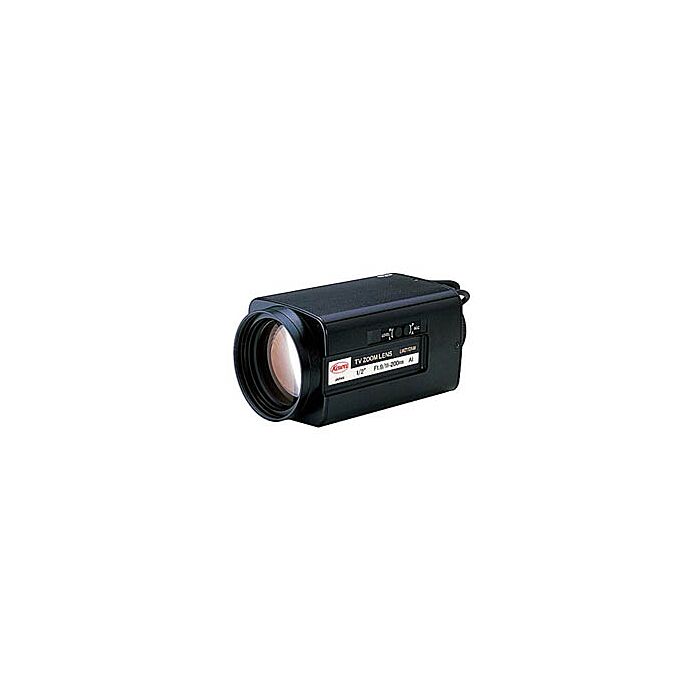

Kowa LMZ112AM | 1/2" 11-200mm Zoom Auto Iris Lens (Discontinued)
SKU
LMZ112AM
Quick Overview
*Product is discontinued, Call For Replacement Options
1/2", 11 to 200 mm, Auto Iris Lens.
Common in lenses in the broadcast industry, the 3-Cam Design is also incorporated in Kowa’s varifocal and zoom lenses. This innovative system has solved the problem of de-centering which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam Design also reduces internal reflection. As a result, the image obtained by this design is much sharper than that of the conventional pole system. With the 3-Cam Design, the customer can expect higher optical performance and a longer service life.
Features:
Applications:
| Focal Length (mm) | 16 |
| Lens Type | Fixed |
| Image Size (mm) | 2/3" (Φ11) |
| Iris Range (F-stop) | F1.4 ~ F16 |
| Focusing Range (m) | 0.2 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 112.8(H) x 84.4(V) |
| Angle of View 2/3" (°) | 30.0 x 22.7 |
| Angle of View 1/2" (°) | 21.8 x 16.4 |
| Angle of View 1/3" (°) | 16.4 x 12.3 |
| Resolution (Center, Corner) | 120lp/mm, 100lp/mm |
| TV Distortion (%) | -0.05 |
| Back Focus in Air (mm) | 13.1 |
| Mount | C-Mount |
| Filter Thread Size (mm) | M25.5 x P0.5 |
| Front/Rear Effective DIA (mm) | Φ20.2, Φ15.5 |
| Exit Pupil | 340 |
| Size (mm) | Φ33 x 36.5 |
| Weight (g) | 81 |
| Temperature Range (°C) | -10 ~ +50 |
