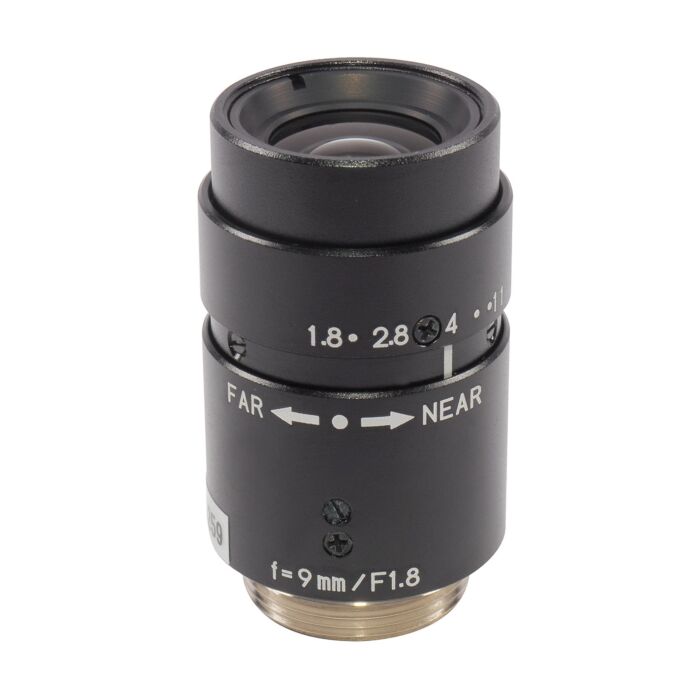

Kowa LM9NF | 9mm 1/3" Format NF Mount Fixed Lens
Discover the Precision and Quality of the Kowa LM9NF 9mm Fixed Lens
Aegis Electronic Group Inc. proudly offers the Kowa LM9NF 9mm 1/3" Format NF Mount Fixed Lens, designed to meet the rigorous demands of industrial and machine vision applications. This lens stands out with its compact and featherweight NF mount optics, ensuring it fits seamlessly into any setup without adding bulk. The lens boasts a megapixel resolution, providing crystal-clear images crucial for precision tasks.
Constructed with a robust metal body and mount, the Kowa LM9NF ensures durability and long-lasting performance in various environments. The manual iris control allows for precise adjustments with an iris range from F1.8 to F11, while the manual focus control offers flexibility for focusing from 0.1 meters to infinity. The locking screws for both aperture and focus ensure settings remain stable during operations.
This fixed focal lens covers the visible wavelength range (380nm - 780nm) and offers a high resolution of 100 lp/mm at the center and 80 lp/mm at the corners, minimizing distortion and delivering sharp images. Its compact size (Ø22 x 34 mm) and light weight (40 g) make it ideal for integration into machine vision systems, industrial inspection, and broadcast applications.
Invest in the Kowa LM9NF lens from Aegis Electronic Group Inc. to elevate the performance and reliability of your imaging systems.
Features:
- Compact and featherweight NF mount optics
- Megapixel resolution
- Durable metal body and mount
- Locking screws for aperture and focus
- Manual iris control (F1.8 - F11)
- Manual focus control (0.1 m to infinity)
- High center resolution (100 lp/mm)
- VIS wavelength range (380nm - 780nm)
- Size: Ø22 x 34 mm
- Weight: 40 g
Applications:
- Industrial inspection systems
- Automated quality control
- Robotics and automation
- Surveillance and security systems
- Broadcast and media production
- Scientific and laboratory imaging
- High-precision measurement systems
| Focal Length (mm) | 9 mm |
| Sensor Size | 1/3" |
| Pixel Size (µm) | 4,5 |
| Mount | NF-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,8 - 11 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 58,1 |
| Shooting range at MOD, vertical (mm) | 43,3 |
| Resolution, Center (lp/mm) | 100 |
| Resolution, Corner (lp/mm) | 80 |
| Distortion (TV) (%) | -0,6 |
| Back focus in air (mm) | 8,6 |
| Filter Size (mm) | no |
| Size (mm) | Ø22 X 34 |
| Weight (g) | 40 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | NF |
| Application | Machine Vision, Broadcast |
