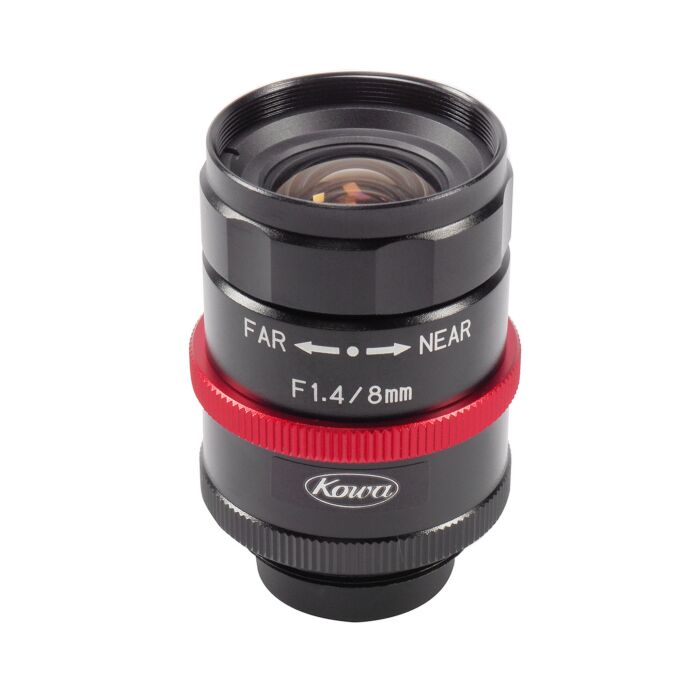

Kowa LM8JCM-V | 2/3" Ruggedized 8mm 2MP C-Mount Megapixel Lens
Enhance Your Machine Vision Systems with the Kowa LM8JCM-V Ruggedized Lens
Aegis Electronic Group Inc. is proud to present the Kowa LM8JCM-V 2/3" Ruggedized 8mm 2MP C-Mount Megapixel Lens, a top-tier choice for industrial and machine vision applications. This lens is designed for sensors with a pixel size of 4.5μm or larger and is compatible with popular sensors like the OnSemi Python500, e2v EV76C570, and Aptina MT9M131. The Kowa LM8JCM-V excels in environments subject to strong vibrations and shocks, making it ideal for demanding industrial settings.
With a focal length of 8mm and a wide iris range from F1.4 to F16, this lens offers exceptional image clarity and precision. Its manual focus and iris control allow for precise adjustments, ensuring optimal performance in various conditions. The lens boasts high-resolution capabilities, with 120 lp/mm at the center and 100 lp/mm at the corners, providing sharp and detailed images across the entire frame.
Applications benefiting from the Kowa LM8JCM-V include machine vision systems, quality control inspection, robotics, and automation. Its robust construction ensures longevity and reliability, even in harsh industrial environments. Choose the Kowa LM8JCM-V lens from Aegis Electronic Group Inc. for unparalleled performance in your vision systems.
Features:
- Ruggedized design for vibration and shock resistance
- Compatible with 2/3" sensors with 4.5μm pixel size or larger
- Manual iris and focus control for precision
- High resolution: 120 lp/mm center, 100 lp/mm corner
- Wide iris range: F1.4 to F16
- Fixed focal length of 8mm
- Suitable for visible wavelength range (380nm - 780nm)
Applications:
- Machine vision systems
- Quality control inspection
- Robotics
- Automation
- Industrial monitoring
- High-speed imaging
- Precision measurement
| Focal Length (mm) | 8 |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F1.4 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 120.3 |
| Shooting range at MOD, vertical (mm) | 90.0 |
| Resolution, Center (lp/mm) | 120 |
| Resolution, Corner (lp/mm) | 100 |
| Megapixel | 2 |
| Distortion (TV) (%) | -0,6 |
| Back focus in air (mm) | 9,74 |
| Filter Size (mm) | M72 x P0,5 |
| Size (mm) | Ø33 X 41,6 |
| Weight (g) | 88 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | JCM-V |
| Application | Machine Vision |
