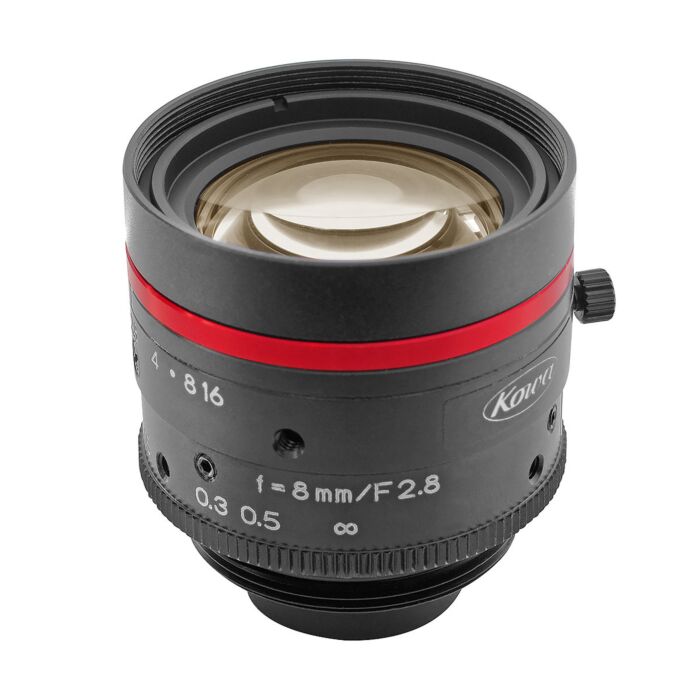

Kowa LM8JC5MC | 2/3" Ultra Compact 5MP Lens
High-Performance Kowa LM8JC5MC 5MP Lens for Machine Vision and Industrial Applications
The Kowa LM8JC5MC 2/3" Ultra Compact 5MP Lens is a top-tier solution designed to meet the rigorous demands of modern machine vision and industrial applications. Renowned for its exceptional image quality, this lens supports sensors with a pixel size as small as 3.45μm, making it compatible with high-performance Sony IMX250, IMX252, IMX264, IMX265 sensors, and many others. As the smallest 5 megapixel lens in its class, the Kowa LM8JC5MC is engineered to deliver unparalleled resolution and clarity, with center resolution reaching 160 lp/mm and corner resolution at 100 lp/mm.
Its compact design (Ø32 x 27 mm) and lightweight build (55g) make it ideal for space-constrained setups. The lens features a manual iris control with an iris range from F2.8 to F16, ensuring precise adjustment to match varying lighting conditions. The lens's focusing range spans from 0.15 meters to infinity, providing flexibility for diverse imaging requirements.
This lens is perfect for applications such as automated inspection systems, robotics, and other industrial environments where high-resolution and high-accuracy imaging are paramount. The Kowa LM8JC5MC lens enhances the performance of machine vision systems, enabling detailed analysis and improved productivity.
Features:
- Ultra-compact design
- 5MP resolution
- Compatible with 2/3" sensors
- Manual iris control (F2.8 to F16)
- Focus control from 0.15m to infinity
- High-resolution imaging (160 lp/mm center, 100 lp/mm corner)
- Suitable for VIS wavelength range (380nm - 780nm)
- Lightweight and small form factor
Applications:
- Automated inspection systems
- Robotics
- Quality control
- High-speed production lines
- Precision measurement systems
- Medical imaging equipment
- Surveillance systems
| Focal Length (mm) | 8 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 3,45 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2,8 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,15 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 178 |
| Shooting range at MOD, vertical (mm) | 132 |
| Resolution, Center (lp/mm) | 160 |
| Resolution, Corner (lp/mm) | 100 |
| Megapixel | 5 |
| Distortion (TV) (%) | -0,85 |
| Back focus in air (mm) | 10,8 |
| Filter Size (mm) | M30,5 x P0,5 |
| Size (mm) | Ø32 X 27 |
| Weight (g) | 55 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | JC5MC |
| Application | Machine Vision |
