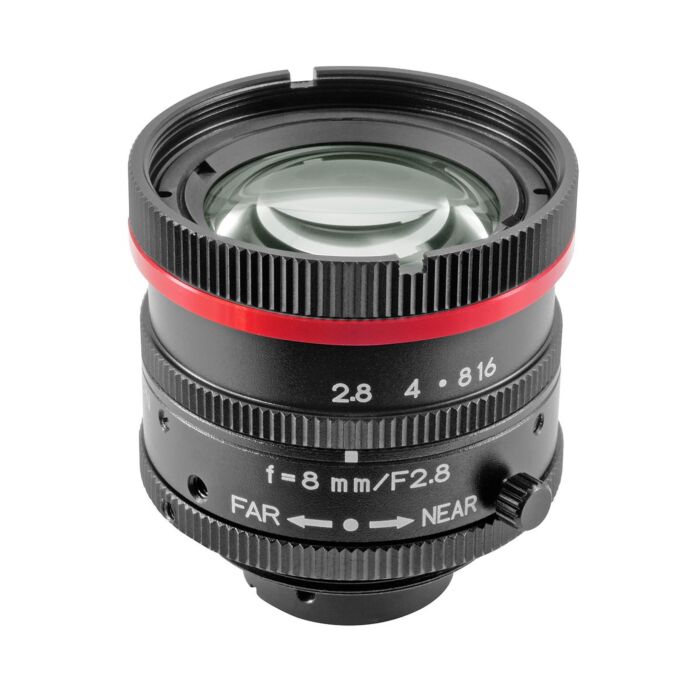

Kowa LM8JC5MC-WP | 8mm Ultra Compact 2/3" Ruggedized Waterproof Lens
Enhance Your Industrial and Machine Vision Systems with Kowa LM8JC5MC-WP Ultra-Compact Lens
Aegis Electronic Group Inc. offers the Kowa LM8JC5MC-WP, an ultra-compact 2/3" 5 megapixel C-Mount lens designed for superior performance in demanding industrial and machine vision applications. This lens stands out for its small size, lightweight build, and robust construction, making it ideal for environments where space is limited and durability is paramount. The LM8JC5MC-WP is waterproof with an IP67 rating, ensuring reliable operation in wet and dusty conditions. It also incorporates a unique mechanical design that provides exceptional resistance to strong vibrations and shocks, essential for maintaining precision in high-motion environments.
Key features include a focal length of 8mm, manual iris control with an F-stop range of F2.8 to F16, and a minimum focus distance of 0.15 meters. The lens supports high-resolution imaging with a center resolution of 160lp/mm and is compatible with sensors like Sony’s IMX250 and IMX252, offering unparalleled clarity and detail.
This lens is perfect for applications such as automated inspection, robotics, surveillance, and other machine vision systems where image quality and durability are critical. With Kowa’s JC5MC-WP, achieve precise, high-quality imaging even in the most challenging conditions.
Features:
- Ultra-compact and lightweight design
- 2/3" 5 megapixel resolution
- C-Mount compatibility
- Waterproof with IP67 rating
- Vibration and shock resistant
- Manual iris control (F2.8 to F16)
- High resolution (160lp/mm center)
- Suitable for sensors with pixel sizes ≥ 3.5μm
- Suitable for Sony IMX250, IMX252, IMX264 and IMX265 and many other sensors
- Click-type iris mechanism for easy F-number adjustments
Applications:
- Automated inspection systems
- Robotics vision systems
- Industrial surveillance
- High-motion imaging environments
- Precision measurement systems
- Outdoor machine vision tasks
- High-resolution imaging projects
| Focal Length (mm) | 16 |
| F-Number | F=2.8-16 |
| Picture Size | 6.6 x 8.8mm / 5.4 x 7.2mm / 4.8 x 6.4mm |
| Angle Of View | VER. ANGLE: 44.4° / 36.7° / 32.8° HOR. ANGLE: 57.6° / 48.1° / 43.1° DIA. ANGLE: 69.3° / 58.8° / 53.0° |
| Distortion (TV) | -0.85% / -0.95% / -0.87% |
| Field Of View | VERTICAL: 132mm / 107mm / 95mm HORIZONTAL: 178mm / 144mm / 127mm DIAMETER: 226mm / 183mm / 161mm |
| Minimum Focus Distance | 0.15m |
| Flange Back | 17.526mm in air |
| Back Focus | 10.8mm in air |
| Filter Screw Size | M30.5x0.5 |
| Front/Rear Effective Diameter | FRONT Ø21.5mm REAR Ø11.9mm |
| Mount | C-Mount |
| Exit Pupil | -42.8mm |
| Temperature Range | -10°C - +50°C |
| Storage Temperature Range | -20°C - +60°C |
| Resolution Center/Corner | CENTER 160lp/mm CORNER 100lp/mm |
| Weight | 52g |
