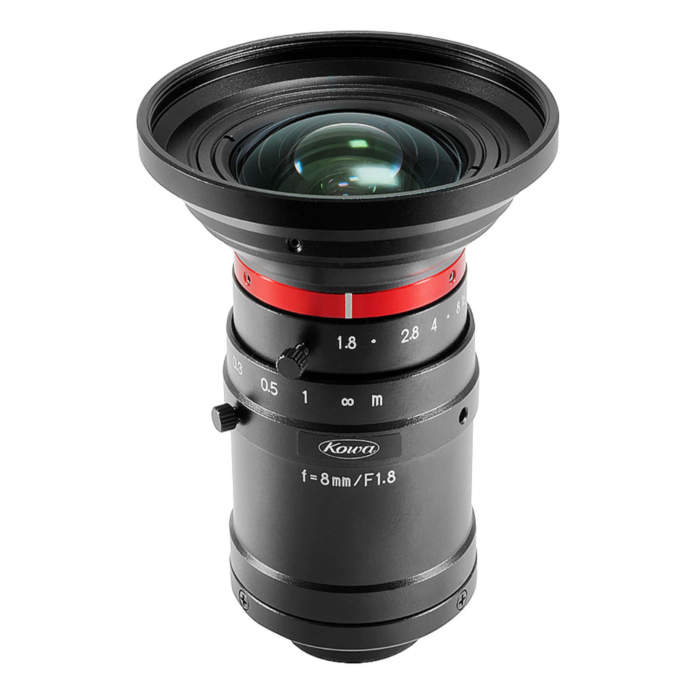

Kowa LM8HC-VIS-SW | 1" 8mm 12MP VIS-SWIR Lens
Unlock Superior Imaging with the Kowa LM8HC-VIS-SW 12MP Lens for Machine Vision and Industrial Applications
The Kowa LM8HC-VIS-SW 1" 8mm 12MP VIS-SWIR lens is a high-performance lens designed for industrial and machine vision applications, offering excellent imaging quality across a wide spectral range from 450nm to 2000nm. This makes it an ideal choice for both visible and short-wave infrared (SWIR) applications, particularly in industries that rely on precision optics.
Engineered for compatibility with the Sony IMX990 and IMX991 sensors, the Kowa LM8HC-VIS-SW is perfect for tasks requiring highly detailed imaging with minimal distortion. With a fixed focal length of 8mm, this lens offers exceptional clarity and resolution, ensuring sharp imagery even in challenging conditions. The robust build and compact design, along with a C-mount fitting, make it versatile for various machine vision setups, including broadcast, traffic control, and inspection systems.
Its advanced construction allows it to perform efficiently in a range of environments, withstanding temperatures between -10°C and +50°C, while its 12MP resolution ensures that every detail is captured with precision. This lens is an excellent solution for customers looking to optimize their imaging systems for industrial use, where high-quality, reliable optics are essential.
Features:
- 12 Megapixel resolution
- Wide spectral range: 450nm - 2000nm (VIS-SWIR)
- Low distortion (-3.7% TV distortion)
- Compact design with manual focus and aperture control
- Compatible with 1" sensors, including Sony IMX990 and IMX991
- 8mm fixed focal length with minimal aberration
- Rugged design for harsh environments (-10°C to +50°C)
Applications:
- Traffic control and Intelligent Transportation Systems (ITS)
- Industrial machine vision inspections
- Broadcast and media production
- Imaging solutions in harsh environments
- Precision measurement systems
- SWIR imaging for material and defect detection
- Medical imaging applications
| Focal Length (mm) | 8mm |
| Image Size (mm) | 12.8x9.6 (Φ16) |
| Iris Range (F-Stop) | F1.8 ～ F16 |
| Focusing Range (m) | 0.2~∞ |
| Iris | Manual |
| Focus | Manual |
| Shooting Range at M.O.D. (mm) | 387.0(H)x272.0(V) |
| Angle Of View (Degrees) | 1" - 81.3 x 63.5 2/3" - 58.7 × 44.8 1/1.8" - 48.6 × 36.9 |
| Resolution (Center, Corner) | 160lp/mm, 80lp/mm |
| TV Distortion (%) | -3.1 |
| Back Focus in Air (mm) | 11.1 |
| Mount | C-Mount |
| Filter Thread (mm) | M55xP0.75 |
| Size (mm) (∞) | Φ58×79.5 |
| Weight (g) | 210 |
| Temperature Range | 10°C~+50°C |
