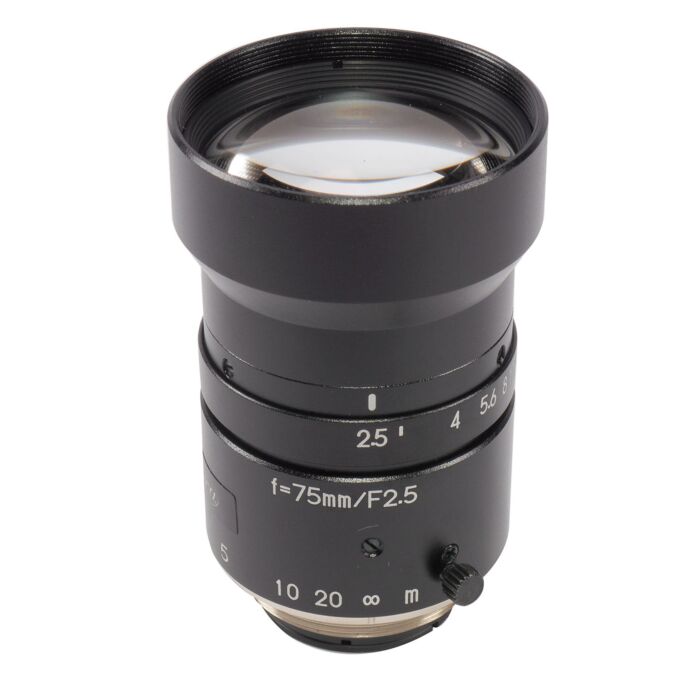

Kowa LM75JC1MS | 2/3" 75mm 2MP C-Mount Lens
Enhance Your Machine Vision System with Kowa LM75JC1MS 75mm 2MP C-Mount Lens
Aegis Electronic Group Inc. proudly offers the Kowa LM75JC1MS 75mm 2MP C-Mount lens, a top-tier choice for machine vision and industrial applications. This lens is specifically designed for sensors with a pixel size of 4.5μm or more, ensuring exceptional image clarity and precision. Compatible with popular sensors such as the OnSemi Python500, e2v EV76C570, and Aptina MT9M131, this lens provides versatility and reliability in various imaging scenarios.
The Kowa LM75JC1MS features a 75mm focal length and a 2/3" sensor size, delivering high-resolution images with a center resolution of 100 lp/mm and a corner resolution of 80 lp/mm. The manual iris control, with an iris range of F2.5 to F22, allows for precise adjustments to suit different lighting conditions. With a focusing range from 1.2 meters to infinity, this lens is perfect for applications requiring detailed, close-up imaging.
Ideal for use in industrial inspection, quality control, and automated imaging systems, the Kowa LM75JC1MS ensures high performance with minimal distortion (-0.1%). Its robust construction, compact size (Ø36 x 51 mm), and lightweight design (105g) make it an excellent choice for demanding environments. Experience the superior optical performance of Kowa lenses with Aegis Electronic Group Inc.
Features:
- 75mm focal length
- 2MP resolution
- Suitable for OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more
- Manual iris control (F2.5 - F22)
- Minimal distortion (-0.1%)
- Robust and lightweight design
Applications:
- Industrial inspection
- Quality control
- Automated imaging systems
- Machine vision applications
- Detailed close-up imaging
| Focal Length (mm) | 75 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2,5 - 22 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 1,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 132,6 |
| Shooting range at MOD, vertical (mm) | 99,6 |
| Resolution (Center, Corner) | 100lp/mm,80lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,1 |
| Back Focus in Air (mm) | 18 |
| Filter Size (mm) | M34 x P0,5 |
| Size (mm) | Ø36 X 51 |
| Weight | 105 |
| Temperature Range | -10°C - +50°C |
| Series | JC1MS |
| Application | Machine Vision |
