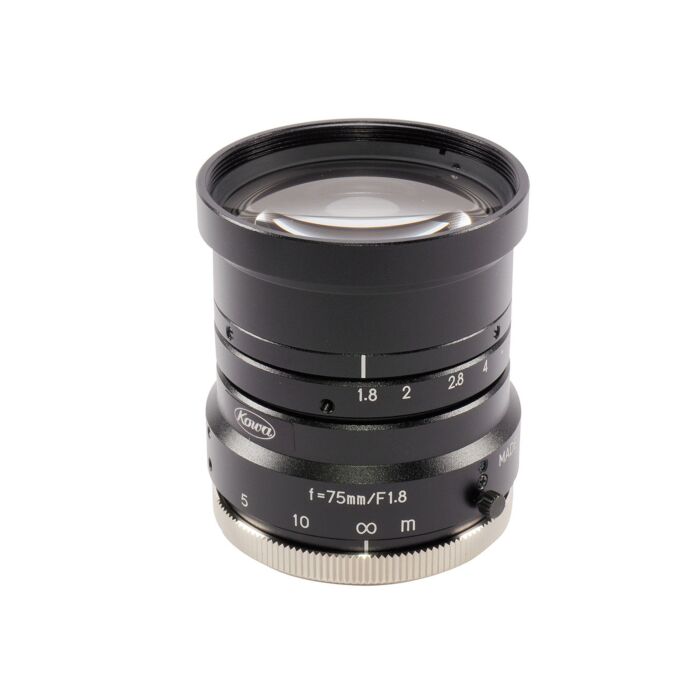

Kowa LM75HC | 1" Format 75mm Megapixel Lens
Enhance Your Machine Vision and Industrial Applications with the Kowa LM75HC Lens
The Kowa LM75HC 1" 75mm 5MP C-Mount Lens, available at Aegis Electronic Group Inc., represents a pinnacle of optical precision designed for advanced machine vision and industrial applications. Engineered with meticulous attention to detail, this lens is compatible with sensors featuring a pixel size of 5.0μm, including the Sony IMX174, CMOSIS CMV4000, and Sony IMX249, ensuring outstanding image quality.
This lens offers a focal length of 75mm and is designed to deliver exceptional resolution with 120 lp/mm at the center and 80 lp/mm at the corners. The manual iris control provides an iris range from F1.8 to F16, allowing precise adjustments to match varying light conditions. Its robust construction supports a temperature range from -10°C to +50°C, making it suitable for diverse environments.
Ideal for applications such as broadcast, intelligent transportation systems (ITS), traffic control, and a wide array of machine vision tasks, the Kowa LM75HC lens ensures high performance and reliability. Its fixed focal design minimizes distortion (-0.2% TV) and offers a focusing range from 1 meter to infinity, providing flexibility for various imaging needs.
Experience the superior clarity and reliability that the Kowa LM75HC lens brings to your industrial and machine vision applications.
Features:
- Focal length: 75mm
- Sensor size: 1"
- Pixel size compatibility: 5.0μm
- Suitable for Sony IMX174, CMOSIS CMV4000, Sony IMX249
- Manual iris control (F1.8 - F16)
- Fixed focal lens with high resolution (120 lp/mm center, 80 lp/mm corners)
- Low distortion (-0.2% TV)
- Operating temperature: -10°C to +50°C
- Compact and lightweight (Ø49 x 57mm, 195g)
Applications:
- Broadcast imaging
- Intelligent transportation systems (ITS)
- Traffic control systems
- High-resolution machine vision tasks
- Industrial inspection and quality control
- Surveillance and security applications
- Automated manufacturing processes
| Focal Length (mm) | 75 mm |
| Sensor Size | 1" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,8 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 165,5 |
| Shooting range at MOD, vertical (mm) | 123,9 |
| Resolution (Center, Corner) | 120lp/mm,80lp/mm |
| Megapixel | 5 |
| TV Distortion (%) | -0,2 |
| Back Focus in Air (mm) | 14,5 |
| Filter Size (mm) | M46 x P0,75 |
| Size (mm) | Ø49 X 57 |
| Weight | 195 |
| Temperature Range | -10°C - +50°C |
| Series | HC |
| Application | Broadcast, ITS/Traffic Control, Machine Vision |
