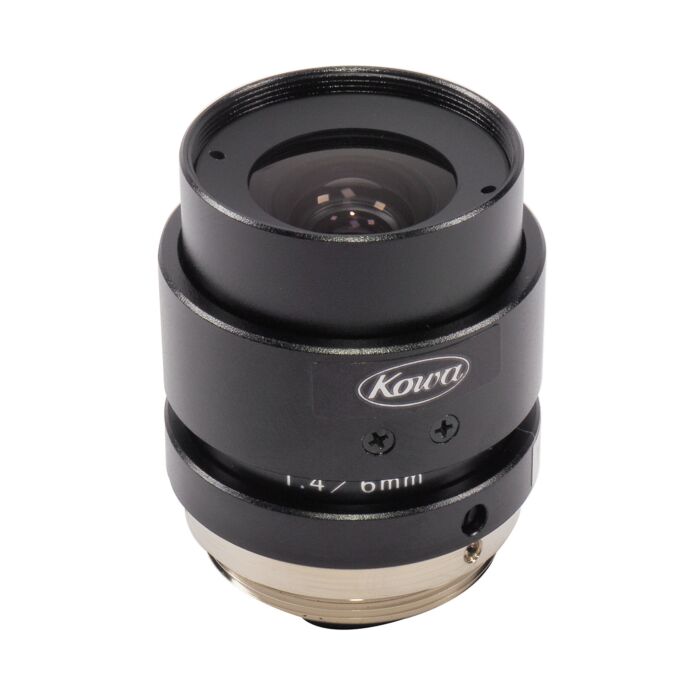

Kowa LM6NCL | 1/1.8" 6mm C-Mount Wide Angle NCL Lens
Elevate Precision with the Kowa LM6NCL 6mm C-Mount Lens
The Kowa LM6NCL is an outstanding industrial and machine vision lens designed to provide high precision in imaging applications. Manufactured by Kowa, a trusted name in optical technology, this lens offers a focal length of 6mm and features a robust C-mount design. Equipped with a locking screw, it ensures stable positioning, perfect for applications requiring secure adjustments. The Kowa LM6NCL’s manual iris control (F1.4 to F16) provides users with enhanced control over light exposure, allowing for optimal performance in a variety of lighting conditions.
This lens is specifically built for industrial and machine vision systems, making it ideal for use in automated inspection, robotics, and quality control. The high resolution of 100 lp/mm at the center and pixel size support of 5.0μm ensures sharp, detailed imaging, which is essential for applications that demand precision and accuracy. Operating efficiently in temperatures ranging from -10°C to +50°C, it’s highly durable and reliable in demanding environments.
Compact and lightweight (Ø31 x 34 mm, 60g), the Kowa LM6NCL can be easily integrated into various systems without compromising on performance. Ideal for industries requiring high-quality imaging such as medical imaging, manufacturing, and industrial monitoring, this lens is a top choice for machine vision experts.
Features:
- 1/1.8" sensor compatibility
- 6mm focal length, C-mount design
- Manual iris control (F1.4 to F16)
- High resolution: 100 lp/mm center, 60 lp/mm corner
- Low distortion (-1%)
- Supports 5.0μm pixel size
- Locking screw for secure adjustments
- Operates in -10°C to +50°C
- Compact size: Ø31 x 34 mm, 60g
Applications:
- Automated inspection systems
- Robotics and automation
- Quality control and assurance processes
- Medical imaging technology
- Precision measurement tools
- Surveillance and security systems
- Manufacturing process control
- Packaging and material handling systems
- Industrial monitoring and analysis
| Focal Length | 6mm |
| Sensor Size | 1/1.8" |
| Pixel Size (µm) | 5 |
| Mount | C-mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,4 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 255 |
| Shooting range at MOD, vertical (mm) | 188,7 |
| Resolution, Center (lp/mm) | 100 |
| Resolution, Corner (lp/mm) | 60 |
| Distortion (TV) (%) | -1 |
| Back focus in air (mm) | 9,5 |
| Filter Size (mm) | M25,5 x P0,5 |
| Size (mm) | Ø31 X 34 |
| Weight (g) | 60 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | NCL |
| Application | Machine Vision |
