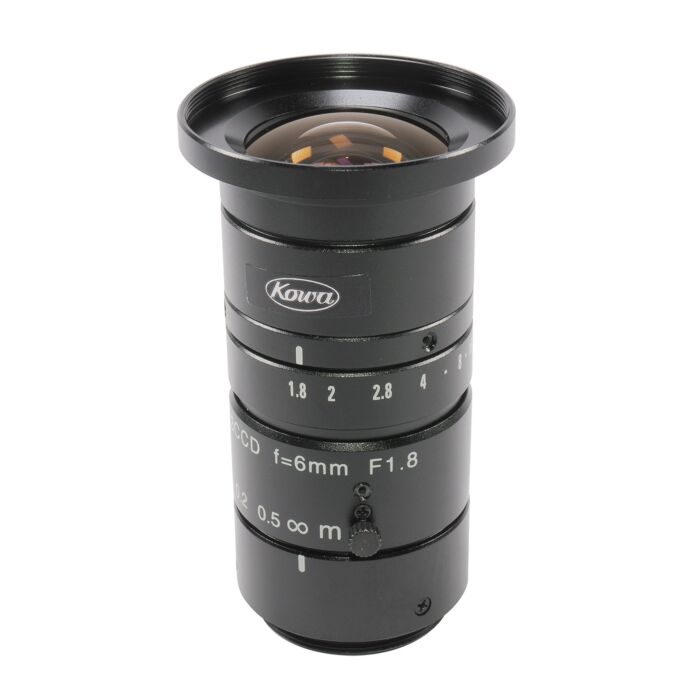

Kowa LM6NC3 6mm 3CCD Megapixel Lens: Precision and Durability for Machine Vision and Industrial Applications
The Kowa LM6NC3 6mm 3CCD Megapixel Lens is a high-precision optical solution designed to meet the demands of both industrial and commercial machine vision applications. Known for its robust metal housing and reliable performance, this lens is ideal for environments requiring durability and accuracy. With a focal length of 6mm, a wide field of view (117mm horizontally, 95mm vertically), and a manual iris control (aperture range from F1.8 to F16), it offers exceptional flexibility in various lighting conditions. The C-mount configuration ensures compatibility with a wide range of industrial cameras, while the locking screws on the iris and focus ensure stable operation in high-vibration settings.
Kowa lenses are renowned for their sharp image resolution, featuring 120 lp/mm at the center and 100 lp/mm at the edges, perfect for high-resolution imaging requirements. Additionally, the lens’s broad wavelength range (400nm – 1000nm) allows it to be used in both visible and near-infrared applications.
This lens is especially well-suited for applications in machine vision, broadcasting, and surveillance, where precision and consistency are critical. Its peak coating ensures minimal distortion (-2.1% TV distortion) and high image quality even under challenging conditions. The Kowa LM6NC3 offers superior optical performance, enhancing productivity and accuracy in demanding industrial environments.
Features:
- Focal length: 6mm
- Aperture range: F1.8 – F16 (manual control)
- Metal housing and mount for durability
- C-mount configuration
- Locking screws for iris and focus
- 120 lp/mm resolution (center), 100 lp/mm (edges)
- Wide field of view: 117mm horizontal, 95mm vertical
- Suitable for 1/2" sensors
- Temperature range: -10°C to +50°C
Applications:
- Automated inspection systems
- Robotics and automation
- Optical metrology
- Quality control in manufacturing
- Surveillance and security systems
- Broadcasting and production studios
- Scientific imaging systems
| Image Size | 1/1.8" (7.2 x 5.4 x 9mm) |
| Focal Length | 6mm |
| Iris Range (F-Stop) | F1.8 - F16 |
| Minimum Focus Distance | 0.1m |
| Mount | C-Mount |
| Angle of View 1/1.8" (Hor. x Ver. x Dia.) | 65.3 x 50.1 x 78.8° |
| Angle of View 1/2" (Hor. x Ver. x Dia.) | 58.8 x 44.9 x 71.5° |
| Angle of View 1/3" (Hor. x Ver. x Dia.) | 45.7 x 33.9 x 55.3° |
| Field of View at M.O.D. 1/1.8" (Hor. x Ver. x Dia.) | 146.9 x 107.2 x 188.8mm |
| Field of View at M.O.D. 1/2" (Hor. x Ver. x Dia.) | 128.9 x 94.5 x 165.3mm |
| Field of View at M.O.D. 1/3" (Hor. x Ver. x Dia.) | 94.5 x 69.9 x 120.1mm |
| TV Distortion | -2.4% |
| Flange Back | 17.526mm in air |
| Back Focus | 15.2mm in air |
| Filter Thread Size | M37.5 x P0.5 |
| Front / Rear Effective Diameter | Front Φ24.0mm / Rear Φ13.2mm |
| Exit Pupil Location | 613mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Weight | 105g |
