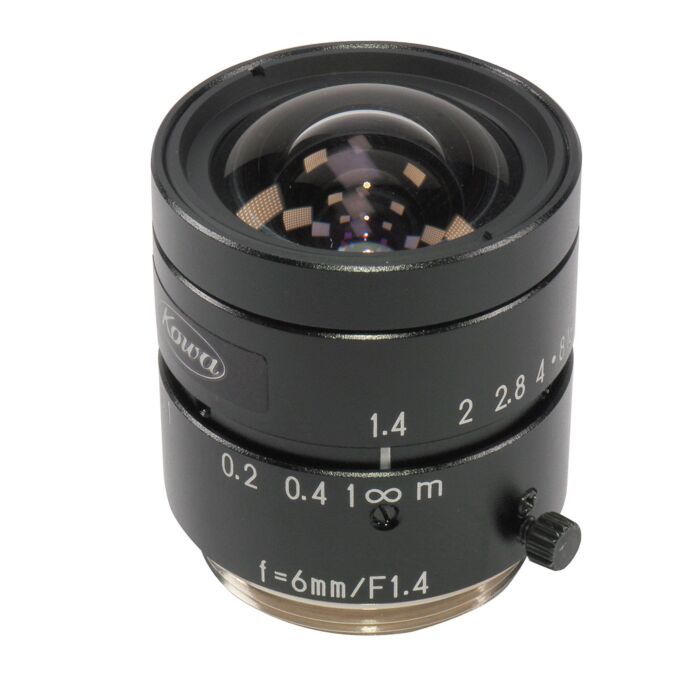

Kowa LM6JC | 2/3" 6mm MP C-Mount Lens
Enhance Your Machine Vision Capabilities with the Kowa LM6JC 6mm C-Mount Lens
Aegis Electronic Group Inc. is proud to offer the Kowa LM6JC, a 2/3" 6mm megapixel C-Mount lens designed for superior performance in machine vision and industrial applications. This fixed focal length lens is ideal for sensors with a pixel size of 5.0μm or larger, making it compatible with a variety of high-resolution sensors including the e2v EV76C560, CMOSIS CMV2000, and Aptina MT9M001. The lens features manual iris control with an iris range from F1.4 to F16, allowing for precise adjustments to suit various lighting conditions.
The Kowa LM6JC boasts a high-resolution capability with 100 lp/mm at the center and 60 lp/mm at the corners, ensuring crisp and clear images. It operates effectively within the visible wavelength range of 380nm to 780nm, making it versatile for different imaging needs. The robust design supports a focusing range from 0.1m to infinity, and its compact size (Ø30 x 32.8 mm) and lightweight (65g) make it easy to integrate into existing systems.
Ideal for applications such as automated inspection, robotics, and surveillance, the Kowa LM6JC enhances image clarity and precision, thereby improving the accuracy and efficiency of industrial processes. Explore this high-performance lens at Aegis Electronic Group Inc. to elevate your imaging capabilities.
Features:
- 2/3" Megapixel C-mount lens
- 6mm fixed focal length
- Compatible with high-pixel sensors (5.0μm or larger)
- Manual iris control (F1.4 - F16)
- High-resolution: 100 lp/mm center, 60 lp/mm corners
- VIS wavelength range (380nm - 780nm)
- Compact and lightweight design
Applications:
- Automated inspection systems
- Robotics and automation
- Surveillance and security
- Industrial process monitoring
- Quality control in manufacturing
- Precision measurement systems
- Scientific imaging applications
| Focal Length (mm) | 6 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,4 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 190.6 |
| Shooting range at MOD, vertical (mm) | 130.3 |
| Resolution (Center, Corner) | 100lp/mm,60lp/mm |
| TV Distortion (%) | -10,7 |
| Back Focus in Air (mm) | 11,3 |
| Filter Size (mm) | no |
| Size (mm) | Ø30 X 32,8 |
| Weight | 65 |
| Temperature Range | -10°C - +50°C |
| Series | JC |
| Application | Machine Vision |
