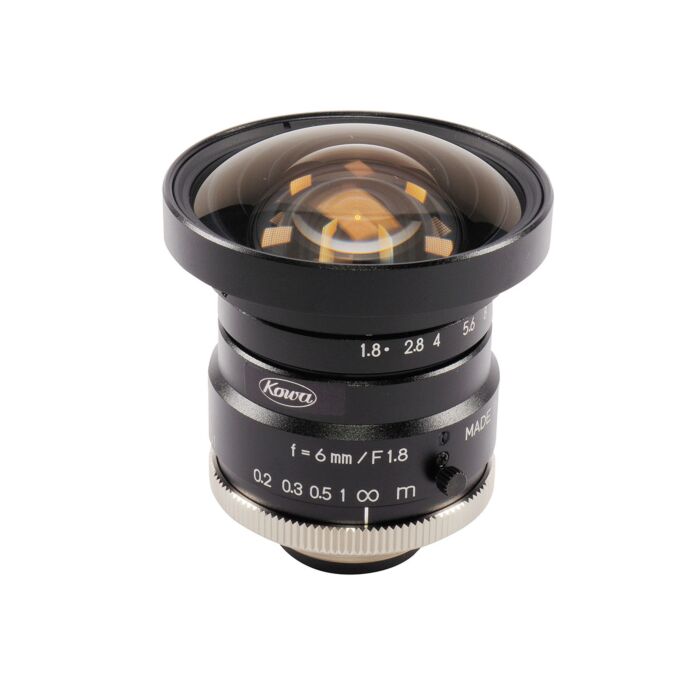

Kowa LM6HC | 1" 6mm 5MP C-Mount Lens
Enhance Your Imaging Precision with the Kowa LM6HC 5MP C-Mount Lens
Aegis Electronic Group Inc. proudly offers the Kowa LM6HC 1" 6mm 5MP C-Mount lens, designed for high-precision imaging in various industrial and machine vision applications. This lens is specifically engineered for sensors with a pixel size of 5.0μm or more, making it compatible with advanced sensors such as the Sony IMX174, CMOSIS CMV4000, and Sony IMX249.
The Kowa LM6HC features a fixed focal length of 6mm and manual iris control with a range of F1.8 to F11, ensuring adaptability to different lighting conditions. Its high-resolution capability, with center resolution of 120 lp/mm and corner resolution of 100 lp/mm, delivers sharp, detailed images. The lens covers a visible wavelength range from 380nm to 780nm, making it versatile for various lighting environments.
Ideal for machine vision, intelligent transportation systems (ITS), traffic control, and broadcast applications, the Kowa LM6HC excels in environments requiring high-quality, distortion-free images. Its robust design, with a temperature range from -10°C to +50°C, ensures reliable performance in challenging conditions. Weighing 215g and measuring Ø54 x 56.6mm, this lens is compact yet powerful, perfect for integration into complex imaging systems.
Choose the Kowa LM6HC to enhance your imaging precision and reliability across various applications.
Features:
- Focal Length: 6mm
- Sensor Size: 1"
- Pixel Size: 5.0μm
- Manual Iris Control (F1.8-F11)
- Fixed Focal Lens
- VIS Wavelength Range: 380nm - 780nm
- Manual Focus Control
- High Resolution: 120 lp/mm (center), 100 lp/mm (corner)
- Minimal Distortion: -0.2%
- Operating Temperature: -10°C to +50°C
Applications:
- Machine Vision
- Intelligent Transportation Systems (ITS)
- Traffic Control
- Broadcast
- Vision Inspection
- Industrial Automation
- Robotics
| Focal Length (mm) | 6 mm |
| Sensor Size | 1" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,8 - 11 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 267.4 |
| Shooting range at MOD, vertical (mm) | 196,3 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 5 |
| TV Distortion (%) | -0,2 |
| Back Focus in Air (mm) | 11,1 |
| Filter Size (mm) | no |
| Size (mm) | Ø54 X 56,6 |
| Weight | 215 |
| Temperature Range | -10°C - +50°C |
| Series | HC |
| Application | Broadcast, ITS/Traffic Control, Machine Vision |
