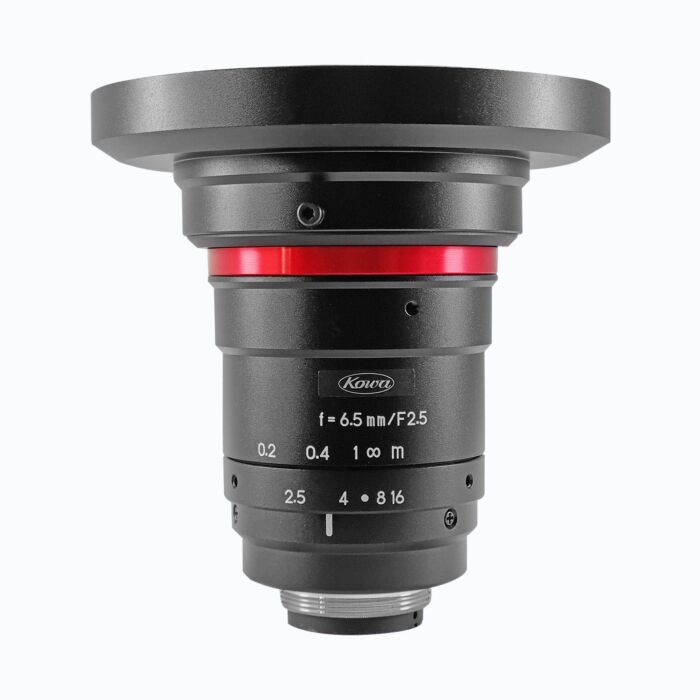

Kowa LM6FC24M | 1.1" 6.5mm 24MP C-mount Lens
Kowa LM6FC24M: Superior 24MP Lens for Industrial and Machine Vision Applications
The Kowa LM6FC24M is a 1.1" C-mount lens designed to deliver precision and clarity in demanding industrial and machine vision applications. With a focal length of 6.5mm and an impressive 24-megapixel resolution, this lens offers superior performance for imaging systems that require high accuracy, such as those utilizing Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors.
The floating mechanism in the lens design effectively eliminates optical aberrations, ensuring sharp images from center to edge. The broadband coating allows for seamless transmission across visible (VIS) to near-infrared (NIR) wavelengths, making it ideal for both standard imaging and NIR-sensitive systems. This combination of high resolution and optical accuracy is well-suited for applications in machine vision, intelligent transportation systems (ITS), and broadcast environments.
The manual focus and aperture control provide users with enhanced flexibility, while the removable filter head allows for additional customization. With a durable build that operates in temperatures from -10°C to +50°C, the Kowa LM6FC24M is engineered for industrial environments requiring high performance and reliability. This lens is ideal for customers seeking superior image quality and precision in automated inspection, quality control, and traffic monitoring systems.
Features:
- 1.1" C-mount, 24MP lens
- 6.5mm focal length for wide field of view
- Compatible with Sony IMX sensors
- Manual focus and aperture control
- Broadband coating for VIS to NIR transmission
- Floating mechanism to minimize optical aberrations
- Operates in -10°C to +50°C
Applications:
- Machine Vision: Automated inspection systems, quality control
- Intelligent Transportation Systems (ITS): Traffic monitoring and control
- Broadcast: High-definition broadcasting and imaging
- Security and Surveillance: Enhanced imaging in challenging environments
- Automation: Vision-based robotic applications
| Focal Length (mm) | 6.5 mm |
| Image Size (mm) | 14.1x10.6 (Φ17.6) |
| Iris Range | F2.5 - F16 |
| Focusing range (m) | 0.1 - ∞ |
| Iris | Manual |
| Focus | Manual |
| Shooting range at MOD (mm) | 256 x 190 |
| Angle of View (Degrees) | 1.1": 95.7 x 78.7 1": 89.9 x 73.0 2/3": 68.1 x 53.5 |
| Resolution (Center, Corner) | 200lp/mm,100lp/mm |
| TV Distortion (%) | -1.51 |
| Back Focus in Air (mm) | 10.9 |
| Mount | C-mount |
| Filter Thread (mm) | M82xP0.75 |
| Size (mm) | Φ84 x 79.1 |
| Weight | 300 |
| Temperature Range | -10°C - +50°C |
