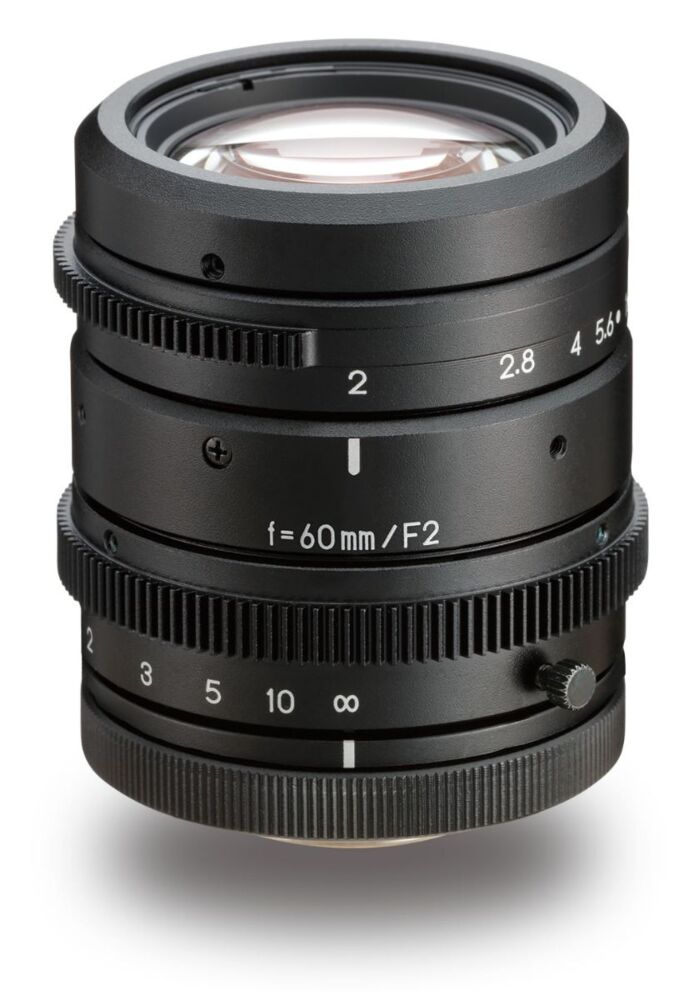

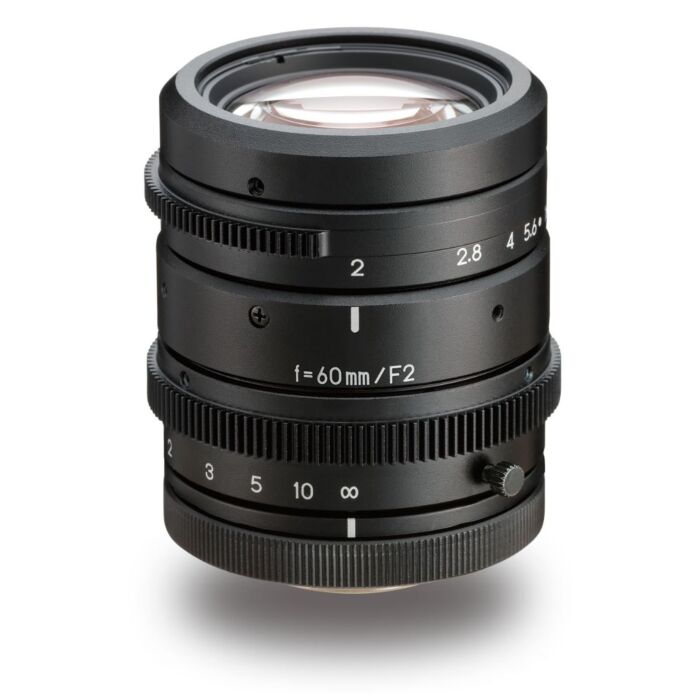

Kowa LM60HC-IR | 1" 5MP Lens
Kowa LM60HC-IR: Precision Lens for Machine Vision and Traffic Control Applications
The Kowa LM60HC-IR is a high-performance industrial lens, specially designed for demanding machine vision applications and traffic control systems. Featuring a 1" sensor format and 5MP resolution, this 60mm focal length lens ensures sharp and precise imaging, even in challenging environments. It is compatible with sensors like the Sony IMX174, CMOSIS CMV4000, and IMX249, making it versatile for a wide range of camera setups.
One of the standout features of the LM60HC-IR is its infrared correction, ensuring optimal performance in both day and night conditions. With excellent brightness across the entire field of view, even at the periphery, this lens excels in tasks requiring accurate detection and image clarity. The manual aperture and focus control provide flexibility, allowing users to fine-tune settings to meet the needs of their specific application.
This lens is ideal for intelligent traffic systems (ITS), automation, and industrial inspection processes where precision and reliability are critical. With robust construction and operation in temperatures from -10°C to +50°C, the Kowa LM60HC-IR ensures longevity in harsh industrial environments.
Features:
- 1" 5MP sensor compatibility
- 60mm focal length for precise imaging
- Infrared-corrected for day & night use
- Manual aperture and focus control
- Compatible with Sony IMX174 and CMOSIS CMV4000
- Excellent brightness in peripheral areas
- Durable design for industrial environments
Applications:
- Traffic control systems (ITS)
- Industrial automation
- Surveillance in day and night conditions
- Factory inspection systems
- High-precision image analysis in manufacturing
| Aperture (F-stop) | 12 - 16 |
| Aperture (control) | Manual |
| Application field | ITS/Traffic Control |
| Back focus in air (mm) | 15,7 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 216,9 |
| Field of view at minimum working distance, vertical (mm) | 162,1 |
| Filter size (mm) | M37,5 x P0,5 |
| Focal length (mm) | 60 |
| Focus range (m) | 1 - ∞ |
| Mount | C-mount |
| Pixel size (µm) | 5 |
| Resolution, centre (lp/mm) | 120 |
| Resolution, margin (lp/mm) | 80 |
| Sensor size | 1" |
| Series | HC |
| Size (mm) | Ø49,2 X 54,6 |
| TV distortion (%) | -0,06 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | IR-corrected (Day & Night), Peak Coating (400nm – 1000nm) |
| Weight (g) | 200 |
