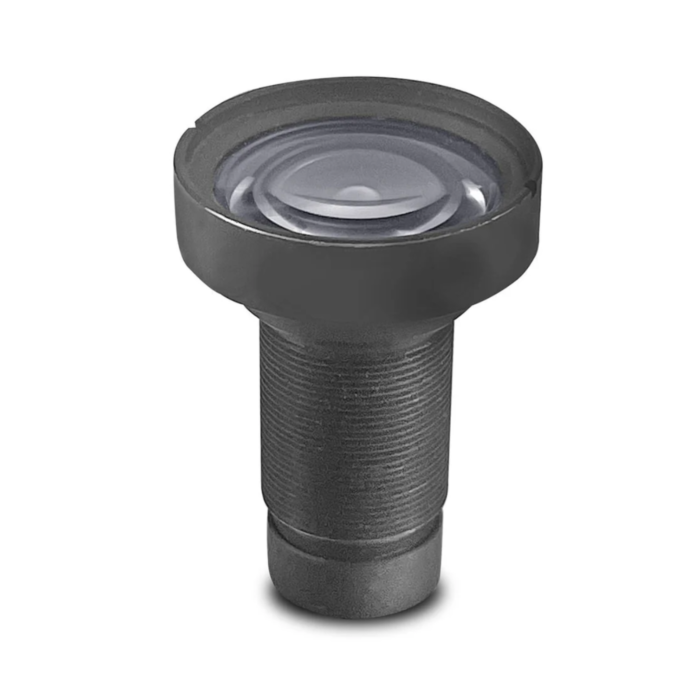

Kowa LM5NS56 | 1/1.8" 5mm Fixed Lens, 2MP, S-Mount, 2.5µm Pixel, Visible (400–800nm)
The Kowa LM5NS56 is a compact 5mm fixed focal length lens designed for 1/1.8" format sensors with 2MP resolution and 2.5µm pixel size. This S-Mount lens provides high optical performance with 200 lp/mm center and 100 lp/mm edge resolution, enabling precise image capture in embedded vision, UAV, and automotive systems. Optimized for the visible wavelength range of 400–800nm, it maintains minimal distortion at -0.51% and delivers sharp results with a wide horizontal FOV of 72.4mm and vertical FOV of 57.0mm at minimum working distance.
Built for durability in rugged or mobile environments, the LM5NS56 operates within -10°C to +50°C and includes a fixed F-stop of 5.6 with manual focus control. It has a compact design at only Ø21.5 x 29.9 mm and weighs just 12g, making it ideal for space-constrained systems. Focus range is 0.1m to infinity, and the lens supports customization including IR cut filters, glued optics for shock resistance, and full optical/mechanical redesigns by request.
Features:
- 5mm fixed focal length
- 1/1.8" sensor format support
- 2MP resolution with 2.5µm pixel compatibility
- 200 lp/mm center, 100 lp/mm edge resolution
- S-Mount (M12 x P0.5) compact design
- -0.51% TV distortion
- Fixed F-stop: f/5.6
- Manual focus control
- Lightweight: 12g
- Operating temperature: -10°C to +50°C
- Visible spectrum: 400–800nm
- Optional IR-cut filter and shock-resistant glue sealing
Applications:
- UAVs / Drones
- Automotive imaging systems
- Compact embedded vision
- Robotics and automation
- Machine vision in tight spaces
- Mobile inspection systems
| Focal Length | 5.0 mm |
|---|---|
| Sensor Size | 1/1.8" (9mm Dia.) |
| Mount | S-Mount (M12 x P0.5) |
| Resolution | 2MP |
| Pixel Size | 2.5 µm |
| Resolution (Center) | 200 lp/mm |
| Resolution (Edge) | 100 lp/mm |
| Aperture (F-stop) | f/5.6 (Fixed) |
| Focus Control | Manual |
| Focus Range | 0.1 m – ∞ |
| Field of View (H/V) | 72.4 mm / 57.0 mm |
| TV Distortion | -0.51% |
| Back Focus | 5.80 mm (in air) |
| Wavelength Range | Visible (400–800nm) |
| Temperature Range | -10°C to +50°C |
| Size (Diameter x Length) | Ø21.5 x 29.9 mm |
| Weight | 12 g |
| Application Fields | Automotive, UAV/Drones |
| Series | NS Series |
| Customization | IR-cut filter, glued optics, mechanical redesign |
