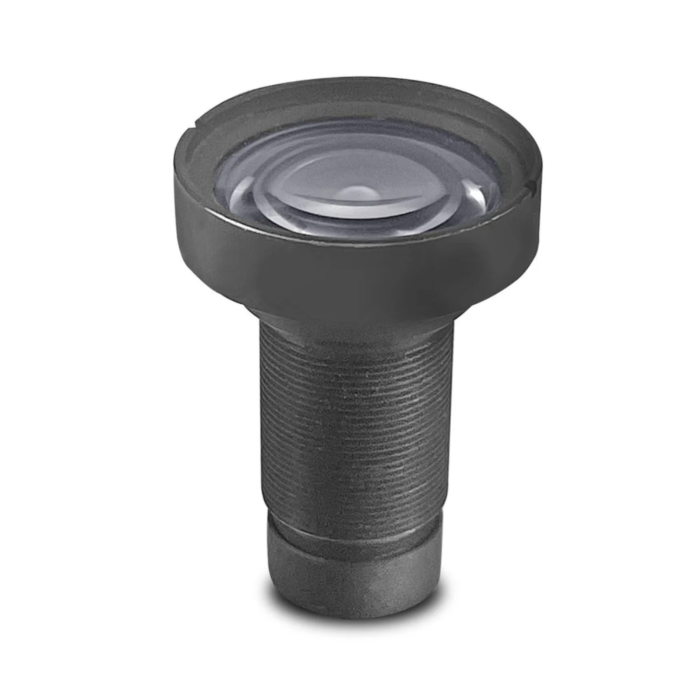

Kowa LM5NS28 | 1/1.8" 5mm Fixed S-Mount Lens, 2MP, 2.5µm Pixel, 72.4° HFOV, Manual Focus, Visible (400–800nm)
The Kowa LM5NS28 is a high-performance fixed focal length lens designed for 1/1.8" image sensors, delivering 2MP resolution with a 2.5µm pixel size optimized for sharp, detailed imaging. It features a 5.0mm focal length with a wide 72.4° horizontal field of view (HFOV) and an F/2.8 fixed aperture, providing excellent light transmission and clarity. The lens supports manual focus adjustment from 0.1 meters to infinity, making it ideal for precision imaging in automotive, UAV, and drone applications requiring reliable visual capture across various distances and lighting conditions.
Engineered for visible spectrum use (400–800nm), the LM5NS28 lens achieves a center resolution of 200 line pairs per millimeter (lp/mm) and 100 lp/mm at the edges, ensuring sharpness across the frame. Its compact size (Ø21.5 x 29.9mm) and lightweight 12g construction allow seamless integration into space-constrained optical systems. The lens offers an M12 x 0.5 filter thread for added customization, and optional enhancements include modified F-stops, IR cut filters, shock-resistant glued elements, or a complete custom optical/mechanical redesign tailored to specific industrial requirements.
Features:
- Fixed 5.0mm focal length with 2.8 aperture for optimal light capture
- Supports 1/1.8" (9mm diameter) sensors with 2MP resolution, 2.5µm pixel size
- Wide 72.4° horizontal and 57.0° vertical field of view
- High resolution: 200 lp/mm center, 100 lp/mm edges
- Manual focus range from 0.1 meters to infinity
- M12 x 0.5 filter thread for lens filter compatibility
- Operating temperature: -10°C to +50°C
- Compact size (Ø21.5 x 29.9mm) and lightweight (12g) design
- Visible spectrum coverage (400–800nm)
- Customizable F-stops, IR cut filters, and shock-resistant options
Applications:
- Automotive machine vision and ADAS cameras
- UAV and drone imaging systems
- Industrial inspection and robotics vision
- Surveillance and security cameras
- Robotics and automation sensors
| Aperture (F-stop) | 2.8 (Fixed) |
| Focal Length (mm) | 5.0 |
| Mount Type | S-Mount |
| Sensor Size | 1/1.8" (9mm Diameter) |
| Megapixel Support | 2MP |
| Pixel Size (µm) | 2.50 |
| Field of View, Horizontal (°) | 72.4 |
| Field of View, Vertical (°) | 57.0 |
| Focus Control | Manual |
| Focus Range (m) | 0.1 to ∞ |
| Resolution Center (lp/mm) | 200 |
| Resolution Margin (lp/mm) | 100 |
| Filter Thread Size | M12 x 0.5 |
| TV Distortion (%) | -0.51 |
| Operating Temperature (°C) | -10 to +50 |
| Wavelength Range (nm) | Visible 400–800 |
| Dimensions (mm) | Ø21.5 x 29.9 |
| Weight (g) | 12 |
