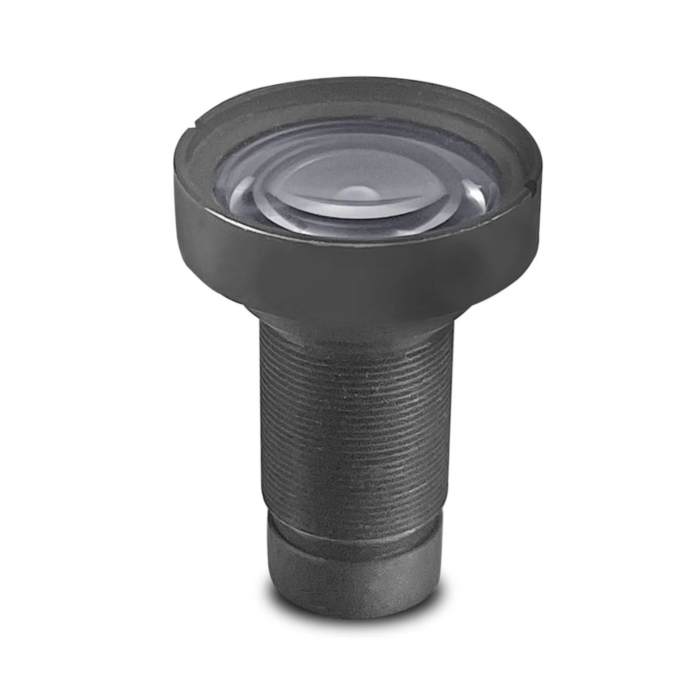

Kowa LM5NS21 | 1/1.8" 5mm Fixed Lens, 2MP, S-Mount, 2.5µm Pixel, Visible Spectrum (400–800nm), -0.51% Distortion

The Kowa LM5NS21 is a high-precision 5mm fixed focal length lens engineered for 1/1.8" (9mm) sensors with 2MP resolution and 2.5µm pixel pitch. Built on the NS series platform, this compact S-mount lens features a fixed F2.1 aperture and is optimized for compact imaging applications requiring high resolution and minimal distortion. The lens delivers exceptional center resolution up to 200 lp/mm with edge resolution at 100 lp/mm and a horizontal field of view of 72.4mm at minimum object distance.

Designed for rugged and lightweight use, the LM5NS21 is ideal for UAVs, drones, and automotive systems. It supports a manual focus range from 0.1m to infinity and operates across a wide temperature range of -10°C to +50°C. The optical design is housed in a compact Ø21.5 x 29.9mm barrel weighing just 12g. Optional IR cut filters, shock resistance (glued elements), and custom aperture tuning are available upon request.

Features:

• 5mm fixed focal length
• Supports 2MP resolution (up to 2.5µm pixel size)
• Optimized for 1/1.8" (9mm) image sensors
• High center resolution: 200 lp/mm
• Wide field of view at close distances
• S-mount (M12 x 0.5) with manual focus
• Fixed F2.1 aperture
• Ultra-lightweight (12g) compact design
• Low distortion: -0.51%
• Visible spectrum support (400–800nm)
• Wide operating temperature: -10°C to +50°C
• Customization options: glued elements, IR cut filter, aperture tuning

Applications:

• UAV / Drone cameras
• Automotive ADAS systems
• Embedded vision systems
• Robotics and automation
• Miniature machine vision
• Industrial inspection
• Compact sensor modules
• Smart cameras and IoT imaging
