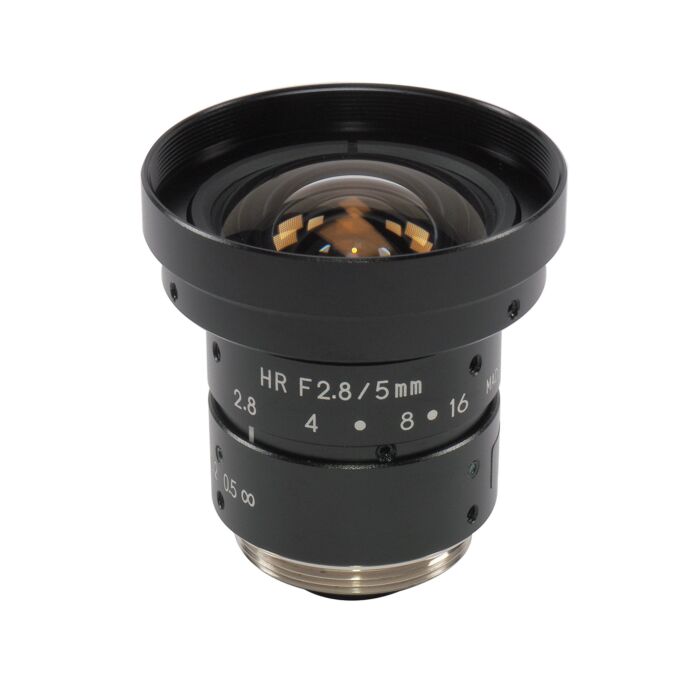

Kowa LM5JCM | 2/3" 5mm 2MP C-Mount Lens
Enhance Your Machine Vision with the Kowa LM5JCM 2/3" 5mm 2MP C-Mount Lens
The Kowa LM5JCM 2/3" 5mm 2MP C-Mount lens, available at Aegis Electronic Group Inc., is a top-tier solution for industrial and machine vision applications. This super wide-angle lens offers exceptional image clarity and performance, designed for sensors with a pixel size of 4.5μm or more, making it compatible with popular sensors like OnSemi Python500, e2v EV76C570, and Aptina MT9M131.
The LM5JCM lens features a focal length of 5mm and a 2/3" sensor size, ensuring precise and detailed imaging. With an impressive resolution of 120 lp/mm at the center and 100 lp/mm at the corners, it provides sharp and accurate visuals, essential for critical industrial applications. The lens's manual iris control, with a range of F2.8 to F16, allows for fine adjustments to suit various lighting conditions.
This powerful yet compact lens, measuring Ø42 x 38.2mm and weighing just 84g, ensures easy integration into various systems. Its very low distortion of -0.5% and a focusing range from 0.1m to infinity make it ideal for a wide array of applications, from quality control and inspection to automated imaging systems. The Kowa LM5JCM is your go-to lens for enhancing the efficiency and accuracy of your industrial imaging needs.
Features:
- Super wide-angle lens with low distortion (-0.5%)
- Compatible with OnSemi Python500, e2v EV76C570, and Aptina MT9M131 sensors
- Manual iris control (F2.8 to F16)
- High resolution: 120 lp/mm (center), 100 lp/mm (corner)
- Compact and lightweight (Ø42 x 38.2mm, 84g)
- Suitable for sensors with pixel size of 4.5μm or more
Applications:
- Quality control
- Automated inspection systems
- Robotics vision
- Industrial automation
- Precision measurement
- Surveillance and security
- Medical imaging
- Scientific research
| Focal Length (mm) | 5 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2,8 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 200.8 |
| Shooting range at MOD, vertical (mm) | 150.8 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,5 |
| Back Focus in Air (mm) | 10,2 |
| Filter Size (mm) | M40,5 x P0,5 |
| Size (mm) | Ø42 X 38,2 |
| Weight | 84 |
| Temperature Range | -10°C - +50°C |
| Series | JC1MS |
| Application | Machine Vision |
