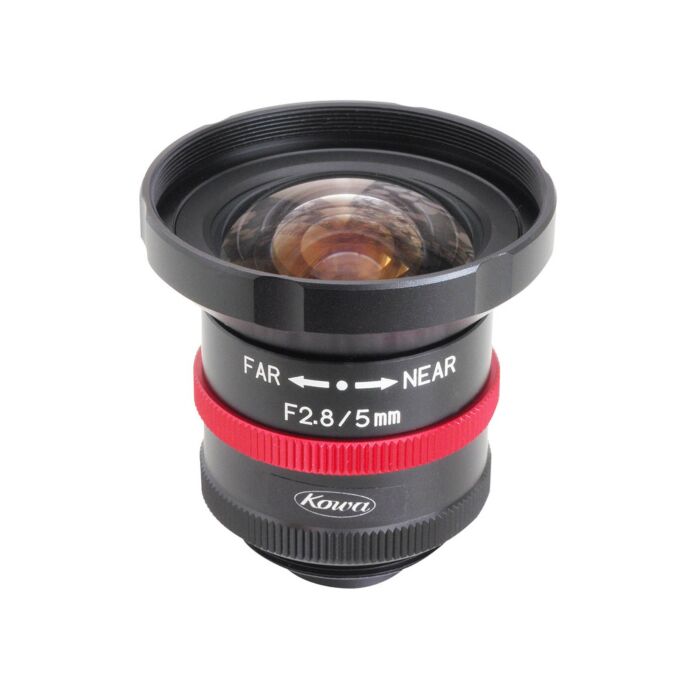

Kowa LM5JCM-V | 2/3" Ruggedized 5mm 2MP C-mount Lens
Exceptional Performance in Industrial Applications with Kowa Lenses
Kowa is a renowned name in the machine vision lens industry, recognized for its innovative designs and commitment to quality. The Kowa LM5JCM-V 2/3" Ruggedized 5mm 2MP C-mount lens is engineered to meet the rigorous demands of industrial and commercial applications. Its robust construction ensures reliable performance in environments subject to strong vibrations and shocks, making it ideal for automation and inspection processes in manufacturing settings.
This lens features a focal length of 5mm, allowing for a wide field of view, crucial for capturing detailed images in close-range applications. It is compatible with sensors such as the OnSemi Python500, e2v EV76C570, and Aptina MT9M131, which have a pixel size of 4.5µm. The manual aperture control (F2.8 / F4 / F5.6 / F8) offers flexibility in varying lighting conditions, enhancing image quality. The Kowa LM5JCMV lens is perfect for a multitude of machine vision tasks, including quality assurance, automation, and robotics, enabling businesses to enhance efficiency and accuracy in their operations.
Features:
- Focal Length: 5mm for broad field coverage
- Resolution: 2 Megapixels
- Vibration Resistance: Designed for rugged environments
- Compatibility: Suitable for various sensor types
- Aperture Control: Manual (F2.8 - F8)
- Temperature Range: Operates from -10°C to +50°C
- Weight: Lightweight at 73g
Applications:
- Quality inspection in manufacturing
- Automation and robotics systems
- Surface inspection and measurement
- Food and packaging industry applications
- Automotive manufacturing
- Medical imaging
- 3D scanning and imaging solutions
| Aperture (F-stop) | F2.8 / F4 / F5.6 / F8 |
| Aperture (control) | Manual |
| Application field | Machine Vision |
| Back focus in air (mm) | 10.2 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 200.8 |
| Field of view at minimum working distance, vertical (mm) | 150.8 |
| Filter size (mm) | M40.5 x P0.5 |
| Focal length (mm) | 5 |
| Focus range (m) | 0.1 - ∞ |
| Megapixel | 2 |
| Mount | C-mount |
| Pixel size (µm) | 4.5 |
| Resolution, centre (lp/mm) | 120 |
| Resolution, margin (lp/mm) | 100 |
| Sensor size | 2/3" |
| Series | JCM-V |
| Size (mm) | Ø42 x 38.2 |
| TV distortion (%) | -0.5 |
| Temperature range (℃) | -10°C to +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Peak Coating (400nm – 1000nm) |
| Weight (g) | 73 |
