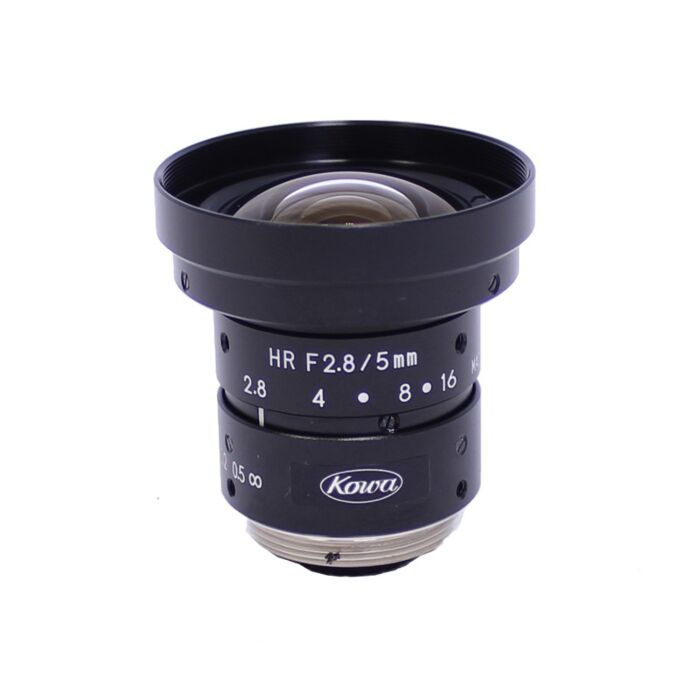

Kowa LM5JC1M | 2/3" 5mm 2MP Lens
Unleashing New Possibilities with the Kowa LM5JC1M 2/3" 5mm 2MP Lens for Industrial and Machine Vision Applications
The Kowa LM5JC1M 2/3" 5mm 2MP lens is a cutting-edge solution for machine vision and industrial applications, known for its high resolution and exceptional optical performance. This wide-angle lens features advanced technology such as the floating mechanism system, ensuring superior image quality even in dynamic environments. With its low-distortion design, the lens can deliver clear, high-definition images with distortion under 0.5%, making it ideal for precision work in factory automation, inspection systems, and other machine vision tasks.
Engineered to withstand harsh industrial conditions, the LM5JC1M lens is resistant to shock and vibration, maintaining its performance and durability even in challenging environments. Its super-wide angle design enables a large field of view, while the high transmission capabilities ensure sharp, detailed images even in low-light conditions. The clear resolution across the entire image—from center to corners—enhances its usability in applications requiring detailed inspection.
Whether you are optimizing factory automation, building high-precision inspection systems, or improving machine vision setups, this Kowa lens is the perfect solution to enhance the quality and accuracy of your imaging systems. Explore the possibilities with Kowa LM5JC1M and elevate your industrial optics performance.
Features:
- Low distortion under 0.5%
- High precision aspherical lens
- Super-wide angle for large field of view
- Vibration and shock resistant
- High transmission for dark lighting conditions
- Clear resolution at both center and corners
- Supports megapixel cameras
Applications:
- Machine vision systems
- Factory automation
- Precision inspection
- Quality control processes
- Industrial monitoring
- Robotics vision systems
- Automated sorting systems
| Focal Length (mm) | 5 |
| Lens Type | Fixed |
| Image Size (mm) | 2/3" (Φ11) |
| Iris Range (F-stop) | F2.8 ~ F16 |
| Focusing Range (m) | 0.1 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 196.8(H) x 147.6(V) |
| Angle of View 2/3" (°) | 82.4 x 66.9 |
| Angle of View 1/2" (°) | 65.2 x 51.3 |
| Angle of View 1/3" (°) | 51.3 x 39.6 |
| Resolution (Center, Corner) | 120lp/mm, 100 lp/mm |
| TV Distortion (%) | -0.5 |
| Back Focus in Air (mm) | 10.2 |
| Mount | C-Mount |
| Filter Thread Size (mm) | M40.5 x P0.5 |
| Minimum Focus Distance (m) | 0.1 |
| Flange Back in Air (mm) | 17.526 |
| Front/Rear Effective DIA (mm) | Φ28.0, Φ10.0 |
| Exit Pupil (mm) | -34.7 |
| Size (mm) | Φ42 x 38.2 |
| Weight (g) | 85 |
| Temperature Range (°C) | -10 ~ +45 |
