Kowa LM50LF-48 | 46mm Image Circle 50mm Fixed Lens, TFL-II Mount, 4K Line Scan, 7.5μm Pixel, Visible Spectrum (400–800nm)

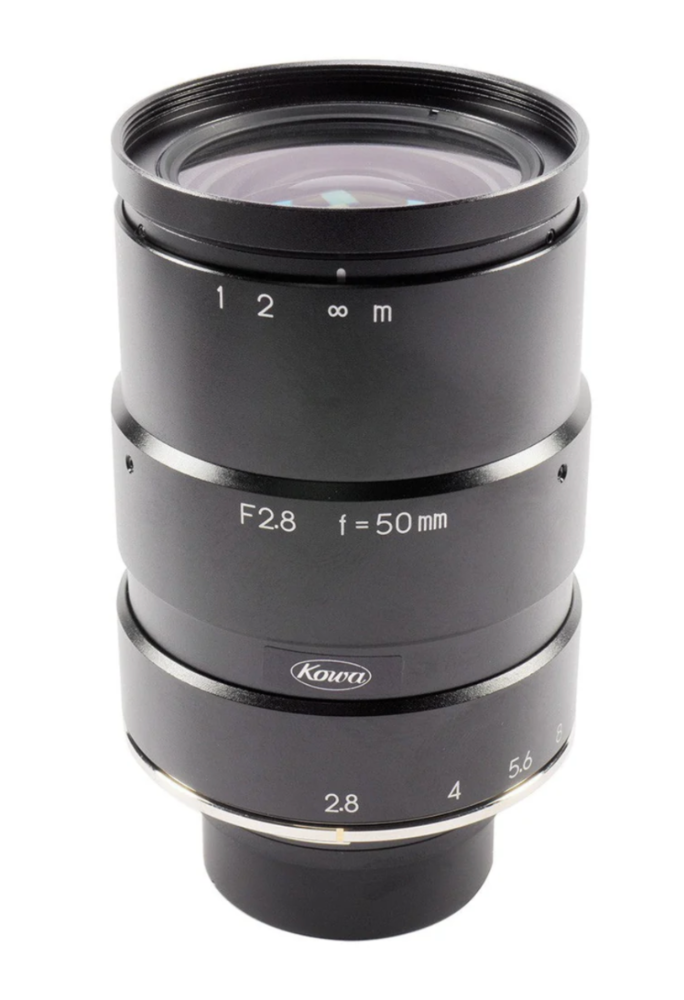

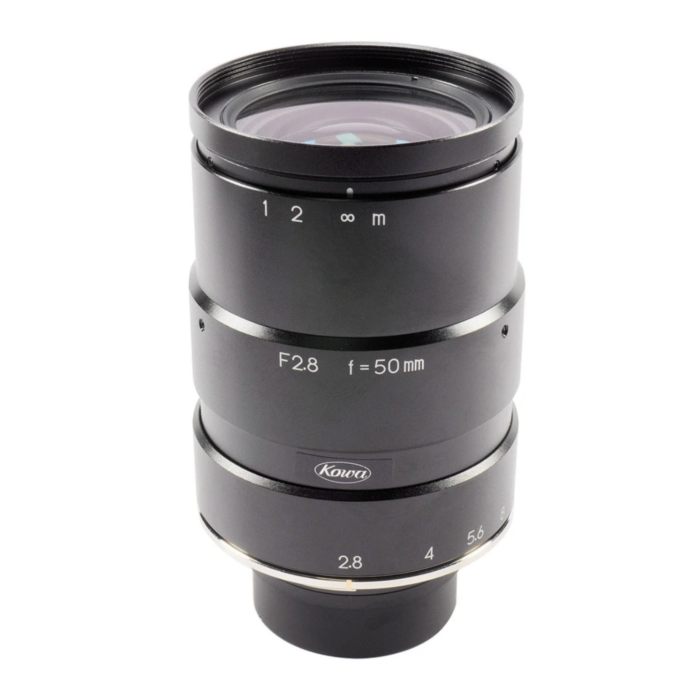

The Kowa LM50LF-48 is a high-performance 50mm fixed focal length lens built for advanced 4K line scan camera systems. With a wide 46mm image circle and optimized support for large-pixel sensors of 7.5μm and greater, this lens is ideal for high-speed inspection, web scanning, and machine vision workflows. It features a TFL-II mount for improved stability with larger sensors, a fast f/2.8–22 manual aperture range, and exceptional resolving power up to 160 lp/mm at center and 63 lp/mm at image margins. The LM50LF-48 delivers low distortion (-0.04%) across a large sensor area, making it perfect for precise, distortion-sensitive imaging.

The lens performs in the visible spectrum (400nm–800nm), supporting full-frame line scan applications requiring maximum optical clarity. It has a field of view of 162.9mm (H) x 108.9mm (V) at the minimum working distance and provides consistent performance from 0.4m to infinity. Designed for industrial reliability, the LM50LF-48 operates across -10°C to +50°C, with a durable build measuring Ø54 x 106mm and weighing just 470g. This lens is a top-tier choice for industrial users seeking ultra-high-resolution, large-format line scan performance.

Features:

• 50mm fixed focal length lens
• TFL-II mount for secure large-format sensor use
• Supports 4K line scan cameras and 7.5µm pixel sensors
• 46mm image circle for wide sensor coverage
• Manual iris (f/2.8–22) and manual focus
• 160 lp/mm center resolution, 63 lp/mm at edge
• Minimal TV distortion (-0.04%)
• Optimized for visible spectrum (400–800nm)
• Durable build, Ø54 x 106mm, 470g
• Wide temperature range: -10°C to +50°C

Applications:

• Line scan inspection systems
• Industrial web inspection
• Print and label quality control
• Semiconductor and PCB inspection
• Large-format machine vision setups
• Scientific and research imaging
