Kowa LM50JCM-WP | 2/3" Ruggedized Waterproof 50mm 2MP Lens
Kowa LM50JCM-WP 50mm 2MP Lens: Rugged, Waterproof Precision for Industrial Excellence

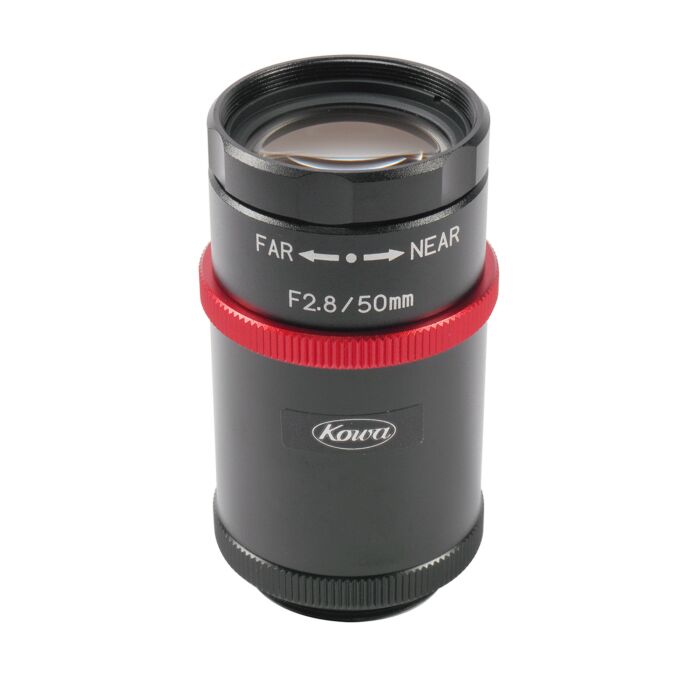

The Kowa LM50JCM-WP 50mm lens is engineered for the most demanding machine vision and industrial environments. This lens features a fixed focal length of 50mm and is tailored for sensors with a pixel size of 4.5μm or larger, including OnSemi Python500, e2v EV76C570, and Aptina MT9M131. Designed to endure strong vibrations and shocks, it boasts an IP67 waterproof rating when paired with a compatible camera, making it ideal for harsh conditions.
With a manual iris control and a range from F2.8 to F16, the LM50JCM-WP provides exceptional control over image brightness and depth of field. Its high resolution of 120 lp/mm at the center and 100 lp/mm at the corners ensures sharp, detailed imagery. The lens's robust construction, combined with its wide temperature range of -10°C to +50°C, makes it a reliable choice for various industrial applications, from quality inspection to robotics.
Features:
- Focal Length: 50mm
- Sensor Size: 2/3"
- Pixel Size: 4.5μm
- Mount: C-mount
- Iris Control: Manual, with F-stops of F2.8, F4, F8, F16
- Resolution: 120 lp/mm (center), 100 lp/mm (corner)
- Waterproof Rating: IP67
- Temperature Range: -10°C to +50°C
- Distortion: -0.03%
- Back Focus: 35.5mm
Applications:
- Quality control and inspection
- Robotics and automation
- Surveillance and security systems
- Precision measurement and analysis
- High-speed imaging and processing
| Focal Length (mm) | 50 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F2.8 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 29,3 |
| Shooting range at MOD, vertical (mm) | 21,9 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,03 |
| Back Focus in Air (mm) | 35,5 |
| Filter Size (mm) | M27 x P0,5 |
| Size (mm) | Ø33 X 56,2 |
| Weight | 85 |
| Temperature Range | -10°C - +50°C |
| Series | JCM-WP |
| Application | Machine Vision |
