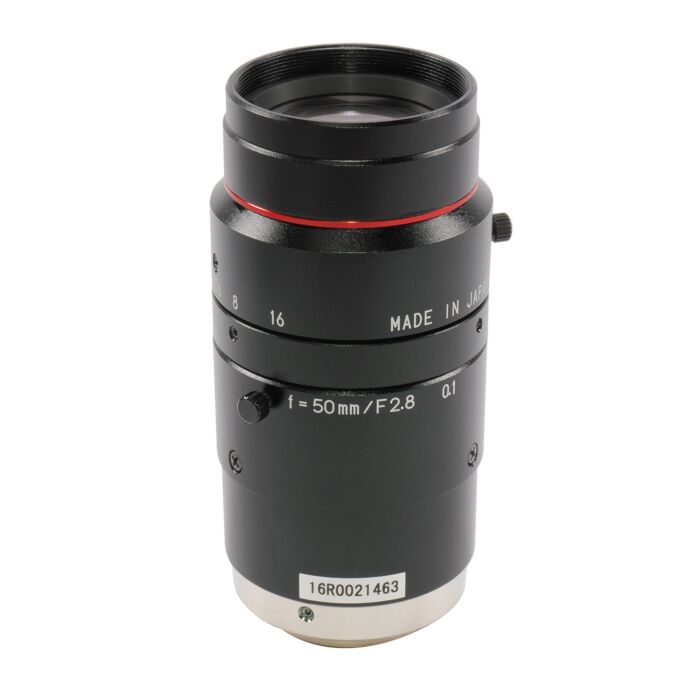

Kowa LM50JC10M | 2/3" 50mm 10MP C-Mount Lens
Kowa LM50JC10M 50mm 10MP C-Mount Lens: Precision and Versatility for Machine Vision
The Kowa LM50JC10M is a high-performance 50mm C-Mount lens engineered to excel in demanding machine vision and industrial applications. Designed for sensors with a pixel size of 2.5μm or larger, this lens provides exceptional clarity and resolution, making it ideal for high-precision tasks. It is compatible with popular sensors like the Sony IMX250, Sony IMX264, and Aptina MT9D131, ensuring versatile integration into various imaging systems.
This fixed focal lens boasts a broad wavelength range from 380nm to 1000nm, with a resolution of 200 lp/mm at the center and 160 lp/mm at the corners, ensuring sharp and accurate image capture across the entire field. The lens features manual iris control with a range of f/2.8 to f/16, allowing users to fine-tune exposure and depth of field according to specific needs. The robust build is designed to perform reliably in temperatures ranging from -10°C to +50°C, making it suitable for a wide range of industrial environments.
Whether you're enhancing machine vision systems or integrating advanced imaging into broadcast applications, the Kowa LM50JC10M offers the precision and durability required for high-quality results.
Features:
- 50mm focal length with C-Mount
- 10MP resolution
- Manual iris control (f/2.8 - f/16)
- Broad wavelength range (380nm - 1000nm)
- Resolution: 200 lp/mm center, 160 lp/mm corner
- -0.02% distortion
- Temperature range: -10°C to +50°C
- Suitable for Sony IMX250, Sony IMX264, Aptina MT9D131
Applications:
- High-precision machine vision systems
- Quality control and inspection
- Automated manufacturing processes
- Broadcast and media imaging
- Scientific research and analysis
| Focal Length (mm) | 50 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 2.5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F2.8 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm) |
| Focusing range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 19,1 |
| Shooting range at MOD, vertical (mm) | 14,3 |
| Resolution (Center, Corner) | 200lp/mm,160lp/mm |
| Megapixel | 10 |
| TV Distortion (%) | -0,02 |
| Back Focus in Air (mm) | 12,8 |
| Filter Size (mm) | M30.5 x P0,5 |
| Size (mm) | Ø38 X 77 |
| Weight | 170 |
| Temperature Range | -10°C - +50°C |
| Series | JC10M |
| Application | Broadcast, Machine Vision |
