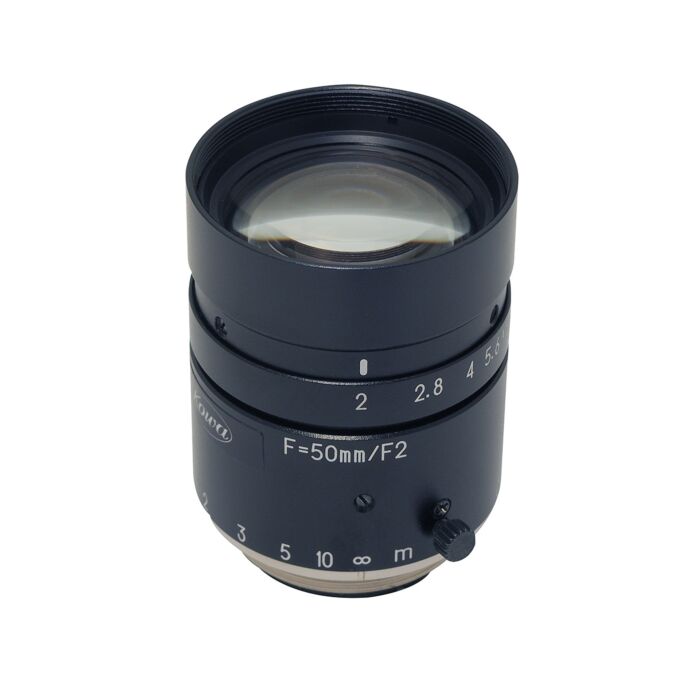

Kowa LM50JC | 2/3" 50mm MP C-Mount Lens

Enhance Your Vision Systems with the Kowa LM50JC 2/3" 50mm MP C-Mount Lens

The Kowa LM50JC 2/3" 50mm Megapixel C-Mount Lens, offered by Aegis Electronic Group Inc., is a premium choice for various industrial and machine vision applications. Renowned for its precision and high-resolution capabilities, this lens is ideal for systems requiring superior image quality. With a focal length of 50mm, the LM50JC is compatible with sensors having a pixel size of 5.0μm, including e2v EV76C560, CMOSIS CMV2000, and Aptina MT9M001, among others.

The lens features manual iris control, with an iris range from F2 to F22, allowing for precise adjustments in diverse lighting conditions. Its fixed focal design ensures stability and reliability in demanding environments. The LM50JC offers a high resolution of 100 lp/mm at the center and 60 lp/mm at the corners, ensuring sharp and clear images across the field of view. Additionally, its minimal distortion of -0.1% and wide wavelength range from 380nm to 780nm make it versatile for various imaging tasks.

This lens is constructed to withstand harsh conditions, operating effectively in temperatures ranging from -10°C to +50°C. Its robust design and compact size make it a perfect fit for integration into complex vision systems, providing exceptional performance and durability.

Features:

• 2/3" Megapixel C-Mount Lens
• 50mm focal length
• Pixel size 5.0μm
• Compatible with e2v EV76C560, CMOSIS CMV2000, Aptina MT9M001 sensors
• Manual iris control (F2 - F22)
• Fixed focal lens
• High resolution: 100 lp/mm (center), 60 lp/mm (corner)
• Minimal distortion: -0.1%
• Wide wavelength range: 380nm - 780nm
• Robust construction, operating range: -10°C to +50°C

Applications:

• Quality control inspection
• Automated assembly lines
• Robotics vision systems
• Surveillance and security
• Precision measurement systems
• Scientific research imaging
• High-speed motion capture
• Optical character recognition (OCR) systems
