Kowa LM50HC-VIS-SW | 1" 50mm 12MP VIS-SWIR Lens
Discover the Kowa LM50HC-VIS-SW: Precision Imaging for Industrial and Machine Vision

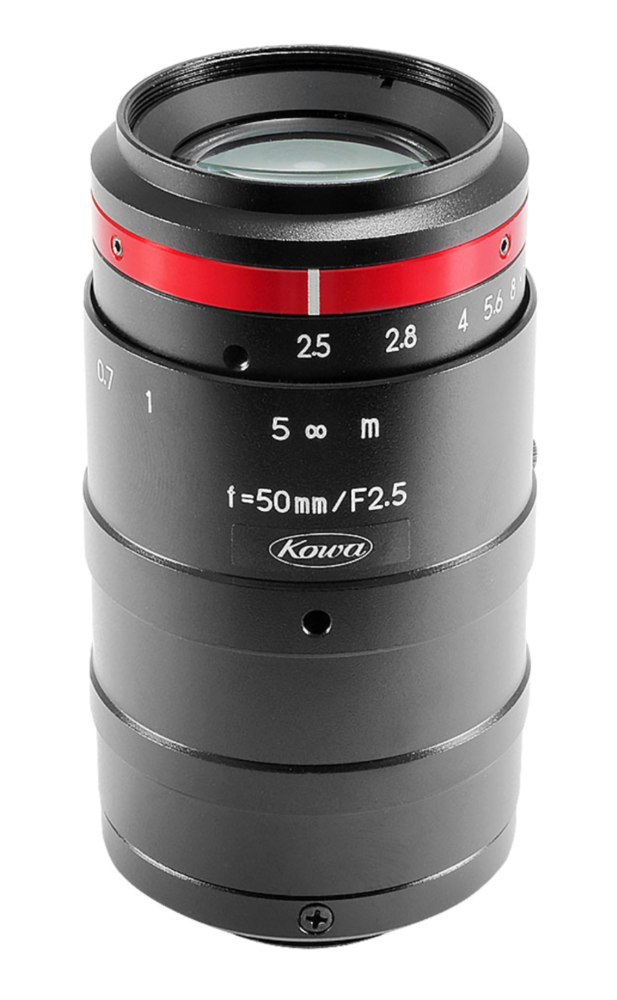

The Kowa LM50HC-VIS-SW 1" 50mm 12MP VIS-SWIR lens is a high-performance optical solution designed for advanced industrial and machine vision applications. Featuring a 50mm focal length and a 1" sensor size, this C-mount lens delivers exceptional image quality with a resolution of up to 12 megapixels. It is compatible with sensors like the Sony IMX990 and IMX991, which have pixel sizes of 3.1μm or larger, ensuring high clarity and precision in imaging tasks.
This lens covers a wide wavelength range from 450nm to 2000nm, making it suitable for a variety of applications, including broadcast, intelligent traffic systems (ITS), and machine vision. The manual iris control allows for precise adjustment of the aperture, with an iris range from F2.5 to F16, catering to different lighting conditions and requirements.
The Kowa LM50HC-VIS-SW is built for durability and performance, with a focusing range from 0.5m to infinity and minimal distortion at just -0.11%. Its robust construction and reliable performance in temperature ranges from -10°C to +50°C make it ideal for challenging industrial environments. This lens is perfect for those looking to enhance their imaging capabilities with superior resolution and versatility.
Features:
- 1" 12 Megapixel C-mount lens
- 50mm focal length
- Suitable for sensors with a pixel size of 3.1μm or more
- Compatible with Sony IMX990, IMX991 sensors
- Wavelength range: 450nm - 2000nm
- Manual iris control (F2.5 - F16)
- High resolution: Center 160 lp/mm, Corner 100 lp/mm
- Minimal distortion: -0.11%
- Robust and durable construction
Applications:
- Broadcast imaging
- Intelligent Traffic Systems (ITS) and traffic control
- Machine vision inspection
- Industrial automation
- Precision manufacturing
- Quality control
- Scientific research
- Medical imaging systems
| Focal Length (mm) | 50 mm |
| Sensor Size | 1" |
| Pixel Size (µm) | 3.1 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2,5 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS-SWIR (450nm-2000nm), SWIR (1000nm - 2000nm) |
| Focusing range (m) | 0,5 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 127 |
| Shooting range at MOD, vertical (mm) | 95 |
| Resolution (Center, Corner) | 160lp/mm,100lp/mm |
| Megapixel | 12 |
| TV Distortion (%) | -0,11 |
| Back Focus in Air (mm) | 34,9 |
| Filter Size (mm) | M30,5 x P0,5 |
| Size (mm) | Ø32 X 71 |
| Weight | 155 |
| Temperature Range | -10°C - +50°C |
| Series | HC-VIS-SW |
| Application | Broadcast, ITS/Traffic Control, Machine Vision |
