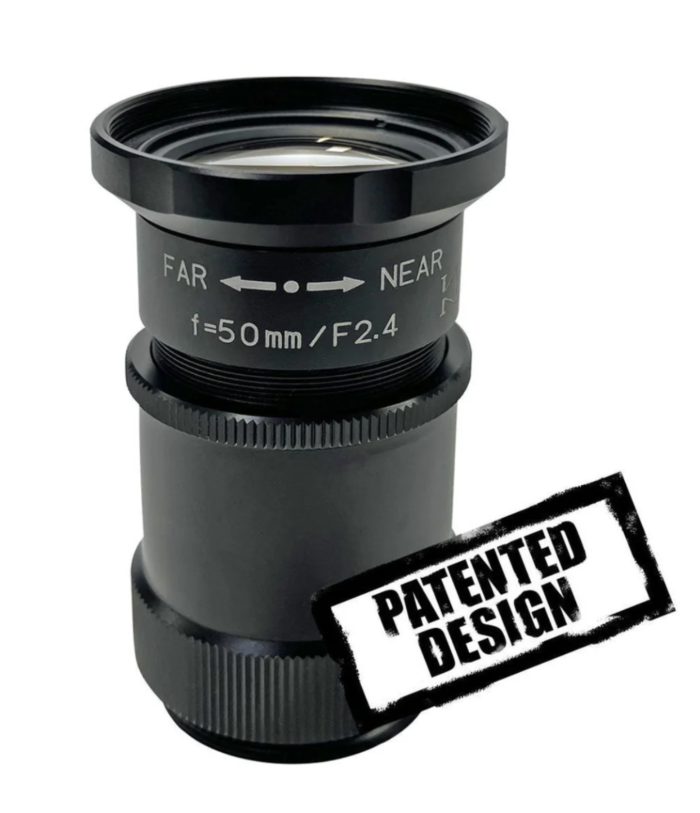

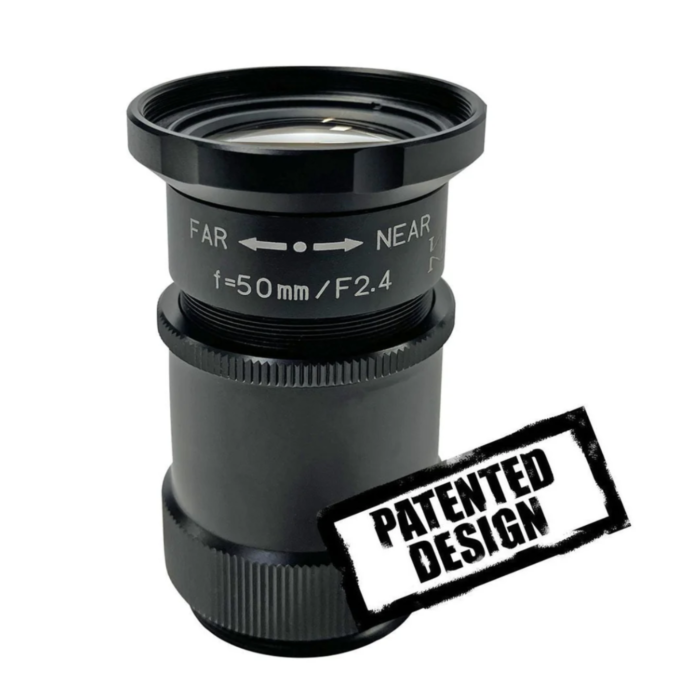

Kowa LM50EC-IR | 1.2" 50mm IR-Corrected Fixed Lens, 24MP, C-Mount, 2.5µm Pixel, Visible to NIR (400–1000nm)

The Kowa LM50EC-IR is a high-resolution 50mm fixed focal length lens engineered for 1.2" format sensors with support for up to 24 megapixels and pixel sizes as small as 2.5µm. It is IR-corrected across a broad wavelength range from 400nm to 1000nm, delivering stable focus and sharp imaging from visible light through near-infrared. Ideal for precision imaging systems, the LM50EC-IR is built for industrial and outdoor use, including traffic surveillance, license plate recognition, machine vision, and mapping applications.

This C-Mount lens features a lightweight Ø33 x 50.8mm housing and a manual focus mechanism with a working range from 0.5m to infinity. The optical design ensures edge-to-edge clarity, with a center resolution of 200 lp/mm and 125 lp/mm at the margins. Interchangeable fixed apertures from F2.4 to F8 provide adaptable light control. With ultra-low distortion (0.02%), a 147mm horizontal field of view at close range, and an operating temperature range of -10°C to +50°C, the LM50EC-IR is optimized for high-speed image capture and integration into 24MP+ vision systems operating across variable lighting conditions.

Features:

• 50mm fixed focal length
• Supports 1.2" (19.2mm) sensor formats
• IR-corrected for 400nm–1000nm (Visible to NIR)
• Ultra-high 24MP resolution, 2.5µm pixel support
• Manual focus with 0.5m–∞ range
• Interchangeable fixed apertures: F2.4 / F2.8 / F4 / F5.6 / F8
• C-Mount, compact Ø33 x 50.8mm housing
• Low TV distortion: 0.02%
• Center resolution: 200 lp/mm | Margin: 125 lp/mm
• Wide temperature range: -10°C to +50°C
• Lightweight: 70g

Applications:

• License plate recognition (LPR/ANPR)
• Traffic surveillance systems
• Machine vision and automation
• Aerial and geo-mapping imaging
• NIR-enabled inspection systems
• High-speed industrial cameras
• Day/night imaging in ITS or security
