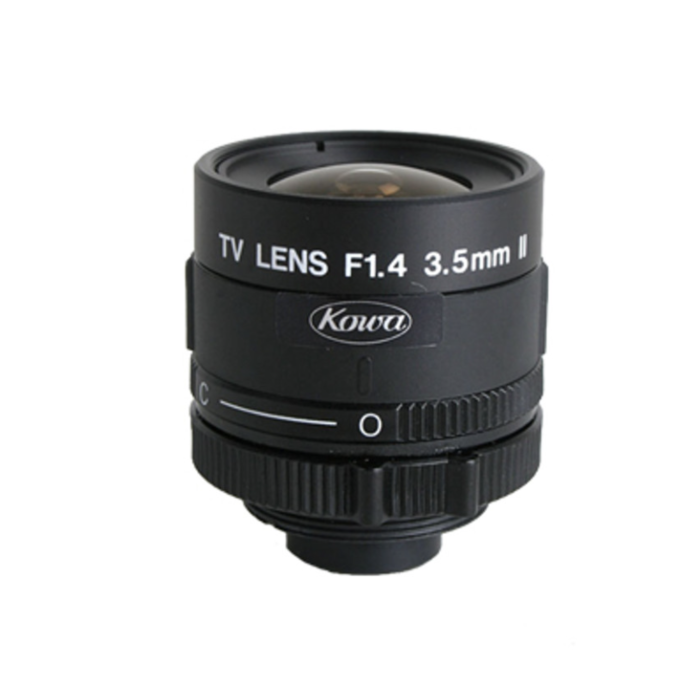

Kowa LM4NCR | 1/2" 3.5 mm Fixed Focal Manual Iris Lens
*Product is discontinued, Replacement Option: LM4NCL
Upgrade your industrial imaging with the Kowa LM4NCR lens. Perfect for machine vision applications, this lens ensures precise, high-quality images. Order now to enhance your imaging solutions!
Elevate Your Imaging with the Kowa LM4NCR 3.5 mm Fixed Focal Lens
The Kowa LM4NCR 1/2" 3.5 mm Fixed Focal Manual Iris Lens stands out in the realm of industrial and commercial applications, particularly in machine vision systems. Designed for high-performance imaging, this lens excels in both low light and bright conditions, thanks to its impressive aperture range of F1.4 to close. With a fixed focal length of 3.5 mm, the LM4NCR offers a wide angle of view (103.6° horizontal and 76.6° vertical) that captures expansive scenes with remarkable clarity.
This lens is particularly beneficial in settings that require precise imaging and consistency. It features a manual iris that allows users to adjust the aperture to their specific requirements, ensuring optimal exposure under varying lighting conditions. The fixed focal point ensures that the focus remains constant throughout its lifespan, eliminating the need for constant adjustments. This reliability is crucial for applications like quality control, robotics, and surveillance, where consistent imaging quality is paramount.
The Kowa LM4NCR lens is a solid choice for industrial environments, boasting durability with a temperature range of -10°C to +45°C and storage capabilities from -40°C to +60°C. Its compact design (weighing only 56g) and C-mount compatibility make it easy to integrate into existing systems, providing users with high-resolution images (100 lp/mm in the center and 40 lp/mm in the corners) and minimal optical distortion.
Features:
- Type: Fixed Focal Length Lens
- Focal Length: 3.5 mm
- Aperture Range: F1.4 - Close
- Minimum Focus Distance: 0.2 m
- Angle of View: 103.6° x 76.6°
- C-Mount Compatibility
- Weight: 56 g
- Temperature Range: -10°C to +45°C
- Resolution: Center 100 lp/mm, Corner 40 lp/mm
- Manual Iris Adjustment
Applications:
- Quality Control Systems
- Robotics and Automation
- Security and Surveillance
- Medical Imaging
- 3D Scanning and Measurement
- Packaging Inspection
- Automotive Inspection
- Food and Beverage Production
| Lens Type | Fixed Focal Length Lens |
| Image Size | 1/2" (6.4 x 4.8 x 8mm) |
| Focal Length | 3.5mm |
| Iris Range (F-Stop) | F1.4 - Close |
| Minimum Focus Distance | 0.2m |
| Mount | C-Mount |
| Angle of View 1/2" | 103.6 x 76.6 x 132.1° |
| Angle of View 1/3" | 77.0 x 57.7 x 97.5° |
| Field of View at M.O.D. 1/2" | 396 x 247 x 688mm |
| TV Distortion | -28.0% |
| Flange Back | 17.526mm in air |
| Back Focus | 8.89mm in air |
| Front / Rear Effective Diameter | Front Φ19.6mm / Rear Φ10.4mm |
| Exit Pupil Location | -71.4mm |
| Temperature Range | -10°C ~ +45°C |
| Storage Temperature Range | -40°C ~ +60°C |
| Resolution: Center / Corner | Center 100 lp/mm / Corner 40 lp/mm |
| Weight | 56g |
