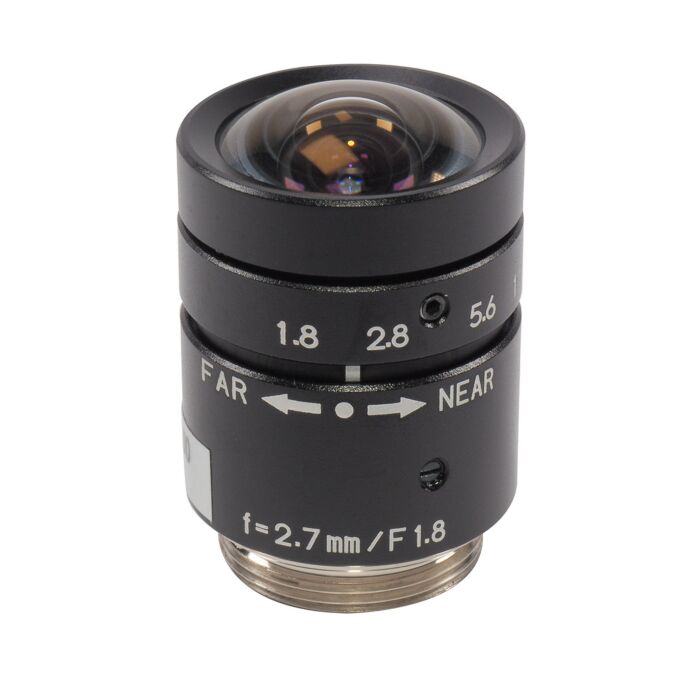

Kowa LM3NF | 1/3" 2.7mm NF-Mount Lens
Explore the Versatile Kowa LM3NF 2.7mm NF-Mount Lens for Industrial Applications
The Kowa LM3NF 2.7mm NF-Mount Lens stands out as an exemplary choice for industrial and machine vision applications. Designed for both versatility and durability, this lens features a compact, lightweight construction, ensuring ease of integration into various systems. With a megapixel resolution capability, it excels in delivering sharp, high-quality images that are critical for applications such as quality control, automated inspection, and robotic guidance.
Its metal housing and metal mount provide added robustness, making it ideal for environments where durability is essential. The manual control for focus and iris allows for precise adjustments, ensuring optimal performance across diverse settings. With a field of view measuring 262.7 mm horizontally and 167.8 mm vertically, users can capture a broad scene while maintaining detail and clarity.
The lens operates effectively within a temperature range of -10°C to +50°C, making it suitable for various industrial environments. Additionally, the locking screws for iris and focus enhance stability, ensuring that settings remain intact during operation. Choose the Kowa LM3NF lens for your machine vision needs and experience enhanced performance and reliability.
Features:
- Aperture Range: F-stop from 1.8 to 11
- Control: Manual focus and iris
- Field of View: 262.7 mm (horizontal), 167.8 mm (vertical)
- Back Focus: 7.83 mm
- Resolution: 100 lp/mm (center), 80 lp/mm (margin)
- Temperature Range: -10°C to +50°C
- Compact Size: Ø21 x 27 mm
- Weight: 30 g
Applications:
- Quality Control
- Automated Inspection
- Robotic Guidance
- Broadcast Imaging
- Precision Measurement
- Industrial Automation
- Packaging Inspection
- Surveillance Systems
| Aperture (F-stop) | 1.8 - 11 |
| Aperture (control) | Manual |
| Application field | Broadcast, Machine Vision |
| Back focus in air (mm) | 7.83 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 262.7 |
| Field of view at minimum working distance, vertical (mm) | 167.8 |
| Filter size (mm) | no |
| Focal length (mm) | 2.7 |
| Focus range (m) | 0.1 - ∞ |
| Mount | NF-mount |
| Pixel size (µm) | 4.5 |
| Resolution, centre (lp/mm) | 100 |
| Resolution, margin (lp/mm) | 80 |
| Sensor size | 1/3" |
| Series | NF |
| Size (mm) | Ø21 x 27 |
| TV distortion (%) | -7.3 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Peak Coating (400nm – 1000nm) |
| Weight (g) | 30 |
