Kowa LM3NC1M | 1/2" 3.5mm 2MP Lens
Kowa LM3NC1M 3.5mm 2MP Lens: Superior Performance for Industrial and Machine Vision Applications

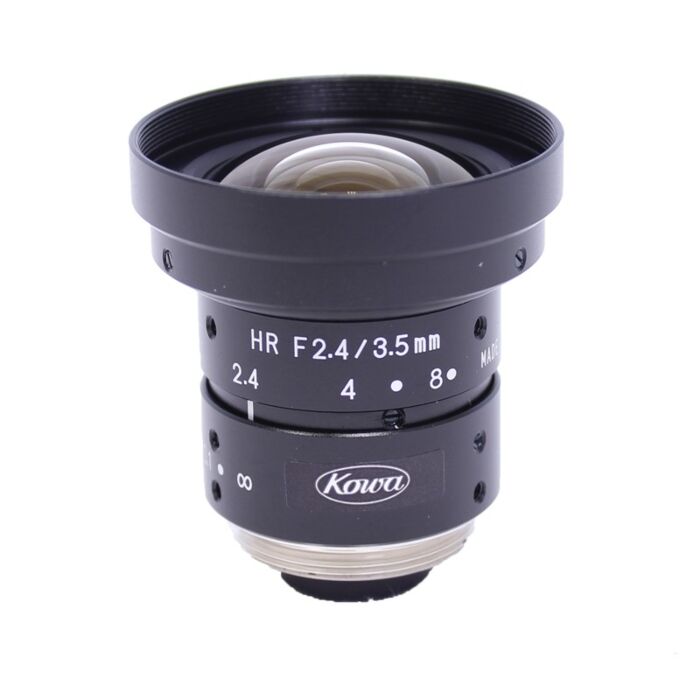

The Kowa LM3NC1M 1/2" 3.5mm 2MP lens is designed to meet the demanding requirements of machine vision and industrial applications. Offering low distortion (less than 0.4% TV distortion) and a wide angle of view, this lens provides excellent image clarity, from the center to the corners. Kowa’s floating mechanism design allows for high-resolution imaging, making it an ideal match for megapixel cameras.
Built to perform in tough environments, this lens is resistant to vibration and shock, ensuring durability and stability even in harsh industrial settings. The high transmission optics ensure consistent performance, even in low-light conditions, making it ideal for various inspection and monitoring systems. With a super wide optical design, the Kowa LM3NC1M delivers a broad field of view, which is essential for large-scale, high-precision industrial tasks. The fixed focal length at 3.5mm ensures sharp, distortion-free imagery, while the C-mount system allows for easy integration into most machine vision setups.
Whether for industrial inspection, factory automation, or robotics, the Kowa LM3NC1M provides unparalleled optical performance, making it a key component in high-end imaging systems. Order now from Aegis Electronic Group to enhance your vision system’s precision and reliability.
Features:
- 3.5mm fixed focal length
- Less than 0.4% TV distortion
- Wide field of view with super wide-angle optical design
- High transmission optics for low-light conditions
- Resistant to vibration and shock
- High-definition resolution across center and edges
Applications:
- Factory automation
- Industrial inspection systems
- Robotics and automation
- Surveillance and security monitoring
- High-precision machine vision setups
| Focal Length (mm) | 3.5 |
| Lens Type | Fixed |
| Image Size (mm) | 1/1.8" (Φ9) |
| Iris Range (F-stop) | F2.4 ~ F14 |
| Focusing Range (m) | 0.1 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 201(H) x 151(V) |
| Angle of View 1/2" (°) | 82.4 x 66.9 |
| Angle of View 1/3" (°) | 66.9 x 52.7 |
| Angle of View 1/1.8" (°) | 89 x 73.8 |
| Resolution (Center, Corner) | 120lp/mm, 100lp/mm |
| TV Distortion (%) | -0.5 (1/1.18") / 0.4 (1/2") |
| Back Focus in Air (mm) | 9.02 |
| Mount | C-Mount |
| Filter Thread Size (mm) | M40.5 x P0.5 |
| Minimum Focus Distance (m) | 0.10 |
| Size (mm) | Φ42 x 38.2 |
| Weight (g) | 85 |
| Temperature Range (°C) | -10 ~ +50 |
